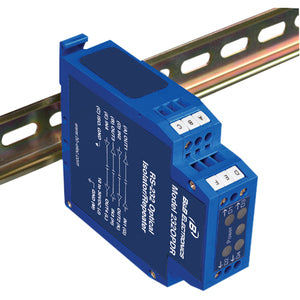

B+B SmartWorx RS-232 Isolated Repeater, DIN Rail

Meet the 232OPDR, a rugged DIN Rail mountable RS-232 optical isolator and repeater designed for harsh industrial environments. This compact device delivers robust galvanic isolation and reliable signal regeneration, ensuring your RS-232 networks stay safe from ground loops, voltage transients, and electrical noise. Ideal for factories, process automation, and control cabinets, the 232OPDR protects both equipment and operators while preserving the integrity of data transmissions over longer distances.

• High-voltage protection for sensitive gear: Provides up to 2000 V isolation for four RS-232 signal lines, safeguarding connected devices from damaging voltage spikes and ground potential differences. Each line remains electrically isolated, helping to prevent costly equipment damage.
• Duplex, four-line isolation: Two RS-232 signal lines in each direction are isolated, enabling true bidirectional communication with multiple devices without compromising line integrity or introducing ground loops.
• DIN Rail mounting for industrial setups: Designed for quick, secure installation inside control panels and cabinets. Its compact form factor fits neatly on standard DIN rails, simplifying deployment and future maintenance.
• Clear status indicators: Four LED indicators show data flow on each isolated line, while a dedicated power LED confirms the unit is powered and operational, making diagnostics fast and straightforward.
• Easy wiring with terminal block connections: All connections are made to a straightforward terminal block, providing reliable, tool-friendly wiring for rugged industrial environments and minimizing connection looseness over time.

Technical Details of B+B SmartWorx RS-232 Isolated Repeater, DIN Rail

• Model: 232OPDR (B+B SmartWorx RS-232 Isolated Repeater, DIN Rail)
• Function: Optical isolator and RS-232 repeater for improving signal integrity and protecting equipment
• Isolation: Up to 2000 V isolation per RS-232 signal line
• Channels: Four RS-232 signal lines, two in each direction (duplex isolation)
• Indicators: Four data-flow LEDs plus one power LED for at-a-glance status
• Connections: Terminal block wiring for simple, secure installation
• Mounting: DIN Rail compatible for easy integration into control panels
• Design: Optical isolation combined with line-repeater functionality to maintain robust data transmission

How to install B+B SmartWorx RS-232 Isolated Repeater, DIN Rail

• Choose a suitable position inside the equipment cabinet and mount the 232OPDR on a standard DIN rail, ensuring it is firmly seated.
• Prepare the RS-232 devices you will connect to the repeater and identify the four terminals on the block labeled for the isolated lines.
• Connect the RS-232 devices to the terminal block according to your wiring scheme, respecting TX and RX directions as required for your network design.
• Verify power availability and observe the power LED. If the LED does not illuminate, recheck the power connections and system power routing.
• Power up the system and monitor the four data-flow LEDs to confirm activity. Run a quick loopback or end-to-end test to ensure bidirectional communication is functioning as expected.

Frequently asked questions

• Q: What is the primary purpose of the 232OPDR?
  A: It provides galvanic isolation and signal regeneration for RS-232 links, protecting equipment and operators while maintaining reliable duplex communication in industrial environments.
• Q: How many RS-232 lines are isolated?
  A: Four RS-232 signal lines are isolated, with two lines in each direction, delivering full duplex functionality.
• Q: What kind of isolation does it offer?
  A: The device delivers up to 2000 V isolation per signal line, helping prevent ground loops and voltage transients from affecting data integrity.
• Q: How do I know the unit is active?
  A: The unit features four data-flow LEDs and a power LED. If the power LED is on and the data LEDs indicate activity, the repeater is operating correctly.
• Q: How should I wire it in a system?
  A: Install the 232OPDR on a DIN rail, connect the RS-232 devices to the terminal block as per your network wiring design, and power the unit. Verify operation with end-to-end testing.
• Q: Is this suitable for harsh industrial environments?
  A: Yes. The DIN-rail form factor and optical isolation are designed to protect critical serial links in challenging environments with electrical noise and transients.
