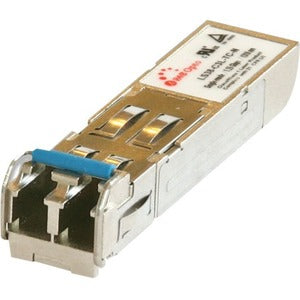

B+B SmartWorx SFP Module, 1000Base-LX, SM 10Km

Introducing the B+B SmartWorx SFP Module, a robust 1000Base-LX long-range transceiver designed to power industrial Ethernet networks with dependable fiber connectivity. This single-mode fiber SFP module supports link distances up to 10 kilometers, enabling you to bridge remote devices, switch stacks, or edge hardware without sacrificing performance or reliability. Built to operate in demanding environments, it integrates with your existing SFP ports on B+B SmartWorx switches and compatible network gear, offering a seamless upgrade path for extending fiber links or upgrading legacy copper connections. The LX transceiver uses the 1310 nm wavelength to minimize attenuation over long fiber runs, delivering stable, low-latency performance for time-sensitive applications such as distributed control systems, industrial IoT gateways, and campus-to-edge networks. With its compact, hot-swappable form factor, technicians can replace or upgrade modules without downtime, preserving critical network service levels. The module’s design adheres to the SFP MSA standard, ensuring interoperability with a broad ecosystem of 1 Gbps SFP ports, so you can deploy across multi-vendor environments while maintaining procurement flexibility. Whether you’re building an industrial campus backbone, extending a factory floor to remote sensor arrays, or linking dispersed data collection nodes, this 1000Base-LX SFP module delivers a reliable, scalable fiber link you can trust for years to come.

• Long-range, high-performance 1000BASE-LX transceiver: supports single-mode fiber up to 10 kilometers, enabling reliable gigabit links across campuses, industrial campuses, and factory environments without the need for repeaters or additional equipment. The 1310 nm wavelength is optimized for low attenuation over long distances, providing solid signal integrity and consistent throughput for bandwidth-intensive applications.
• Compact, hot-swappable SFP form factor: plugs into standard SFP ports on B+B SmartWorx switches and many third-party devices with SFP slots. This design minimizes downtime during upgrades or maintenance, allowing technicians to swap modules quickly without powering down the entire system and maintaining uptime for critical industrial processes.
• Industrial-grade reliability and rugged design: engineered for harsh environments common in manufacturing floors and outdoor installations. The module resists vibration, dust, and electrical noise, helping to keep networks stable in challenging conditions and reducing field service requirements over the product’s life cycle.
• Wide compatibility and seamless integration: built to work with 1000BASE-LX SFP ports across a broad range of equipment. When used with B+B SmartWorx devices, it delivers optimal interoperability, and it remains compatible with other SFP-compatible switches that support LX transceivers, ensuring flexible deployment in multi-vendor networks while preserving performance.
• Efficient performance with low latency: designed to deliver steady gigabit throughput with minimal latency, supporting real-time monitoring, automation, and control workflows. The module helps optimize network performance for critical industrial applications, supporting reliable data collection and fast response times in distributed systems.

Technical Details of B+B SmartWorx SFP Module, 1000Base-LX, SM 10Km

• Data rate: 1000 Mbps (1 Gbps) full-duplex Ethernet
• Fiber type: Single-Mode Fiber (SMF)
• Wavelength: 1310 nm
• Connector: LC duplex
• Distance: Up to 10 km (link distance dependent on fiber and installation conditions)
• Form factor: SFP hot-swappable transceiver
• Standards: SFP MSA compliant; supports standard 1000BASE-LX interfaces
• Compatibility: Designed for use with SFP ports on B+B SmartWorx devices and compatible third-party switches

How to install B+B SmartWorx SFP Module

• Power down the network device or confirm that the SFP port supports hot-swapping if your equipment allows it.
• Locate an available SFP port on the switch or router and verify that it is labeled for 1000BASE-LX or LX transceivers.
• Remove the protective cover from the SFP module and align the module with the SFP slot, ensuring the connector faces the slot correctly.
• Gently insert the SFP module until it is firmly seated and you hear or feel a click indicating proper engagement.
• Connect the fiber optic patch cable to the LC duplex connector, ensuring a clean, undisturbed connection. Use footprints with correct polarity to match the transceiver and fiber path.
• Secure the fiber connectors and verify link status on the device’s management interface. If applicable, enable or verify 1 Gbps operation and VLAN settings as part of your network configuration.
• Power on the device (if you powered down) and monitor the port for a stable link and activity indicators. Perform a basic throughput test to confirm expected performance.

Frequently Asked Questions

• Q: What is the data rate of this SFP module? A: It supports 1 Gbps (1000 Mbps) full-duplex Ethernet, suitable for gigabit networks.
• Q: How far can the link extend with this module? A: Up to 10 kilometers on single-mode fiber, with actual distance depending on fiber quality, connectors, and environmental conditions.
• Q: Is this module compatible with other brands? A: Yes. As a 1000BASE-LX SFP, it is compatible with many brands that support the SFP form factor and LX transceivers. Always verify compatibility with your specific device model and firmware.
• Q: Do I need any special tools to install? A: No special tools are required beyond proper handling of fiber optic cables and ensuring clean, dust-free connectors. Power down if hot-swapping is not supported by your device, otherwise you can replace without powering down.
• Q: Can I use this module in multi-vendor networks? A: Yes, in most cases. The SFP module adheres to standard SFP specifications, enabling cross-brand deployments. For guaranteed interoperability, check with the device manufacturers’ compatibility notes.
