Description

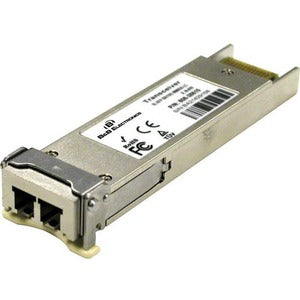

B+B SmartWorx XFP Module
The B+B SmartWorx XFP Module is a high-performance 10 Gigabit Ethernet transceiver designed for optical networks and data networking environments where reliability, long-reach capability, and robust diagnostics matter. Built to support 10GBase-ER standards, this XFP module uses a single-mode fiber link with an LC duplex optical interface to deliver clear, low-latency connectivity across campuses, data centers, and industrial sites. With digital diagnostics monitoring (DDM) built in, network engineers can proactively manage link health, monitor temperature and laser bias, and capture critical transmission statistics to optimize performance and uptime. This makes the XFP Module an ideal choice for environments that require durable, enterprise-grade fiber connectivity, seamless integration with existing network gear, and scalable performance to handle growing traffic demands. Whether you’re upgrading an uplink between core switches, extending a metro link, or provisioning a high-speed connection in an industrial control network, the B+B SmartWorx XFP Module delivers consistent, reliable service with a compact, field-proven form factor.
- High-speed 10GBase-ER capability enables 10 Gigabit Ethernet over long-reach single-mode fiber, supporting link distances up to approximately 40 km depending on fiber type and link budget, making it ideal for data center interconnects and long-distance backbone connections.
- Digital Diagnostics Monitoring (DDM) provides real-time visibility into critical transceiver parameters such as temperature, supply voltage, optical modulation, laser bias current, and optical received signal power, allowing proactive maintenance and faster fault isolation.
- LC duplex optical interface simplifies integration into a wide range of switches, routers, and media converters that support XFP/SFP-family modules, delivering a familiar and flexible plug-and-play installation for network engineers.
- Single-mode fiber compatibility with a broad spectrum of fiber types ensures versatile deployment options across existing fiber infrastructures, from urban campus networks to remote industrial locations with harsh environments.
- Industrial-standard small form factor and rugged design support reliable operation in demanding installations, including temperature variations and power fluctuations, while maintaining consistent performance and long-term availability.
Technical Details of B+B SmartWorx XFP Module
- Form Factor: XFP transceiver module for standard XFP slots
- Connector: LC duplex optical interface
- Wavelength/Standard: 10GBase-ER for extended-reach 10 Gigabit Ethernet
- Fiber Type: Single-mode fiber recommended for long-haul links
- Data Rate: 10 Gbps, optimized for high-throughput network links
- Reach: Up to ~40 km (distance dependent on fiber type and network margins)
- Diagnostics: Digital Diagnostics Monitoring (DDM) for real-time health monitoring
- Applications: Optical networks, data networking, enterprise and data-center interconnects, and industrial networking
- Environmental Robustness: Designed for industrial-standard operation in varied conditions
How to install B+B SmartWorx XFP Module
- Power down the host device and unplug any connected network equipment to prevent ESD or damage during installation.
- Identify a compatible XFP slot in your switch, router, or media gateway that accepts XFP transceivers with an LC duplex interface.
- Gently align the XFP module with the slot and insert it fully until it is seated and the locking mechanism confirms a secure connection.
- Insert a single-mode LC duplex fiber patch cord into the LC duplex connector on the XFP module, ensuring clean, dry fiber ends and proper fiber polarity for your link.
- Power up the device, verify link status, and access the device’s management interface to confirm DDM readings, link quality, and operational status. If necessary, configure any required interface parameters (speed, duplex, or VLAN settings) to complete the uplink.
Frequently asked questions
- What is the B+B SmartWorx XFP Module used for? The XFP Module is a high-speed transceiver designed to provide 10GBase-ER connectivity over single-mode fiber. It is used to connect devices such as switches, routers, and media converters in optical networks and data networking environments where long-reach, reliable links are required. Its compact XFP form factor and LC duplex interface make it a flexible choice for many enterprise and industrial deployments.
- What is Digital Diagnostics Monitoring (DDM) and why is it important? DDM is a built-in feature that continuously monitors key transceiver parameters, including temperature, supply voltage, laser bias current, optical power, and received signal quality. This enables proactive fault detection, easier troubleshooting, and better network uptime by allowing administrators to track device health and preemptively address issues before they impact performance.
- Is this module compatible with my device? The XFP Module is designed for devices that support XFP-style transceivers with LC duplex connectors. Compatibility depends on the host hardware’s slot type and firmware. Always verify vendor-specific compatibility and required firmware versions before installation to ensure proper operation.
- What fiber type should I use with this transceiver? This module is intended for single-mode fiber, which supports long-distance links with lower attenuation. Use appropriate single-mode fiber cables and corresponding connectors, and ensure proper polishing and cleaning of fiber ends for optimal performance and reliability.
- How far can I run the link with this module? In typical installations using 10GBase-ER, you can reach up to about 40 kilometers on standard single-mode fiber, subject to fiber quality, connectors, splices, and transceiver margin. For shorter distances or different fiber types, lower-reach configurations may apply.
