Description

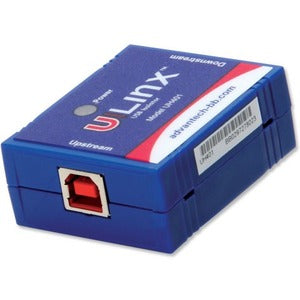

B&B USB TO USB 1 PORT ISOLATOR - 2KV
The B&B USB to USB 1-Port Isolator at 2 kV is a compact, in-line solution designed to protect expensive equipment and preserve data integrity in electrically noisy environments. Built for industrial and laboratory use, this isolator sits between your USB host and device, providing galvanic isolation that guards against ground loops, electrical transients, and voltage spikes that can otherwise compromise performance or damage critical hardware. In today’s connected workflows—ranging from industrial automation to precision measurement—the UH401-based 2 kV isolator delivers reliable, plug-and-play protection without sacrificing USB compatibility or data throughput. Its robust construction, high-retention USB connectors, and streamlined form factor make it an ideal upgrade for any setup where clean signals and equipment longevity matter. If you rely on USB devices in environments prone to electrical interference or ground potential differences, this 2 kV isolator is the practical, cost-effective choice to maintain reliable operation and data integrity.
- The 2 kV galvanic isolation rating provides a strong barrier between host and peripheral, mitigating dangerous ground loops and isolating sensitive instrumentation from voltage transients. This isolation not only protects hardware but also helps ensure clean, noise-free data transmission across USB links. Whether you’re connecting sensors, data loggers, or control modules, the isolator helps prevent the kind of cross-ground contamination that can lead to device resets, corrupted data, or unexpected behavior in your USB network.
- Compact, in-line design with high-retention USB connectors offers a rugged, space-saving solution for tight enclosures, racks, or control panels. The inline form factor makes it easy to integrate into existing USB wiring without redesigning cables or adapters. The high-retention connectors secure your connections during vibration or movement in industrial settings, reducing the risk of intermittent disconnects that can derail measurements or automation processes.
- USB compatibility backed by practical, real-world performance. The isolator is designed to work with standard USB devices, maintaining compatibility with USB 2.0 specifications and supporting common data rates used by peripherals such as data loggers, medical devices, and automation modules. This means you can preserve plug-and-play simplicity while gaining the protective benefits of isolation, without needing additional drivers or complex configuration.
- Durable construction suited for demanding environments. The isolator’s rugged, compact build is intended to withstand industrial use, frequent cable attachment/detachment, and routine maintenance. By isolating the USB link, it also helps minimize the impact of surrounding electrical noise—such as motor drives, relays, and high-current equipment—on the accuracy and reliability of USB-based data collection and control.
- Versatile application across industries. Whether you’re deploying USB devices in industrial automation, lab instrumentation, environmental monitoring, or medical equipment setups, this 2 kV USB isolator helps protect both the host computer and the connected device. With its straightforward, plug-and-play operation, it enables safer, more reliable USB connections in environments where noise and ground differences are common concerns.
Technical Details of B&B USB TO USB 1 PORT ISOLATOR - 2KV
- Isolation rating: 2 kV galvanic isolation between the USB host and USB device to protect equipment and data streams from ground loops and transient voltages.
- USB interface: USB 2.0 compatible, supporting standard USB signaling and data rates appropriate for common USB peripherals involved in control, data logging, and instrumentation tasks.
- Port configuration: Inline device with one upstream USB port for the host connection and one downstream USB port for the peripheral, using high-retention USB connectors to ensure secure mating in challenging environments.
- Construction: Compact, inline module designed to minimize footprint while delivering robust isolation performance; optimized for rack, cabinet, and bench setups where space is at a premium.
- Environmental fit: Built for industrial and lab environments where electrical noise, ground differences, and vibration can impact USB reliability; enhances data integrity and equipment protection without altering system software.
- Compatibility notes: Works with standard USB devices and hosts; does not require special drivers or software, ensuring a straightforward plug-and-play experience in the field or in the lab.
How to install B&B USB TO USB 1 PORT ISOLATOR - 2KV
Installing the 2 kV USB isolator is a straightforward, tool-free process designed to preserve your existing USB setup while adding vital protection. Follow these simple steps to integrate the isolator into your system:
- Power down the host computer or device and unplug any connected USB peripherals to prevent unexpected electrical activity during installation.
- Identify the upstream (host side) USB connection and the downstream (device side) USB connection on the isolator. The module is designed for a single upstream and a single downstream port, so confirm the orientation before connecting.
- Connect the isolator’s upstream USB port to your host computer or control PC using a standard USB cable. Ensure the connection is secure and seated fully to maximize signal integrity.
- Connect the isolator’s downstream USB port to the target peripheral (sensor, data logger, instrument, etc.) using another standard USB cable. Verify that both cables are fully seated and routed to minimize strain or accidental disconnections during operation.
- Power on the system and verify operation. In most cases, the host OS should recognize the connected USB device without additional software. If you encounter connection issues, re-check cable seating and ensure the cables are within the environment’s electrical noise tolerance.
- For additional reliability, route cables away from high-power circuits and rotating machinery where possible, and keep cable lengths reasonably short to reduce susceptibility to interference. The inline isolator is designed to be placed in a protected position within your enclosure to maximize durability during daily use.
Frequently asked questions
- What is the primary purpose of the B&B USB 1-Port Isolator? It provides galvanic isolation between a USB host and a USB device to prevent ground loops, reduce electrical noise, and protect sensitive equipment while preserving data integrity during USB communication.
- What isolation level does this device offer? The isolator delivers 2 kV of galvanic isolation, creating a strong barrier against voltage transients and potential ground differences that can impact performance or damage hardware.
- Is it compatible with USB 2.0 devices? Yes, it is designed to be compatible with USB 2.0 devices and supports typical USB signaling used by common peripherals in industrial and lab environments.
- Do I need special drivers or software? No. The isolator is plug-and-play and does not require special drivers. It operates transparently between the host and the device.
- Can I use this isolator in noisy industrial environments? Yes. The design emphasizes robustness and reliability in electrical noise environments, helping to maintain data integrity and reduce resets or communication errors caused by interference.
- Can I mount or route the isolator in a rack or panel? Its compact, inline form factor is intended for easy integration in tight spaces, with cables routed to minimize stress and interference.
