Description

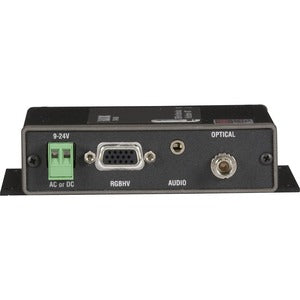

The AC1021A-XMIT Video Extender from Black Box is a premium, enterprise-grade solution designed to deliver pristine RGBHV video and stereo audio over fiber. Built to integrate seamlessly with the Black Box RGBHV/Stereo-Audio fiber extender family, this transmitter unlocks flexible, scalable configurations for any installation—from classrooms and boardrooms to control rooms and broadcast environments. Its interoperability means you can mix and match transmitters and receivers across the same product family, empowering you to design systems that fit your exact layout without sacrificing signal quality or reliability. If you need a long-haul, EMI-free link that preserves color accuracy, sync integrity, and audio fidelity, the AC1021A-XMIT is engineered to perform under pressure, day in and day out.
- Interoperability across the Black Box fiber extender family. The AC1021A-XMIT is designed to pair with any compatible RGBHV/Stereo-Audio fiber extender transmitter or receiver, allowing you to assemble complex networks by mixing devices from the same family. This flexibility makes upgrades, expansions, and reconfigurations straightforward, reducing downtime and future-proofing your installation.
- Crystal-clear RGBHV video and stereo audio over fiber. By transmitting signals over fiber, you gain immunity to electrical noise, crosstalk, and EMI, ensuring consistent color fidelity, sharp edges, and accurate luminance even in environments with strong interference. The result is dependable video performance and pristine audio reproduction across long distances.
- Long-distance capability with superior signal integrity. Fiber-optic links enable substantial reach between source and display without degradation, enabling centralized media distribution, multi-room viewing, or campus-wide video networks while maintaining the same high quality as locally connected systems.
- Plug-and-play reliability for fast deployments. The AC1021A-XMIT prioritizes quick installation with minimal configuration. Its straightforward wiring, category-agnostic compatibility, and no-driver requirements let you set up and commission systems rapidly, reducing project timelines and technician on-site time.
- Rugged, professional-grade construction for demanding environments. Designed for daily use in educational facilities, corporate settings, production studios, and data centers, this extender provides durable operation, reliable performance, and a form factor that fits standard rack or shelf installations.
Technical Details of AC1021A-XMIT
- Product type: Video Extender Transmitter (RGBHV + Stereo Audio) for fiber-optic links
- Interoperability: Compatible with Black Box RGBHV/Stereo-Audio fiber extender transmitters and receivers
- Signals carried: RGBHV video and stereo audio over a single fiber link
- Link medium: Fiber optic connection for EMI immunity and long-distance transmission
- Ideal applications: Educational facilities, broadcast control rooms, conference spaces, security centers, and data-center environments seeking reliable, high-quality video distribution
How to install AC1021A-XMIT
- Step 1: Connect the RGBHV video source to the transmitter input and connect the stereo audio source to the corresponding audio input on the AC1021A-XMIT. Ensure all connectors are securely seated and aligned with the signaling standards of your device.
- Step 2: Attach a fiber-optic cable from the transmitter to the designated receiver in your network. Use proper fiber handling procedures, avoid excessive bending radii, and keep joiners and connectors clean to preserve signal quality.
- Step 3: Position the receiver near the display or processing device, connect the receiver’s output to the display/input device, and verify that the video and audio paths are correctly routed through the system.
- Step 4: Power on both transmitter and receiver units, then check status indicators to confirm link integrity. If LEDs indicate no link, recheck fiber connections, source formats, and cable integrity, ensuring that all devices in the chain are powered and correctly configured.
- Step 5: Perform a basic test sequence with the actual content you plan to use to verify color accuracy, syncing, and audio alignment across the entire chain. Document the setup for future maintenance, noting any device pairings and fiber segments used in the installation.
Frequently asked questions
- What is the primary purpose of the AC1021A-XMIT? It serves as a transmitter in a fiber-based RGBHV video and stereo audio extender system, enabling long-distance, high-quality transmission between source equipment and displays or processing devices while preserving signal integrity.
- Can I mix transmitters and receivers from different brands? The AC1021A-XMIT is designed to work within the Black Box RGBHV/Stereo-Audio fiber extender ecosystem. For best results, use it with compatible Black Box transmitters and receivers to ensure optimal performance and interoperability.
- Is driver software required for operation? No, the system is designed for plug-and-play deployment. It relies on standard video and audio interfaces and a straightforward fiber link, minimizing setup complexity and maintenance.
- What environments benefit most from this extender? Environments with electrical noise, long cable runs, or the need for centralized video distribution—such as classrooms, training centers, control rooms, broadcast facilities, and corporate environments—will see significant advantages in signal reliability and quality.
- What maintenance considerations are important? Regular inspection of fiber connectors, careful handling of cables to avoid stress, and verifying link LEDs during commissioning will help maintain peak performance and minimize downtime.
