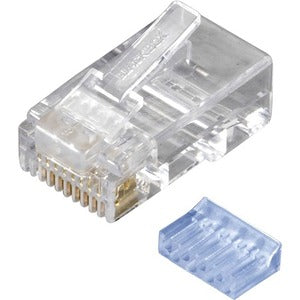

Black Box Cat.6 Modular Plug – High-Performance Ethernet Termination for EMI/RFI Environments

Designed for reliable, gigabit-ready Ethernet terminations, the Black Box Cat.6 Modular Plug delivers robust performance in challenging environments. This eight-conductor plug is ideal for 100Base-TX and 1000Base-T applications, offering dependable connectivity in spaces with elevated EMI/RFI. By combining Cat6-grade specifications with flexible cable compatibility, it simplifies installation while helping you maintain optimal signal integrity across your network.

• Designed for 100Base-TX and 1000Base-T networks, delivering dependable performance for both Fast Ethernet and Gigabit Ethernet applications.
• Ideal for areas with high EMI/RFI, helping maintain signal quality even when interference is present in the installation environment.
• Plugs meet or exceed Cat6 specifications, ensuring compatibility with standard Cat6 cabling and providing solid performance margins for current and future networks.
• Terminate 24/26 AWG solid or stranded cable with these eight-conductor plugs, offering flexibility to accommodate common field cabling scenarios.
• Includes a conductor load bar for termination, simplifying the crimping process and helping ensure consistent, reliable connections.

Technical Details of Black Box Cat.6 Modular Plug

• Category: Cat6 modular plug designed for Ethernet terminations
• Network compatibility: Supports 100Base-TX and 1000Base-T applications
• Cable compatibility: Terminates 24 AWG or 26 AWG solid or stranded copper cable
• Conductor count: Eight-conductor plug for standard Cat6 wiring schemes
• Performance: Meets or exceeds Cat6 specifications to ensure reliable gigabit performance
• Included accessories: Conductor load bar to assist with termination and maintain alignment

How to install Black Box Cat.6 Modular Plug

• Prepare the cable by selecting the appropriate 24 or 26 AWG solid or stranded conductor type and stripping the jacket to expose the conductors.
• Untwist and arrange the eight conductors in the correct order per your network standard, ensuring each wire is cleanly aligned for insertion into the plug.
• Insert a conductor load bar to guide the conductors into position and help ensure proper termination alignment.
• Crimp or terminate the plug using your recommended tool, making sure the plug seats securely and all wires are fully seated within their respective terminals.
• Inspect the termination for proper seating, trim any excess conductor length if needed, and test the connection to confirm continuity and signal integrity.

Frequently asked questions

• Q: What cable types does the Black Box Cat.6 Modular Plug support? A: It terminates 24 AWG or 26 AWG, solid or stranded copper Ethernet cable designed for Cat6 performance.
• Q: Is this plug suitable for high-interference environments? A: Yes. It is designed for use in areas with high EMI/RFI to help maintain signal integrity for Cat6 networks.
• Q: Which network speeds does this plug support? A: It is designed for 100Base-TX and 1000Base-T Ethernet applications, providing versatility for legacy and modern networks.
• Q: Does the plug meet Cat6 specifications? A: The product is stated to meet or exceed Cat6 specifications, ensuring compatibility with Cat6 cabling and performance expectations.
