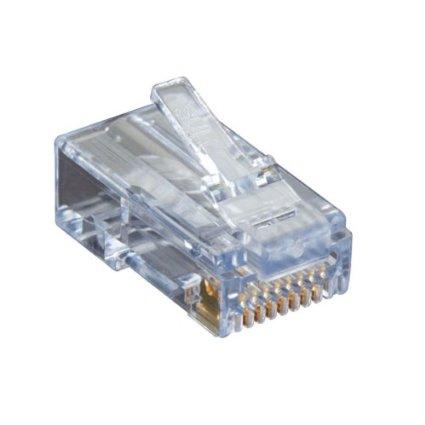

Black Box CAT6 EZ RJ45 Modular Plug Connector - Unshielded, TAA 100-Pack

Meet the Black Box CAT6 EZ RJ45 Modular Plug Connector, a purpose-built solution crafted for professionals who demand fast, reliable terminations on Cat6 cabling. This unshielded, customer-ready plug is designed to simplify field installations without sacrificing performance, delivering consistent terminations across high-volume deployments. With a 100-pack, you’ll have ample connectors on hand for large projects, service calls, or ongoing network upgrades. Built to support standard Ethernet configurations, these EZ RJ45 plugs help you close the loop on cable runs with confidence, reducing rework and ensuring dependable signal integrity from patch panel to workstation.

• EZ termination design: Streamlined installation for Cat6 cable reduces tool time and hesitations, promoting faster terminations with repeatable results.
• Unshielded CAT6 compatibility: Specifically engineered for unshielded twisted pair (UTP) Cat6 cabling, delivering solid performance for gigabit networks and beyond.
• 8P8C modular plug: Standard 8-position, 8-conductor interface ensures compatibility with common RJ45 jacks and patch panels used in business and home networks.
• 100-pack for bulk projects: A generous supply that keeps job sites or service teams stocked while reducing the need for frequent reorders.
• TAA-compliant: Meets Trade Agreements Act requirements for government and enterprise procurement, expanding its suitability for formal deployments.

Technical Details of Black Box CAT6 EZ RJ45 Modular Plug Connector - Unshielded, TAA 100-Pack

• Product type: Unshielded CAT6 EZ RJ45 modular plug connector (8P8C)
• Cable compatibility: Cat6 UTP copper cable, designed for standard 23- to 24-gauge conductors
• Termination: EZ termination design for quick seating and reliable seat depth with minimal effort
• Contacts: Gold-plated contacts (where applicable) to resist corrosion and help maintain signal integrity through repeated insertions
• Pack size: 100 connectors per pack, ideal for bulk installations and ongoing network upgrades
• Compliance: TAA-compliant for government procurement and enterprise deployments
• Application: Suitable for indoor networking projects including office, data centers, labs, and education environments
• Standard compatibility: Works with standard Cat6 networking components, including patch panels, keystone jacks, and RJ45 jacks

how to install Black Box CAT6 EZ RJ45 Modular Plug Connector

• Prepare the cable: Begin by stripping back the outer jacket of the Cat6 cable to expose the twisted pairs. Maintain enough jacket length to anchor the connector securely. Separate and straighten the individual wires, keeping them orderly to prevent tangling during the insertion process.
• Arrange conductors in the correct order: For most standard installations, arrange the 8 conductors according to the chosen wiring scheme (TIA/EIA-568-A or -B). Align them in the appropriate color sequence before insertion to ensure proper termination and to avoid crossovers or miswiring.
• Trim conductors to proper length: Trim each conductor to the recommended length so all wires reach the termination surface without excess slack. Uniform wire length helps achieve consistent seating and reliable contact with the plug's termination points.
• Insert into the EZ RJ45 plug: Carefully insert the prepared wires into the plug, ensuring each conductor sits fully within its respective slot. The EZ mechanism is designed to guide conductors into place with minimal resistance; confirm that there are no stray strands or misaligned wires.
• Seat and crimp: Once all conductors are fully seated, use a compatible crimping tool to secure the plug. Apply even pressure to ensure the terminals pierce insulation and establish a solid connection. Remove any trimming or excess material from the plug surface and verify the seating depth.
• Inspect and test: Visually inspect the termination for uniform seating and straight conductors. Use a cable tester to confirm continuity, pair integrity, and absence of opens or shorts. If testing fails, re-terminate with proper conductor alignment and seating.
• Label and document: For larger deployments, label terminated cables at both ends and document the wiring scheme to facilitate future troubleshooting and maintenance.
• Best practices: Maintain proper bend radii during cabling runs, avoid excessive force on the plug, and store spare connectors in a clean, dry environment to preserve performance and longevity.

Frequently asked questions

• Q: What is included in the 100-pack? A: The 100-pack consists of unshielded CAT6 EZ RJ45 modular plug connectors designed for field termination on Cat6 cable. Each pack contains 100 individual plugs ready for installation.
• Q: Is this connector suitable for Cat5e cables? A: While designed for Cat6 networks, these unshielded RJ45 plugs can be used with Cat5e cables in many cases. However, for optimum performance, use Cat6-rated components throughout the link.
• Q: Are these plugs shielded? A: No—these are unshielded (UTP) CAT6 plugs, intended for environments where shielded cabling is not required or not available.
• Q: What cable gauge is recommended? A: The connectors are designed for standard Cat6 copper conductors, typically 23- to 24-gauge. Always verify compatibility with your specific cable supplier’s specifications.
• Q: Is the product compliant with industry standards? A: Yes, the product is designed to meet or exceed common Cat6 performance requirements and is TAA-compliant for procurement in government and enterprise environments.
• Q: What bandwidth and speeds can I expect? A: Cat6 cabling supports up to 1 Gbps for standard Ethernet distances (up to 100 meters) and up to 10 Gbps on shorter runs (up to about 55 meters for this category of cabling). The plug itself does not define bandwidth; it enables reliable termination to achieve network performance consistent with Cat6 specifications.
