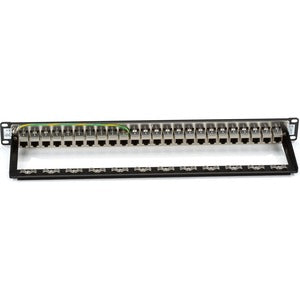

Black Box CAT6 Patch Panel - Feed-Through, 1U, Shielded, 24-Port
Elevate your data center or office network with the Black Box CAT6 Patch Panel - Feed-Through. Engineered for demanding environments, this 24-port, 1U patch panel delivers high-density connectivity in a rugged, shielded chassis designed for standard 19" racks. Its feed-through design streamlines cabling workflows by aligning the backbone and patch cables in a single, organized interface, reducing clutter and improving traceability across complex networks. Ideal for data centers, server rooms, and enterprise network cabinets, this patch panel ensures reliable signal integrity, easy management, and scalable growth as your network expands. The Black Box patch panel blends durability with performance, offering a clean, professional look while supporting modern Cat6 cabling standards for fast, stable connections. Whether you’re provisioning a new infrastructure or upgrading an existing one, you’ll appreciate the efficient cable management, EMI shielding, and straightforward installation that this patch panel provides.
- High-density 24-port design in a compact 1U footprint, optimizing space in crowded racks while providing ample front-facing patch points for quick cable changes and flexible network topology.
- Feed-through connectivity with rear-term terminations paired with front RJ45 ports, enabling streamlined cabling workflows that simplify moves, adds, and changes (MACs) in busy data centers and office environments.
- Shielded, metal housing minimizes electromagnetic interference (EMI) and crosstalk, preserving signal quality in densely cabed racks and near power cabling, switches, and storage devices.
- 19" rack compatibility with a durable black finish that blends into standard equipment racks, providing robust protection against dust, bending, and minor impacts while maintaining a professional appearance.
- Cat6 compliant and backward-compatible with Cat5e, delivering reliable performance for gigabit networks and higher speeds, while supporting clean, organized cable management for scalable deployments.
Technical Details of Black Box CAT6 Patch Panel - Feed-Through, 1U, Shielded, 24-Port
- Ports: 24 RJ45 (front) with rear feed-through terminations for structured cabling
- Category: Cat6 compliant, designed for high-speed Ethernet applications with bandwidth suitable for modern workloads
- Shielding: Shielded metal chassis to reduce EMI and maintain signal integrity in noisy environments
- Form Factor: 1U height, 19" rack-mountable for standard data center racks
- Material: Heavy-duty steel construction for durability and long-term reliability in busy equipment rooms
- Finish: Black powder-coated exterior for corrosion resistance and a clean, professional look
- Rear Terminations: Feed-through design to simplify backbone cable routing and port naming on the front
- Front Access: Standard RJ45 ports arranged in a 24-port array to support straightforward patching and labeling
- Compliance: Cat6 performance with shielded construction; suitable for structured cabling deployments in enterprise environments
How to install Black Box CAT6 Patch Panel - Feed-Through, 1U, Shielded, 24-Port
- 1. Prepare the rack: Ensure the 19" rack is clean, level, and capable of supporting the 1U panel with adequate cable management clearance. Gather screws, a screwdriver, and labeling tools.
- 2. Mount the panel: Position the patch panel in the desired rack location and secure it with the supplied rack screws. Verify that the front panel is accessible for patching and labeling during operation.
- 3. Route backbone cables: Plan and route backbone (back-end) cables to the rear feed-through terminations. Maintain proper bend radii and avoid excessive tension to preserve connector integrity.
- 4. Terminate and organize: Terminate the rear cables into the feed-through connectors according to your organization’s labeling scheme. Use cable ties or Velcro straps to secure cables and keep the front panel tidy for easy access.
- 5. Connect and test: Attach patch cables from the front ports to switches, routers, or devices as needed. Label each port for quick identification and use a cable tester to verify continuity, pair integrity, and shielding effectiveness across all 24 ports.
Frequently asked questions
- What is a feed-through patch panel? A feed-through patch panel provides rear-term connections for backbone cabling and front-facing RJ45 ports for patch cables. This arrangement simplifies cable routing, improves organization, and speeds up moves, adds, and changes in busy networks.
- How many ports does this patch panel have? It features 24 front-facing RJ45 ports, allowing dense connectivity in a compact 1U form factor.
- Is it shielded? Yes. The panel is built with a shielded metal housing to reduce EMI and maintain signal integrity in environments with electrical noise and dense cabling.
- Is the panel compatible with Cat5e cables? The patch panel is Cat6 compliant and backward-compatible with Cat5e installations, making it suitable for mixed or evolving networks while delivering improved performance where Cat6 is deployed.
- What kind of rack should I use? This patch panel is designed for standard 19" racks and is 1U high, ensuring compatibility with most data center or office racks. Always confirm your rack depth and cable management capability before installation.
