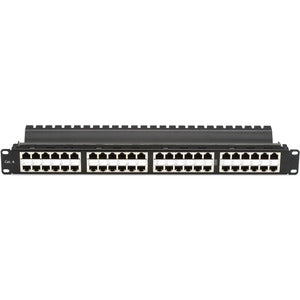

Black Box 48-Port Shielded Cat6 Patch Panel (1U, Feed-Through, High-Density)
Engineered for dense, mission-critical networks, this Black Box Cat6 feed-through patch panel delivers high-density performance in a compact 1U form factor. Designed for 19" racks and data-centre environments, it consolidates incoming and outgoing lines into a tidy, organized, and serviceable patching solution. Its shielded construction minimizes interference, enabling reliable, high-speed Ethernet connections across busy data floors. Ideal for data centres, server rooms, and network closets, this 48-port patch panel helps you scale your infrastructure while keeping cable management clean and intuitive.
- High-density 48-port Cat6 patch panel optimized for 1U in 19" racks, enabling dense server and switch deployments without sacrificing accessibility.
- Feed-through design that simplifies termination and patching, allowing clean distribution of network cables from back-to-front with minimal crossing or clutter.
- Shielded construction to reduce EMI and crosstalk in electrically noisy data-centre environments, preserving signal integrity for reliable performance.
- Durable Black Box build quality with robust termination blocks and solid mounting compatibility, designed for long-term service in demanding deployments.
- Organized cabling with labeling options and clear port mapping to speed up maintenance, troubleshooting, and future scalability.
Technical Details of Black Box CAT6 Patch Panel
- Port Count: 48 RJ-45 shielded connectors for Cat6 networking
- Panel Type: Feed-through patch panel for straightforward termination and patching
- Rack Compatibility: 19" rack-mountable, 1U height
- Material & Build: Shielded, durable construction designed for data-centre environments
- Color: Black finish for easy integration with standard rack systems
- Standards: Cat6 performance to support high-speed Ethernet deployments in professional networks
How to Install Black Box CAT6 Patch Panel
Step 1: Prepare the rack and workspace. Ensure you have a clean, organized workspace near your data-centre equipment. Identify a suitable 19" rack bay for the patch panel and gather the necessary mounting screws and cable management accessories. Confirm that power and active devices are powered down only if required by your network policy, since the patch panel itself is a passive component.
Step 2: Mount the patch panel in the rack. Slide the 1U patch panel into the selected rack position. Align the mounting holes with the rack rails and secure the panel using the appropriate screws. Make sure the panel sits level and is firmly fastened to prevent movement during cable routing and maintenance.
Step 3: Route and organize backbone and distribution cables. Plan the cable routes to minimize bending and ensure sufficient slack for testing and future moves. Use rear cable management to keep cables tidy and avoid pinch points. Consider color-coding ports or labeling each port for quick identification during installation and future changes.
Step 4: Terminate cables on the rear side (feed-through). Terminate the incoming and outgoing Cat6 cables through the patch panel’s shielded blocks. Follow standard Cat6 termination practices, ensuring solid, clean terminations for each of the 48 ports. Maintain consistent pair geometry to preserve performance and reduce potential interference.
Step 5: Connect patch cables and perform testing. After termination, connect short patch cables from the patch panel to network devices, switches, or upstream patch panels as needed. Use a qualified network tester to verify continuity, pair integrity, and proper pinout for each port. Document port mapping to facilitate future maintenance and expansions.
Step 6: Label and finalize the installation. Apply port labels to the patch panel and route labels to the cable management paths. Ensure your labeling is legible and durable, so technicians can quickly identify each port during routine maintenance or reconfigurations.
Step 7: Schedule regular maintenance checks. Plan periodic inspections for cable slack, labeling clarity, and port cleanliness. Cleanliness and organization are key to sustaining high-performance networks in dense environments.
Tip: Because this is a feed-through panel, you’ll terminate cables on both sides and then use patch cables to connect to mid-spans, switches, or patch panels as your network design requires. Maintain consistent labeling and documentation to reduce downtime during reconfigurations and upgrades.
Frequently Asked Questions
Q: What is the primary benefit of a feed-through patch panel?
A: A feed-through patch panel provides a straightforward way to terminate cables on both sides, enabling clean, scalable distribution and easy re-cabling in high-density networks. It helps manage complex cable runs in data centres and reduces patching complexity when expanding or reconfiguring networks.
Q: Is this patch panel shielded?
A: Yes. The shielded design helps minimize EMI and crosstalk in busy data-centre environments, preserving signal integrity for reliable performance across all 48 ports.
Q: How many ports does this panel have?
A: It features 48 RJ-45 ports to support large-scale Cat6 Ethernet deployments within a single 1U panel.
Q: What rack size is required?
A: The panel is designed for standard 19" racks and occupies 1U of vertical space, making it suitable for compact but highly connected installations.
Q: What CAT6 standards does it meet?
A: The panel is designed for Cat6 performance, suitable for high-speed Ethernet networks and applications that require robust shielding and reliable data transmission.
Q: Are mounting screws included?
A: Mounting hardware is typically provided with the panel or available separately; always verify packaging contents before installation to ensure you have the necessary screws for your rack rails.
Q: Can I reuse existing cables and patch cords?
A: Yes. This patch panel is compatible with standard Cat6 cables and shields. When possible, use shielded Cat6 patch cords to maintain the integrity of the shielded system and minimize interference.
