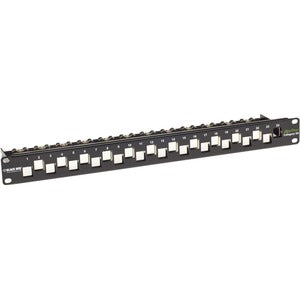

Black Box CAT6A Staggered Multimedia Patch Panel – 1U, Blank, 24-Port

Elevate your network infrastructure with the Black Box CAT6A Staggered Multimedia Patch Panel. Crafted for high-density racks and demanding data centers, this 1U blank panel features a staggered port design that creates generous spacing between ports. The result is reduced ANEXT, cleaner signal paths, and improved performance across CAT6A installations. Built from rugged cold-rolled steel and equipped with two rear cable management bars, this patch panel is engineered to endure the rigors of professional networking while delivering reliable, high-speed connectivity. Whether you’re expanding a modest office network or building out a 10 Gigabit backbone, this 24-port patch panel provides a flexible, future-ready solution that integrates seamlessly with GigaTrue2 CAT6A jacks in standard 19" racks.

• Staggeredport design provides more space between ports to minimize ANEXT and enhance performance in dense 24-port configurations, especially critical for 10 Gigabit Ethernet deployments.
• Durable construction uses cold-rolled steel for superior rigidity, long-term stability in busy data centers, and consistent performance under load.
• Back-of-panel cable management includes two rear CBL management bars to keep cables organized, reduce crosstalk, and simplify maintenance and future reconfigurations.
• Blank 1U panel for flexibility designed to be populated with GigaTrue®2 CAT6A jacks or used as a clean, blank 24-port interface in mixed environments, allowing quick adaptation to changing network needs.
• High-speed readiness engineered to support high-speed networks up to 10 Gigabit Ethernet, ensuring compatibility with modern data centers and enterprise networks while maintaining reliability and longevity.

Technical Details of Black Box CAT6A Staggered Multimedia Patch Panel – 1U, Blank, 24-Port

• Form factor: 1U high, 19" rack width to fit standard racks used in offices, data centers, and broadcast environments.
• Ports: 24 staggered ports designed to maximize spacing and ease labeling in crowded racking scenarios.
• Material: Cold-rolled steel for durable construction and robust performance in demanding installations.
• Color: Black finish that blends with common rack hardware and provides a professional, unobtrusive appearance.
• Mounting: Standard 19" rack compatibility with mounting options suitable for enterprise deployments.
• Cable management: Two rear CBL management bars to guide, secure, and organize backbone and patch cabling for cleaner installations.
• Compatibility: Designed to hold GigaTrue®2 CAT6A jacks, delivering reliable performance with high-quality jacks and connectors.
• Network readiness: Built to support high-speed networks up to 10 Gigabit Ethernet, enabling scalable upgrades as bandwidth requirements grow.
• Panel type: Blank panel option that provides a flexible platform for future jack population or clean, unpopulated installations in controlled environments.
• Warranty: Guaranteed for life, reflecting Black Box’s commitment to durability and long-term value for commercial customers.
