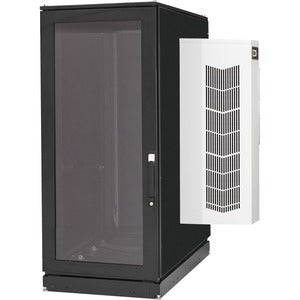

Black Box ClimateCab A/C Cabinet - 24U, 8000 BTU, 120V, M6 Square Holes

Engineered for demanding IT, telecom, and industrial environments, the Black Box ClimateCab A/C Cabinet is designed to protect sensitive equipment from temperature and humidity swings while keeping it organized, secure, and accessible. With 24U of rack space, a powerful 8000 BTU air-conditioning unit mounted on the cabinet’s side, and a rugged, fully welded 12-gauge steel frame, this climate-controlled cabinet delivers reliable cooling and durable performance in data centers, server rooms, labs, and harsh shop floors. It features standard 19" rails, M6 square hole mounting, and secure three-point locking on both front and rear doors, providing a versatile, secure solution for equipment that demands steady temperatures and easy serviceability. Mobility is built in with casters and levelers, allowing you to move and level the cabinet with ease while maintaining a stable, vibration-free setup.

• Side-mounted 8000 BTU AC unit with quick install — The climate control unit mounts on the side of the ClimateCab cabinet, enabling a fast, about-five-minute installation that minimizes downtime and disruption while delivering effective cooling right where you need it.
• Rugged 12-gauge welded steel frame — A fully welded frame delivers exceptional strength and rigidity, capable of supporting up to 2000 pounds (907 kg) of rack equipment, accessories, and cables without compromising stability or safety.
• Security you can rely on — Front and rear doors are equipped with three-point locking handles, giving you robust protection against tampering and unauthorized access while preserving convenient, lockable access from either side.
• Flexible mounting with standard 19" rails and M6 square holes — The cabinet includes standard 19" rails for universal compatibility with a wide range of rack-mount equipment, plus M6 square hole patterns that support secure, versatile mounting and cable management options.
• Mobility and leveling for perfect placement — Casters and levelers are included, enabling easy relocation and precise leveling on uneven floors, ensuring optimal airflow, stability, and alignment with adjacent equipment.

Technical Details of Black Box ClimateCab A/C Cabinet - 24U, 8000 BTU, M6 Square Holes, 120V

• Rack space: 24U standard 19" rack rails for mounting equipment and accessories.
• Cooling capacity: 8000 BTU cooling capacity provided by side-mounted AC unit, designed to maintain stable temperatures for embedded gear and dense rack configurations.
• Construction: Fully welded 12-gauge steel frame for maximum durability and load-bearing strength.
• Weight capacity: Supports up to 2000 pounds (907 kg) of equipment, ensuring you can consolidate multiple devices with room for future expansion.
• Mounting pattern: Standard 19" rails with M6 square hole mounting for flexible, secure hardware installation and cable management.
• Electrical: 120V configuration suitable for common data-center and office electrical supplies, compatible with standard power distribution setups.
• Security: Three-point locking handles on both front and rear doors to deter unauthorized access while offering easy operation for authorized users.
• Mobility and leveling: Includes casters for mobility and leveling feet to ensure a stable, level setup on various floor surfaces.
• Dimensional overview: Designed to fit standard 19" equipment footprints while maintaining efficient airflow and accessible service paths for cables and cooling lines.
• Installation note: AC unit mounts on the side of the ClimateCab; installation tends to be quick and straightforward, minimizing downtime during deployment or refreshes.

How to install Black Box ClimateCab

Installing the Black Box ClimateCab A/C Cabinet is straightforward and purpose-built to reduce downtime. Follow these practical steps to deploy the cabinet in your IT room, lab, or workshop:

• Prepare the space: Choose a clean, level floor with adequate ventilation and clearance around the cabinet for airflow and service access. Ensure electrical availability for the 120V feed and any cooling unit requirements.
• Position and level the cabinet: Move the ClimateCab into place using the built-in casters. Use the included levelers to achieve a perfectly level stance, which optimizes door alignment, gasket sealing, and airflow paths.
• Attach the casters and hardware: If casters were not pre-installed, attach them according to the manufacturer’s hardware kit, then verify wheel grip and stability before loading equipment.
• Mount the side AC unit: Install the 8000 BTU air-conditioner on the cabinet’s side mounting points using the provided hardware. Ensure the unit is securely fastened and oriented to allow efficient airflow into the cabinet and easy exhaust routing as required.
• Install rack equipment: Slide in your 19" rack-mount devices onto the standard rails. Align equipment with M6 square holes for secure mounting. Use appropriate screws and cage nuts, ensuring balanced weight distribution to preserve cabinet integrity.
• Connect power and test: Connect the AC unit to a dedicated 120V supply and power down the cabinet to verify connections. Power on the system and monitor cooling performance, airflow, and door seals. Confirm three-point locks engage smoothly and doors close tightly without interference.
• Cable management and final checks: Route cables neatly along rear channels or inside the cabinet, avoiding obstruction of airflow. Perform a final inspection of seals, gaskets, and locking mechanisms, and document the configuration for future maintenance or expansion.

Tip: After installation, give the system a quick operational test by simulating an ambient temperature rise and confirming the 8000 BTU unit maintains stable internal temperatures. Regular maintenance, including cleaning filters and inspecting locking hardware, will extend the cabinet’s life and preserve cooling performance.

Frequently asked questions

• Q: How much equipment can the ClimateCab hold? A: The cabinet is designed to support up to 2000 pounds (907 kg) of equipment, thanks to its fully welded 12-gauge steel frame and robust construction. This makes it suitable for dense, multi-rack deployments while maintaining structural integrity.
• Q: Does the AC unit mount on the inside or outside of the cabinet? A: The climate control unit mounts on the side of the ClimateCab cabinet, providing accessible cooling without compromising interior space or rack layout.
• Q: What mounting rails are included? A: The cabinet includes standard 19" rails with M6 square holes to accommodate a wide range of rack-mount hardware and flexible mounting options.
• Q: Is the cabinet secure? A: Yes. Front and rear doors feature three-point locking mechanisms to enhance security in data centers, labs, and other environments requiring controlled access.
• Q: What about mobility? A: The ClimateCab ships with casters and levelers, enabling easy relocation and precise leveling on uneven floors, which helps maintain airflow and equipment alignment.
• Q: What voltage does it use? A: The cabinet is designed for 120V operation, compatible with standard electrical outlets and power distribution setups in most offices and data centers.
