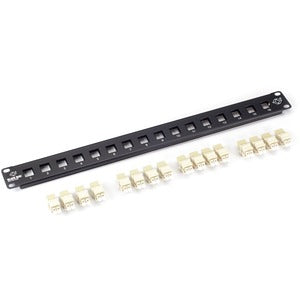

Black Box Connect Rackmount Preloaded Fiber Panel - 1U, 16 LC Duplex

Experience premium fiber connectivity with a hardware-focused design that blends reliability, density, and simplicity. The Black Box Connect Rackmount Preloaded Fiber Panel packs 16 duplex LC fiber connections into a compact 1U, 19" rack footprint, delivering clean termination zones and accessible front-and-back LC access for quick patching, testing, and reconfiguration. Built to Black Box quality standards, this panel is crafted from cold-rolled steel for durability in data centers, engineering rooms, and telecom closets, ensuring stable performance even under demanding conditions. With preloaded LC pairs, it’s ready to deploy straight out of the box, helping you accelerate deployments and minimize on-site labor while maintaining high-quality signal integrity and reliable long-term operation. Ships same day and is designed to integrate seamlessly with your existing 19" rack infrastructure, making it a dependable choice for high-density fiber deployments.

• High-density fiber footprint: This 1U, 19" rackmount panel accommodates 16 duplex LC pairs, delivering a compact, space-saving solution that maximizes port density without compromising performance. Its dense layout is ideal for data centers, enterprise networks, and telecom rooms where every inch of rack space matters. The design supports scalable fiber expansion, enabling you to add more connections over time without requiring a larger panel or additional cooling footprint.
• Front and rear LC access for flexible patching: Each LC port provides access from both the front and the back of the panel, simplifying cross-connecting, testing, and maintenance from either side of the cabinet. This dual-access feature reduces the need for repositioning cables and makes routine IT tasks more efficient, while helping to keep ports organized and clearly labeled for quick identification during busy operations.
• Rigid, durable construction: Constructed from cold-rolled steel with a robust finish, the panel resists bending, corrosion, and wear in busy data environments. The sturdy chassis supports long-term reliability and maintains precise alignment of LC connectors, helping to minimize insertion loss and reflection over time. The durable build is designed to stand up to routine maintenance, cabling rearrangements, and rack-servicing scenarios without compromising performance.
• Preloaded for rapid deployment: The panel ships preloaded with LC duplex jacks, enabling rapid installation with minimal on-site setup. Preloading reduces patching time, ensures consistent termination quality, and lowers the risk of miswiring or mismatched connectors. This makes it a strong choice for rolling out new fiber segments, upgrading existing networks, or staging pre-provisioned fiber paths for rapid turn-up of services.
• Standard 19" rack compatibility and enterprise-ready: Sized for standard 19" racks and precisely 1U in height (1.75"), this fiber panel integrates smoothly with existing patch panels, cable management systems, and adjacent equipment. Its standardized dimensions simplify rack planning and ensure compatibility with common mounting rails, providing predictable fitment alongside switches, servers, and other networking gear. The panel’s design emphasizes cable management and professional presentation in busy data centers and server rooms.

Technical Details of Black Box Connect Rackmount Preloaded Fiber Panel - 1U, (16) LC Duplex

• Product type: Rackmount fiber panel, preloaded with LC duplex jacks
• Mounting type: 19" rack, 1U height (1.75")
• Connectivity: 16 duplex LC fiber connections (32 LC terminations total)
• Connector type: LC female connectors on both front and back
• Material: Cold-rolled steel construction
• Finish: Durable powder-coated surface for abrasion and corrosion resistance
• Dimensions: 19" rack width, 1U height
• Compatibility: Standard 19" racks with compatible patch panels and cabling accessories
• Color/finish: Matte black or equivalent protective coating (as per standard Black Box finishes)
• Shipping: In stock and ships the same day
• applications: Ideal for data centers, enterprise networks, telecom rooms, and any environment requiring high-density, front and rear-access LC connectivity

How to install Black Box Connect Rackmount Preloaded Fiber Panel

• Prepare the rack: Verify the rack is clean, grounded, and capable of supporting the weight and density of the panel. Identify a suitable bay that provides clear access to both the front and rear of the enclosure for testing and patching.
• Mount the panel: Align the panel with the 19" rack rails and secure it using appropriate screws. Ensure the unit is level and firmly seated to prevent movement during cabling or re-terminations.
• Terminate and connect: If you are integrating pre-terminated fibers, verify that the LC duplex ports are correctly mapped to your network scheme. Use appropriate LC patch cords and maintain proper fiber polarity and color-coding to avoid cross-wiring errors.
• Route and manage cables: Route patch and trunk cables using cable management accessories to minimize bending, maintain proper bend radii, and prevent cable interference with adjacent equipment. Label each port clearly to simplify future changes and troubleshooting.
• Test and verify: After installation, use a power meter, OTDR, or laser tester to verify link integrity, insertion loss, and continuity. Document test results for future maintenance and commissioning records. Perform a final inspection to ensure ports remain accessible and clean.

Frequently asked questions

• Q: What is the height and width of this panel?

  A: The panel is 1U high (1.75 inches) and fits standard 19" racks.

• Q: How many LC duplex connections does it support?

  A: It supports 16 duplex LC pairs, providing 32 LC fiber terminations in total.

• Q: Are the LC connectors accessible from both sides?

  A: Yes. The panel provides LC female connectors on both the front and the back for flexible deployment and testing.

• Q: What material is used for the panel?

  A: It is constructed from cold-rolled steel and finished with a durable powder coat for reliability in challenging environments.

• Q: Does this panel ship the same day?

  A: Yes. When in stock, it ships the same day to support rapid deployment.
