Black Box EC Series KVM CATx Extender Kit - DVI-D, USB, Audio

Black BoxSKU: 5137243

Price:
Sale price$1,282.96

Description

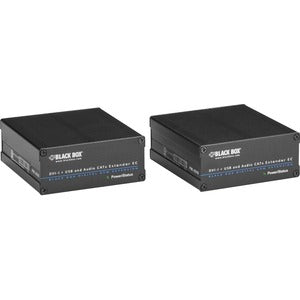

Black Box EC Series KVM CATx Extender Kit - DVI-D, USB, Audio

Meet the Black Box EC Series KVM CATx Extender Kit, a premium solution designed for demanding remote access to your computer systems. This two‑piece kit extends high‑quality DVI‑D video, USB HID peripherals, and audio over standard CAT5e, CAT6, or CAT6A cabling, delivering reliable, lossless digital video across long distances. With support for full HD resolutions up to 1900 x 1200 at 60 Hz and the ability to operate keyboards, mice, touchscreens, and other USB HID devices remotely, the EC Series brings centralized control, streamlined workflows, and flexible workstation layouts to data centers, control rooms, production studios, and multi‑room environments. Built to handle busy workloads with low latency, the extender kit is an ideal choice for professionals who demand precise image fidelity and responsive input performance across deployment distances up to 130 meters (426 feet).

  • Long‑distance CATx extension: Transmit DVI‑D video, USB HID data, and stereo audio across CAT5e, CAT6, or CAT6A cables up to 130 meters (426 feet), enabling centralized control and multi‑room setups without compromising signal integrity.
  • High‑definition video, crisp text, and accurate color: Supports lossless digital video at resolutions up to 1900 x 1200 @ 60 Hz, delivering clear, professional imaging for graphic design, video editing, engineering, and data monitoring tasks. Ideal for monitoring dashboards, live feeds, and critical control interfaces.
  • Full USB HID support: Compatible with USB keyboards, mice, touchscreens, and other USB HID devices at the remote end, providing seamless interaction as if you were directly connected to the host computer. Bidirectional USB communication ensures responsive input and control.
  • Integrated audio pass‑through: Carries stereo audio from the host to the display area, enabling synchronized audio and video in presentations, collaboration spaces, and multimedia workflows without needing separate audio cables.
  • Simple two‑piece installation with broad compatibility: The EC Series kit comprises a transmitter and a receiver that work with existing CAT5e/6 cables in your facility. Its design emphasizes plug‑and‑play setup, reliable performance, and compatibility with standard IT and AV environments for quick deployment with minimal downtime.

Technical Details of Black Box EC Series KVM CATx Extender Kit - DVI-D, USB, Audio

  • Signal extension: Extends DVI‑D video, USB HID, and audio signals over CAT5e, CAT6, or CAT6A cabling.
  • Distance: Supports extension up to 130 meters (426 feet) between the transmitter and receiver.
  • Video resolution: Delivers lossless digital video up to 1900 x 1200 at 60 Hz, providing sharp text and clear images suitable for professional applications.
  • USB support: Compatible with USB HID devices, including keyboards, mice, touchscreens, and other USB peripherals, with bidirectional data for responsive control.
  • Audio: Passes stereo audio between the host and remote locations for synchronized multimedia experiences.
  • Form factor: Two‑piece kit consisting of a transmitter (host side) and a receiver (display/remote side) for flexible deployment alongside existing IT/AV infrastructure.
  • Cable compatibility: Works over standard CAT5e, CAT6, or CAT6A networks, enabling cost‑effective integration with existing cabling and infrastructure.
  • Video integrity: Maintains high image fidelity over distance, reducing artifacts and preserving color accuracy essential for professional visualization tasks.
  • Applications: Ideal for data centers, control rooms, broadcast or post‑production suites, digital signage ecosystems, medical imaging stations, and any environment requiring reliable remote KVM access.

How to Install Black Box EC Series KVM CATx Extender Kit - DVI-D, USB, Audio

  • Power off the host system and the remote display area before beginning installation to ensure a safe setup.

  • Connect the transmitter to the source computer using a DVI‑D video cable and attach USB HID devices (keyboard, mouse, or touchscreen) to the transmitter’s USB ports. Route the CAT5e/6/6A cable from the transmitter to the remote receiver location.

  • Plug the receiver into the display or monitor using a DVI‑D cable and connect USB HID devices required at the remote end. If audio is needed, connect the appropriate stereo audio path from the source or the display, depending on your setup.

  • Power both units if external power supplies are required by your hardware. Ensure the CATx cable is properly seated and securely connected at both ends to minimize interference or signal loss.

  • Power on the host system, then power on the remote display area. Verify video appears clearly at the remote monitor, and confirm that USB HID peripherals respond promptly. If needed, adjust display settings (resolution, refresh rate) on the host to match the remote display capabilities for optimal performance.

Frequently asked questions

  • Q: How far can the Black Box EC Series KVM CATx Extender Kit extend signals?

    A: It supports transmission over CAT5e, CAT6, or CAT6A cables up to 130 meters (426 feet) between the transmitter and receiver, enabling flexible layouts across rooms or small data centers.

  • Q: What video resolutions are supported?

    A: The system delivers lossless digital video up to 1900 x 1200 at 60 Hz, providing high‑quality image clarity for professional applications, including text rendering and image precision.

  • Q: Can I use USB devices at the remote end?

    A: Yes. The kit supports USB HID devices such as keyboards, mice, touchscreens, and other USB peripherals at the remote location, with bidirectional USB data for responsive control.

  • Q: Is audio included with the extension?

    A: The extender kit passes stereo audio from the host to the remote display area, enabling synchronized audio and video for presentations, multimedia workflows, and collaboration environments.

  • Q: What environments is this kit best suited for?

    A: It’s ideal for data centers, control rooms, broadcast or post‑production studios, digital signage networks, and multi‑room workspaces where centralized control and reliable remote access are critical.
