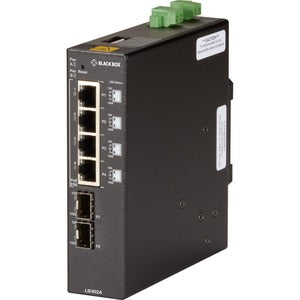

Black Box Ethernet Switch

The Black Box Ethernet Switch is your ultimate solution for high-performance networking in industrial environments. Delivering unmatched Gigabit speeds and reliable power to multiple devices, this unmanaged industrial PoE++ network switch is designed for critical applications where reliability is a top priority. Experience seamless connectivity and robust performance with the Black Box Ethernet Switch.

• High-Speed Connectivity: Equipped with two Gigabit fiber SFP ports and four 10/100/1000-Mbps copper RJ-45 ports, the Black Box Ethernet Switch ensures fast data transfer and seamless connectivity for all your devices.
• Power Over Ethernet (PoE) Support: This switch supports PoE, PoE+, and 60-watt PoE++, allowing you to power various devices such as cameras and wireless access points, while automatically negotiating power levels required by each powered device.
• Directed Switch Mode: The Directed Switch Mode intelligently directs multicast traffic only to the appropriate fiber port, significantly reducing network congestion and preventing unnecessary data flooding to other ports.
• Redundant Fiber Uplinks: With two fiber ports, the switch supports redundant fiber uplinks that ensure critical applications remain operational even in the event of a fiber failure. Restoration is achieved in under 50 milliseconds.
• Remote PoE Power Reset: This switch features a remote PoE power reset function that can be easily configured with a DIP switch, allowing effective management of powered devices, saving time and reducing operational costs.

Technical Details of the Black Box Ethernet Switch

• Four 10/100/1000-Mbps RJ-45 PoE++ ports
• Two 100/1000-Mbps SFP ports
• IEEE 802.3bt compliant with up to 60 watts of PoE power per port
• Simultaneous full PoE++ power delivery to all Ethernet RJ-45 ports
• Supports 100BASE-X or 1000BASE-X SFP transceivers
• DIN-rail mountable with included clip
• Fanless design for enhanced durability and resistance to vibration

How to Install the Black Box Ethernet Switch

Installing the Black Box Ethernet Switch is straightforward and can be completed in a few simple steps:

1. Choose a suitable location for the switch, ensuring it is within reach of power and network cables.
2. Use the included DIN-rail mount clip or other mounting options to secure the switch in place.
3. Connect your network devices to the RJ-45 ports using standard Ethernet cables.
4. If using fiber connections, insert compatible SFP transceivers into the SFP ports and connect the fiber cables.
5. Connect the power supply to the switch and ensure all devices are powered on.
6. Configure the remote PoE power reset settings using the DIP switch if necessary, and monitor your network performance.

Frequently Asked Questions

What is the maximum power output for the PoE ports?

The Black Box Ethernet Switch can deliver up to 60 watts of PoE power per port, supporting a wide range of powered devices.

Can I daisy-chain multiple switches?

Yes, the second fiber port can be used to daisy chain additional Ethernet switches, providing flexible network expansion options.

Is the switch suitable for outdoor use?

This switch is designed for tough industrial environments but is not specifically rated for outdoor use without additional protective measures.

How does the Directed Switch Mode work?

Directed Switch Mode ensures that multicast traffic only goes to the intended fiber port, thereby preventing unnecessary data traffic from affecting other network ports.

What temperature range can this switch operate in?

The Black Box Ethernet Switch can operate in an extended temperature range of -40° to 75° C, making it ideal for harsh industrial applications.
