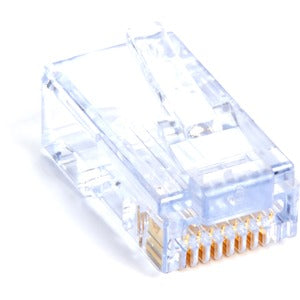

Black Box EZ-RJ45 Network Connector

The Black Box EZ-RJ45 Network Connector is your go-to solution for achieving high-performance network connectivity with ease and precision. Specifically crafted for both seasoned professionals and DIY enthusiasts, this connector facilitates hassle-free terminations while ensuring robust and reliable connections. Say goodbye to the complexities of traditional connectors and embrace the innovative design that the EZ-RJ45 offers. Whether you are setting up a small home network or managing a large-scale installation, the Black Box EZ-RJ45 Network Connector is engineered to meet your needs efficiently.

• Effortless Termination: The unique EZ RJ45 design allows you to insert cable wires directly into the connector, letting you confirm correct wiring before crimping. This revolutionary feature minimizes errors and reduces waste.
• High-Quality Construction: Each connector is equipped with 50 Micron Gold Plated Contacts, ensuring optimal performance and long-lasting connectivity. Experience enhanced durability that can endure the rigors of daily use.
• Versatile Compatibility: The Black Box EZ-RJ45 connectors are compatible with both round solid and stranded cables, making them a versatile choice for various networking applications.
• Simple and Efficient Design: The one-piece design removes the need for additional loading bars and liners, simplifying the installation process. Enjoy faster terminations without compromising on quality.
• Guaranteed Reliability: These connectors are FCC compliant, UL rated, and adhere to the Federal Trade Agreements Act (TAA). Furthermore, they come with a lifetime guarantee, ensuring your investment is secure.

Technical Details of the Product

• Type: EZ RJ45 Modular Plug (Cat5e)
• Gold Plating: 50 Micron
• Compatibility: FT1100A and FT1200A EZ RJ45 Crimp Tools
• Packaging Options: Available in packs of 25, 50, and 100
• Compliance: FCC, UL, TAA compliant

How to Install

Installing the Black Box EZ-RJ45 Network Connector is straightforward:

1. Strip the outer insulation of your Cat5e cabling to expose approximately 1 inch of the inner wires.
2. Arrange the wires in the correct order according to the wiring standard you are using (T568A or T568B).
3. Insert the wires into the EZ RJ45 connector, ensuring they pass through the nose of the plug and reach the end.
4. Use the FT1100A or FT1200A EZ RJ45 crimp tool to crimp the connector securely onto the cable.
5. Check the wiring through the transparent connector to ensure everything is correctly seated and crimped.

Frequently Asked Questions

• What types of cables can I use with the EZ-RJ45 connectors? You can use both solid and stranded cables with the Black Box EZ-RJ45 connectors, making them highly versatile for different networking needs.
• Do these connectors work with both T568A and T568B wiring standards? Yes, the EZ-RJ45 connectors are designed to accommodate both T568A and T568B wiring schemes, providing flexibility for your network setups.
• Are the connectors guaranteed for life? Absolutely! The Black Box EZ-RJ45 connectors come with a lifetime guarantee, ensuring durability and reliability for all your networking needs.
• Can I use these connectors for outdoor installations? While the connectors are durable and reliable, it is recommended to use them in indoor environments or in conjunction with weatherproof enclosures for outdoor applications.
• Do I need special tools for installation? Yes, you will need either the FT1100A or FT1200A EZ RJ45 crimp tool to properly install the connectors onto your cabling.
