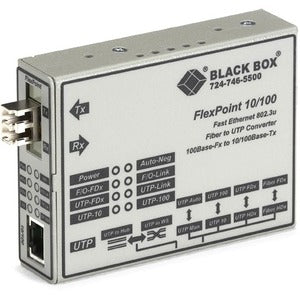

Black Box FlexPoint LMC100A-SMLC-R2 Transceiver/Media Converter

Black BoxSKU: 4295054

Price:
Sale price$712.16

Description

The Black Box FlexPoint LMC100A-SMLC-R2 Transceiver/Media Converter is a compact, enterprise-grade solution designed to seamlessly bridge fiber optic networks with copper Ethernet infrastructure. This versatile device auto-senses the UTP port to operate at 10 or 100 Mbps, simplifying integration with a wide range of devices and legacy equipment. A practical manual override control gives network engineers precise command over how traffic moves between fiber and UTP ports, empowering you to tailor performance to your specific environment. The built-in crossover switch further simplifies connections to hubs or switches, making deployments faster and less prone to misconfiguration. Whether you are expanding a data center spine, extending a campus network, or upgrading an older copper segment, this converter delivers dependable performance in a small, durable package.

Designed for reliability in real-world networks, the LMC100A-SMLC-R2 features a rugged metal enclosure with efficient side air vents to dissipate heat and maintain stable operation under load. This construction is ideal for equipment rooms, wall cavities, or distributed office spaces where environmental factors like temperature and dust can affect performance. The unit ships with hardware that supports secure mounting on a wall or on a DIN rail, enabling flexible deployment in data closets, equipment racks, or compact server enclosures. With flexible mounting and robust build quality, it’s a practical upgrade for network architects who demand consistent, low-latency connectivity between fiber backbones and copper end devices.

When you need a dependable link between fiber networks and copper LANs, the FlexPoint LMC100A-SMLC-R2 provides a straightforward, low-maintenance option. Its straightforward feature set minimizes the need for complex configuration while delivering the essential control and compatibility you expect from a professional-grade media converter. The combination of auto-sensing UTP speeds, a manual override that puts you in command, and a crossover feature that reduces cable clutter makes this device a smart addition to a wide range of deployments. It’s equally at home in a small office, a large data center, or a remote site where simple, durable network extension is essential for business continuity and performance.

  • Auto-sensing UTP port: The Ethernet (UTP) port automatically detects 10- or 100-Mbps operation, eliminating manual speed configuration and ensuring optimal performance with mixed devices and legacy equipment.
  • Manual override switch for precise control: Use the override to determine how data moves between fiber and copper ports, enabling tailored behavior for applications, VLANs, or specific network topologies.
  • Crossover switch for direct connections: The built-in crossover option allows direct connections to hubs or switches without extra adapters, simplifying deployments and reducing cable complexity.
  • Wall or DIN rail mounting: Included hardware supports secure wall mounting or DIN rail installation, delivering flexible placement and saving valuable rack space in tight environments.
  • Rugged, vented metal housing: A sturdy metal enclosure with side vents supports durable operation in busy network closets, education labs, or industrial environments where airflow and heat management matter.

Technical Details of Black Box FlexPoint LMC100A-SMLC-R2 Transceiver/Media Converter

  • Model: LMC100A-SMLC-R2
  • Interface: UTP Ethernet port (RJ-45) with auto-sensing 10/100 Mbps; Fiber port for fiber optic connection (type/model dependent on configuration)
  • Port configuration: Manual override control and crossover switch to optimize connections to hubs or switches
  • Mounting options: Wall-mount or DIN rail mounting hardware included
  • Construction: Durable metal housing with side air vents for cooling

how to install Black Box FlexPoint LMC100A-SMLC-R2 Transceiver/Media Converter

Installing the FlexPoint LMC100A-SMLC-R2 is a straightforward process designed to minimize downtime during network upgrades or expansions. Start by selecting a location that provides adequate ventilation and easy cable access, keeping the device away from sources of excessive heat, moisture, or EMI. Use the included mounting hardware to secure the unit to a wall surface or onto a DIN rail, ensuring it is firmly attached and stable.

  • Step 1: Mount the converter in the chosen location using the provided wall-mount or DIN rail hardware. Confirm the unit is secure and oriented for convenient cable routing.
  • Step 2: Connect the fiber optic cable to the fiber port on the unit. Ensure the fiber connector type matches the port on the device and that the connection is clean and secure.
  • Step 3: Connect the copper Ethernet cable to the RJ-45 UTP port. Verify that the cable is properly seated and that the connectors are undamaged for reliable signaling.
  • Step 4: If your network topology requires it, set the crossover switch to the appropriate position to enable direct connections to a hub or switch. This can simplify your network path and reduce the need for additional adapters.
  • Step 5: Use the manual override switch to configure port behavior according to your application—whether you need specific flow control, testing, or compatibility with legacy devices.
  • Step 6: Power the device if it requires an external supply; confirm that indicator LEDs on the front panel show proper link status on both fiber and copper sides. Test connectivity by pinging devices across the link and verifying data throughput.
  • Step 7: Document the installation details, including port assignments and any switch settings, to simplify future maintenance and troubleshooting.

Frequently asked questions

  • What does the Black Box FlexPoint LMC100A-SMLC-R2 do? It is a transceiver/media converter that bridges fiber optic networks with copper Ethernet, enabling communication between fiber and copper segments and extending network reach where fiber backbones meet legacy copper devices.
  • What speeds does the UTP port support? The UTP port auto-senses 10 or 100 Mbps, automatically adjusting to the connected device’s capabilities to ensure compatibility and optimal performance.
  • Can I control how traffic flows between ports? Yes. The unit provides a manual override switch that lets you specify how the fiber and UTP ports interact, giving you flexibility for different network scenarios, testing, or legacy equipment compatibility.
  • Is mounting on a wall or DIN rail supported? Yes. The FlexPoint model includes hardware for secure wall mounting or DIN rail installation, giving you flexible placement options in data centers, server rooms, or distributed offices.
  • Does it include a crossover feature? Yes. The built-in crossover switch simplifies direct connections to hubs or switches, reducing the need for extra adapters and helping to streamline network upgrades.
