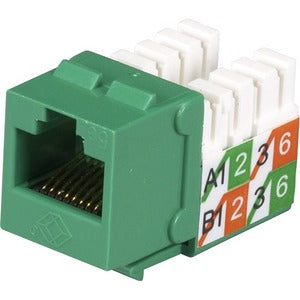

Black Box GigaBase2 Cat.5e Jack

Experience reliable, high-performance Ethernet terminations with the Black Box GigaBase2 Cat.5e Jack. This modular jack is engineered for universal wiring, delivering consistent signal integrity in data centers, network closets, and professional installations. The IDC contacts are phosphor bronze with tin plating, offering robust mechanical performance and corrosion resistance for long service life. Nose contacts feature 50-micron gold plating over a 100-micron nickel underplating to maximize conductivity and wear resistance across thousands of insertions. Labeled with both T568A and T568B wiring schemes, it’s easy to select the correct termination method on site, reducing mistakes and the need for rework. Termination is made simple with a standard 110 tooling system, ensuring fast, clean terminations with repeatable results. The termination retention stuffer cap provides strain relief to protect the connection from cable movement, bending, and pulling forces common in busy patch panels and racks. Built to integrate into existing keystone-style jack ecosystems, the GigaBase2 Cat5e Jack offers a compact, reliable interface that helps installers maximize space without sacrificing performance. This jack minimizes crosstalk and maintains consistent impedance, supporting gigabit Ethernet speeds and stable performance in mixed environments. Whether you’re upgrading an office network, wiring a data center, or refreshing an older infrastructure, this Cat5e jack delivers dependable performance, easy installation, and durable construction. With attention to material quality and precise engineering, the GigaBase2 continues Black Box’s legacy of delivering value-driven, high-reliability connectivity solutions for IT professionals, installers, and facility managers who demand solid performance and lasting value.

• Universal wiring with dual labeling (T568A and T568B) provides flexible termination options and minimizes install errors in mixed networks.
• IDC contacts crafted from phosphor bronze with tin plating deliver durable conductivity, reliable contact force, and excellent corrosion resistance for longevity in active networks.
• Nose contacts plated with 50-micron gold over 100-micron nickel underplating to optimize signal integrity, wear resistance, and repeatable performance across many terminations.
• Easy terminations designed for use with standard 110 tooling, enabling fast, clean, repeatable terminations in busy field environments.
• Strain relief via termination retention stuffer cap protects the termination from cable movement, reducing pulling and bending stress that can degrade connections over time.

Technical Details of Black Box GigaBase2 Cat.5e Jack

• Product type: Cat5e modular jack with universal wiring support
• Wiring schemes: Labeled for both T568A and T568B
• IDC contact material: phosphor bronze with tin plating
• Nose contact plating: 50 µm gold over 100 µm nickel underplating
• Termination method: compatible with 110-type termination tools
• Strain relief: termination retention stuffer cap provides strain relief

How to install Black Box GigaBase2 Cat.5e Jack

• Step 1: Plan your wiring scheme. Decide whether the installation will follow T568A or T568B to match existing network hardware, labeling on the jack helps confirm the correct scheme at a glance.
• Step 2: Prepare the Cat5e/Cat6 patch cable. Strip back the outer jacket to expose the insulated conductors to the proper length specified for the jack, ensuring clean, undamaged wires ready for termination.
• Step 3: Align wires with the chosen scheme. Separate the individual conductors according to the T568A or T568B layout, keeping color order precise to avoid crossed or swapped pairs.
• Step 4: Terminate with a 110 tool. Use a standard 110-type punch-down tool to seat each conductor into the IDC contacts. Apply firm, even pressure to ensure a solid connection; the 110 tool is designed to create a reliable termination with minimal effort and maximum repeatability.
• Step 5: Verify termination integrity. Inspect each termination for proper seating, ensure no stray strands, and perform a quick continuity check if a tester is available to confirm wiring accuracy.
• Step 6: Install the jack. Snap the terminated jack into the intended panel, keystone wall plate, or patch panel slot. Ensure the stuffer cap remains in place to provide strain relief and protect the connection from movement.
• Step 7: Perform functional testing. Use a network cable tester or OTDR-style tester to confirm correct pair wiring, impedance, and overall performance to ensure the installation meets your in-service requirements.

Frequently asked questions

• What is the Black Box GigaBase2 Cat5e Jack? It is a universal-wiring Cat5e modular jack designed for reliable Ethernet terminations, labeled for both T568A and T568B schemes, with materials chosen for durability and signal integrity.
• What materials are used for the contacts? The IDC contacts are made from phosphor bronze with tin plating, while the nose contacts feature 50-micron gold plating over 100-micron nickel underplating to maximize wear resistance and conductivity.
• How do you terminate wiring? Terminations are made using a standard 110-type tool into the IDC contacts, providing fast, clean, and repeatable terminations. The stuffer cap adds strain relief to protect the cable.
• Does it support both T568A and T568B? Yes. The jack is labeled for both wiring schemes, allowing you to select the scheme that matches your network infrastructure.
• Is strain relief included? Yes. The termination retention stuffer cap provides strain relief to help protect the termination from cable movement and stress.
