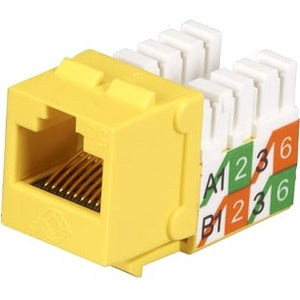

Black Box GigaBase2 CAT5e Jack with Universal Wiring, Yellow, 25-Pack

Black BoxSKU: 2888902

Price:
Sale price$98.76

Description

The Black Box GigaBase2 CAT5e Jack in a bright yellow finish is built for reliable, scalable network terminations across enterprise, data-center, and home-office environments. This 25-pack of high-performance keystone jacks is designed to deliver fast, consistent terminations with industry-standard CAT5e capabilities. With universal wiring, a user-friendly 110 tooling interface, and materials chosen for durability, these jacks help you deploy clean, organized networks that stand up to daily use. The color-coded yellow jacks are ideal for quick identification in crowded patch panels and wall plates, reducing installation time and minimizing wiring mistakes.

  • Universal wiring for T568A and T568B: The jack is clearly labeled to support both wiring schemes, enabling seamless compatibility across different network layouts, contractors, and equipment in mixed environments. This flexibility significantly reduces rework when upgrading or expanding networks, and it is especially valuable in patch panels, wall plates, and data centers where multiple standards may coexist.
  • High-quality IDC contacts: IDC contacts are made from phosphor bronze with tin plating, delivering dependable contact reliability and solid signal integrity over many terminations. This combination provides robust insertion force, low contact resistance, and long-term performance in dense installations where connections may be made and remade repeatedly.
  • Gold-plated nose contacts for superior durability: Nose contacts feature 50-micron gold plating over a 100-micron nickel underplating. The gold layer resists corrosion and wear, helping maintain signal quality in high-density environments and extending the life of the jack through repeated terminations and terminations reassignments.
  • Easy terminations with a 110 tool: Designed for fast, dependable terminations using a standard 110 punch-down tool. The precise contact alignment and snug fit help ensure clean, repeatable terminations, reducing install time and operator fatigue on large-scale deployments.
  • Strain relief with termination retention cap and visibility: The termination retention stuffer cap provides reliable strain relief to keep conductors securely in place. The bright yellow color helps with quick identification in racks and panels, enabling efficient testing, troubleshooting, and future rework when needed.

Technical Details of Black Box GigaBase2 CAT5e Jack

  • Wiring compatibility: Universal wiring support for both T568A and T568B standards, with clear labeling to guide exact pair placement.
  • Material and plating: IDC contacts are phosphor bronze with tin plating for robust electrical performance and corrosion resistance.
  • Nose contact plating: 50-micron gold plating over 100-micron nickel underplating to maximize conductivity and longevity under repeated terminations.
  • Termination method: Optimized for use with a standard 110 punch-down tool for fast, consistent terminations.
  • Cap and strain relief: Termination retention stuffer cap provides reliable strain relief to protect wire integrity at the termination point.
  • Color and packaging: Bright yellow color with a 25-pack quantity for bulk installations and easy color-coding across networks.
  • Product category: CAT5e keystone jack suitable for patch panels, faceplates, wall outlets, and other modular network installations.
  • Applications: Ideal for enterprise networks, data centers, offices, classrooms, and home offices requiring dependable CAT5e performance and quick, repeatable terminations.

how to install Black Box GigaBase2 CAT5e Jack

  • Prepare the cable by stripping back the outer jacket and exposing the twisted pairs without nicking the copper conductors. Leave enough insulation to insert fully into the IDC contacts. Maintain the twist length close to the termination point to preserve signal integrity.
  • Choose the wiring scheme (T568A or T568B) based on the rest of the network, and align the color-coded pairs with the jack’s printed guide. The universal wiring labeling on the jack helps ensure you place each conductor in the correct slot.
  • Insert each conductor into its corresponding IDC slot with steady pressure. Use a standard 110 punch-down tool to drive the conductors firmly into the contacts until the stuffer cap is seated and the wires are captured securely.
  • Engage the termination retention stuffer cap to provide strain relief. This cap locks the conductors in place, preventing movement that could degrade the connection over time and with network activity.
  • Inspect the termination visually for any loose strands or misaligned wires. If available, test with a cable tester to verify correct pinout and continuity before mounting the jack in a patch panel, wall plate, or surface-mounted faceplate.

Frequently asked questions

  • Q: What does universal wiring mean for this CAT5e jack? A: Universal wiring means the jack supports both T568A and T568B wiring schemes, and it’s labeled to guide the user to terminate wires correctly in either configuration. This makes it versatile for diverse network environments and simplifies upgrades or reconfigurations.
  • Q: How many jacks are in a pack? A: This product is sold as a 25-pack, offering bulk convenience for large installations, multi-port patches, and consistent color-coding across panels and racks.
  • Q: Why is gold plating on the nose contacts important? A: Gold plating reduces oxidation and wear, helping to maintain low contact resistance and stable signal integrity over time, especially in high-density terminations and frequent re-terminations.
  • Q: What tool do I need to terminate these jacks? A: A standard 110 punch-down tool is recommended for clean, reliable terminations with the IDC contacts on these jacks.
  • Q: Is yellow color coding significant? A: Yes. The yellow color helps with quick visual identification in crowded panels, making it easier to manage cable runs, perform testing, and rework without confusion.
