Description
This industrial-grade converter delivers rugged, reliable, and secure serial data transmission by translating traditional RS-232/RS-422/RS-485 signals into a fiber-optic path. Built for harsh environments and mission-critical networks, it provides opto-isolation to protect control systems from voltage transients, EMI, and ground loops while enabling long-distance communication over single-mode fiber. Encased in a robust IP30-rated enclosure, this converter is purpose-built for electrical substations, industrial automation, and smart-grid applications. Its design aligns with stringent IEC and IEEE specifications, ensuring seamless interoperability with modern substation IEDs and control systems while preserving data integrity in noisy environments. If your facility demands dependable, EMI-free data transfer between equipment located across rooms or yards, this converter is engineered to meet those needs with durability and ease of deployment.
- Opto-isolated data path: The converter provides galvanic isolation between the host serial equipment and the fiber link, dramatically reducing the risk of ground loops and electrical interference that can compromise data integrity in industrial settings.
- Single-mode SC fiber interface for long-distance links: The device uses a single-mode SC connector to support extended reach over fiber networks, enabling reliable communication between distributed devices, remote I/O, and subsystems without degradation.
- Rugged IP30 enclosure for harsh environments: Designed to withstand dust and industrial conditions, the enclosure enables safe operation on the factory floor, in control cabinets, or in substation environments where space and protection are critical.
- IEC 61850-3 and IEEE compliant: Built to meet the stringent requirements of electrical substations and smart-grid deployments, ensuring compatibility with IEC standards and IEEE-based automation schemes used in critical infrastructure.
- Wide compatibility with common serial interfaces: Supports standard serial signaling such as RS-232, RS-422, and RS-485, allowing straightforward integration with a broad range of PLCs, controllers, data loggers, and equipment that rely on traditional serial communication.

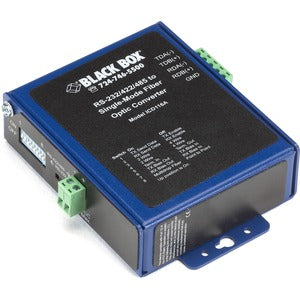

Technical Details of Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
- Enclosure and build: IP30-rated rugged enclosure designed for industrial environments, providing dust protection and physical robustness suitable for panel mounting or in- cabinet installation.
- Interface options: Serial input supports common signaling methods (RS-232, RS-422, RS-485) to accommodate diverse host equipment and network architectures.
- Fiber connectivity: Single-mode SC fiber optic output for long-haul or distributed network topologies, enabling high-reliability transmission over extended distances without electromagnetic interference.
- Isolation and protection: Opto-isolated data path protects critical controllers and I/O from electrical transients, surges, and noise typical in industrial and substation environments.
- Standards and compatibility: Engineered to meet IEC 61850-3 and related IEEE standards, ensuring compatibility with substation equipment, IEDs, and automation systems used in modern power networks.
- Applications: Ideal for electrical substations, process automation, remote monitoring, and factory-floor networks where secure, long-distance serial-to-fiber communication is essential.
- Performance characteristics: Delivers reliable data transmission with low latency and consistent signal integrity across challenging environments, while enabling easy integration into existing fiber and serial networks.
how to install Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Step 1 — Plan and prepare: Determine the installation location that provides adequate airflow, protection from direct exposure to moisture, and a stable mounting surface. Confirm that the chosen site has access to the serial host equipment and a fiber run to the remote device. Have your serial parameters ready (protocol, baud rate, parity, stop bits) to ensure a smooth configuration process.
Step 2 — Mount the unit: Secure the converter in an appropriate panel, cabinet, or rack-friendly enclosure. Use the provided mounting hardware and ensure the unit is oriented to minimize cable strain and maximize accessibility for maintenance and diagnostics. Verify that the IP30-rated cover remains in place to preserve dust protection.
Step 3 — Connect the serial host device: Attach the host equipment to the converter’s serial interface using the appropriate cable (RS-232, RS-422, or RS-485). Ensure correct pinouts and that signal levels match the serial interface you are converting. Configure the host device to match the converter’s serial settings (baud rate, data bits, parity, and stop bits) to establish a reliable link.
Step 4 — Connect the fiber link: Attach a single-mode fiber cable to the SC connector on the converter and route it to the remote device. Ensure the fiber is clean, properly terminated, and free of excessive bending or tension that could degrade signal quality. If replacing existing fiber, verify compatibility with the remote unit and test continuity before powering up.
Step 5 — power up and verify operation: Provide the appropriate power supply to the converter as specified by the model, and power on the system. Use the status indicators to confirm a healthy link: a stable fiber link, a healthy serial link, and proper isolation status. Perform a basic exchange test by transmitting sample data from the host to the remote device and back, ensuring data integrity and timing meet your application requirements.
Step 6 — configure and document: Document the installation, including serial settings, fiber path, and test results. If your network uses IEC 61850-3 or IEEE-based configurations, validate that the converter is recognized by substation or automation software and that the data exchange aligns with your protection, control, and monitoring strategies.
Step 7 — maintenance and safety checks: Periodically inspect the enclosure for dust buildup and ensure cable connections remain secure. Check for signs of wear on fiber, verify link indicators, and recalibrate or reconfigure serial settings if field conditions change or if you upgrade host equipment.
