Description

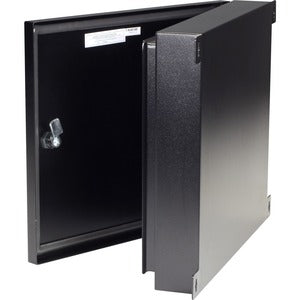

Black Box JPM4000 Series NEMA-4 Rated Fiber Optic Wallmount Enclosure - 4-Slot
Engineered for dependable fiber connectivity in challenging environments, the Black Box JPM4000 Series is a rugged NEMA-4 rated wallmount enclosure designed to protect critical fiber optic infrastructure. This 4-slot enclosure accommodates up to four fiber adapter panels and includes a dedicated area to mount a splicing tray, delivering organized cable management, secure access, and reliable performance in spaces prone to moisture, dust, and vandal exposure. Built to withstand harsh conditions while offering easy installation, the JPM4000 series is the ideal solution for data centers, telecom rooms, basements, and below-ground facilities where water intrusion is a real concern. Whether you’re deploying new fiber drops or consolidating existing terminations, this enclosure keeps your network resilient, scalable, and neatly organized.
- Durable, weather-resistant protection: With a NEMA-4 rating, the JPM4000 Series enclosure keeps dust, water, and corrosion at bay, ensuring dependable fiber terminations in basement utility rooms, garages, and other moisture-prone environments where leakage and seepage are common concerns.
- 4-slot capacity plus splicing tray area: Designed to hold up to four fiber adapter panels while providing a dedicated space to mount a splicing tray, this enclosure supports orderly fiber terminations, tidy cable routing, and straightforward future upgrades without sacrificing accessibility.
- Secure, gasketed access: A single rubber gasket door paired with a hex nut security lock provides controlled access to sensitive fiber connections, reducing tampering risk while maintaining environmental protection against dust and moisture ingress.
- Flexible wall-mount on solid surfaces: Ideal for mounting on cinder block, concrete, or other masonry walls, the JPM4000 is well-suited for installations in basements, utility rooms, or electrical closets where wall space is fixed and stability matters.
- Moisture-ready for below-ground installations: Built to excel in basements and below-ground floors, this enclosure helps safeguard fiber connectivity in spaces prone to water leakage and damp conditions, ensuring long-term reliability for critical networks.
Technical Details of Black Box JPM4000 Series NEMA-4 Rated Fiber Optic Wallmount Enclosure - 4-Slot
- Enclosure type: Fiber optic wallmount enclosure designed for mounting four adapter panels
- NEMA rating: NEMA-4 rated for protection against windblown dust and rain, suitable for indoor and some outdoor applications
- Slot capacity: Supports up to four fiber adapter panels to accommodate multiple fiber terminations
- Splice tray compatibility: Includes an area to mount a splicing tray to organize loose fiber and splice points
- Access and security: Features a single rubber gasket door with hex nut security lock to deter unauthorized access
- Mounting considerations: Intended for mounting on solid surfaces such as cinder block walls, concrete, or masonry for stable installation
- Environmental suitability: Particularly effective in basements and below-ground spaces where moisture intrusion can occur
- Industry use: Ideal for data centers, telecom rooms, network closets, and field deployments requiring reliable fiber protection
How to Install Black Box JPM4000 Series NEMA-4 Rated Fiber Optic Wallmount Enclosure
- 1. Plan the installation: Select a dry, stable wall location with sufficient space for four adapter panels, a mounting area for a splicing tray, and convenient cable routing to enter and exit the enclosure.
- 2. Prepare the mounting surface: For masonry walls (cinder block, concrete), use appropriate anchors and screws rated for the wall material and the weight of the enclosure when populated with panels and cables. Ensure the surface is clean and free of obstructions.
- 3. Mark and drill anchor points: Hold the enclosure in place and mark the anchor point locations. Drill pilot holes and install masonry anchors if mounting to brick or concrete surfaces. For wood or drywall-backed walls, use suitable hardware (not included) rated for wall thickness and load.
- 4. Mount the enclosure: Secure the JPM4000 to the wall with the appropriate fasteners, ensuring the door remains accessible and the enclosure sits flush against the surface. Tighten screws evenly to maintain the gasket seal and preserve environmental protection.
- 5. Plan internal layout: Arrange fiber adapter panels and route cables to the splicing tray area. Remove knockouts as needed to accommodate entry and exit paths for fiber lines, ensuring smooth bends and avoiding strain on the connectors.
- 6. Install adapter panels and splicing tray: Install up to four adapter panels in the designated slots. Mount the splicing tray in its allotted area, secure with any included hardware, and neatly organize splices and pigtails to minimize excess cable length inside the enclosure.
- 7. Route and label cables: Route incoming and outgoing fiber cables using cable managers or ties to prevent tangling. Label each fiber leg for easy identification during maintenance or future expansions.
- 8. Seal and verify: Close the gasketed door, engage the hex nut lock, and confirm that the seal remains intact to protect against dust and moisture. Perform a basic integrity check to ensure all panels are securely fastened and that there is no excessive movement of panels or cables.
- 9. Documentation and testing: Document the installed configuration, including panel positions and fiber identifiers. If applicable, run a basic continuity or insertion loss test to verify proper terminations before commissioning the network.
Frequently asked questions
- What is the JPM4000 Series enclosure? A NEMA-4 rated fiber optic wallmount enclosure designed to hold up to four fiber adapter panels with space for a splicing tray, enabling organized fiber terminations in wall-mounted configurations.
- Where is it best used? It is ideal for basements, utility rooms, electrical closets, and other below-ground or moisture-prone spaces where reliable fiber protection is critical and wall mounting is preferred.
- How many adapter panels can it hold? The JPM4000 Series accommodates up to four fiber adapter panels, providing versatile terminations for multiple fiber links in a single enclosure.
- How does the security feature work? The enclosure uses a rubber gasket door with a hex nut security lock to deter unauthorized access while maintaining environmental protection against dust and moisture ingress.
- What maintenance or care does it require? Regularly inspect the door gasket for wear, verify that all panel screws are tight, ensure cables are neatly routed to prevent strain, and perform periodic continuity checks on fiber links as part of routine network maintenance.
