Description

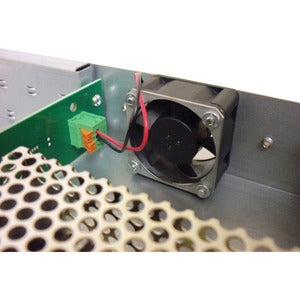

Meet the compact, high‑efficiency cooling solution built for Black Box KVM extender systems. The Black Box KVM Extender Chassis Fan for ACXMODH6 is designed to fit tight chassis footprints while delivering steady, reliable airflow to prevent thermal throttling and promote consistent performance. With a small 40 x 40 mm footprint and a disciplined acoustic profile, this fan keeps your ACXMODH6-based KVM extenders cool without intruding on your workspace. Whether you’re outfitting a data center, a server closet, or a busy IT office, this dedicated chassis fan helps maintain optimal temperatures for uninterrupted operation.
- Optimized for compact chassis cooling: Specifically engineered to fit inside ACXMODH6 chassis and related models, this 40x40 mm fan delivers dependable cooling where space is at a premium, ensuring critical components stay within safe thermal margins without crowding the enclosure.
- High‑rpm performance for rapid heat dissipation: Operating at 7200 RPM, this fan moves heat quickly away from hot components, helping to maintain stable performance during demanding workloads and extended uptime scenarios.
- Consistent airflow with measurable impact: Capable of moving 8.9 cubic feet of air per minute (CFM), the fan provides effective convection to minimize hotspots inside the chassis and keep the internal environment balanced.
- Balanced acoustics for quiet operation: With a rated noise level of 25.5 dBA, the fan maintains a discreet presence in office spaces or data rooms, so cooling happens without becoming a distraction during normal operations.
- Plug‑and‑play compatibility with key Black Box chassis: Designed for seamless integration with ACXMODH6FPAC-R2 and ACXMOD6BPAC-R2 chassis, making replacement and maintenance straightforward and minimizing downtime.
Technical Details of Black Box KVM Extender Chassis Fan for ACXMODH6
- Fan size: 1.6" x 1.6" (40 x 40 mm)
- Speed: 7200 RPM
- Airflow: 8.9 CFM
- Noise: 25.5 dBA
- Compatibility: ACXMODH6FPAC-R2 and ACXMOD6BPAC-R2 chassis
how to install Black Box KVM Extender Chassis Fan for ACXMODH6
- Power down and unplug equipment: Ensure the entire KVM system is powered off and unplugged from electrical outlets before starting installation to prevent any electrical shock or damage.
- Open the chassis access area: Remove the chassis cover or access panel as required by the ACXMODH6 chassis design to reach the mounting site for the fan.
- Position and align the fan: Place the 40 x 40 mm fan in its designated mounting location within the ACXMODH6FPAC-R2 or ACXMOD6BPAC-R2 chassis. Align mounting holes with the chassis to ensure a secure fit and proper airflow direction toward heat‑generating components.
- Secure with screws: Use the appropriate screws provided for the chassis or fan mounting to fasten the fan firmly. Avoid overtightening to prevent damage to the frame or fan blades.
- Connect power and verify operation: Connect the fan to the chassis fan header or appropriate power/thermally controlled connector as specified by the chassis documentation. Restore power, then observe the fan briefly to confirm smooth operation and proper airflow without abnormal vibration or interference.
Frequently asked questions
- What is the purpose of the Black Box KVM Extender Chassis Fan for ACXMODH6? It provides targeted cooling for Black Box ACXMODH6 KVM extender chassis, helping to dissipate heat from critical components and maintain performance and reliability in compact enclosures.
- What are the physical dimensions of the fan? The fan measures 1.6" x 1.6" (40 x 40 mm), designed to fit tightly within the specified ACXMODH6 chassis models.
- What is the cooling capacity? The fan runs at 7200 RPM and moves about 8.9 CFM, delivering strong airflow to reduce thermal buildup inside the chassis.
- How loud is the fan during operation? The fan operates at approximately 25.5 dBA, providing cooling with a relatively low noise footprint suitable for office and data center environments.
- Which chassis models are compatible? This fan is designed to be used with ACXMODH6FPAC-R2 and ACXMOD6BPAC-R2 chassis, ensuring easy integration and replacement within those systems.
- Is installation difficult? Not at all. The fan is designed for straightforward mounting in approved ACXMODH6 chassis, with standard mounting holes and a typical 2‑wire or 3‑wire power connection depending on the chassis, making replacement simple and fast.
- Can this fan improve reliability in high‑load scenarios? Yes. By promoting efficient heat removal, it helps maintain stable operating temperatures, which can reduce thermal throttling and extend component life during sustained workloads.
