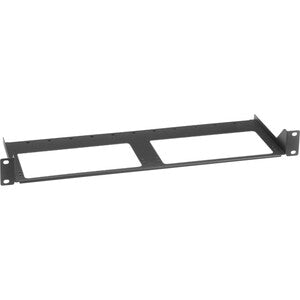

Black Box KVX Series Dual-Head Extender Rackmount Tray

Black BoxSKU: 6283669

Price:
Sale price$160.74

Description

Black Box KVX Series Dual-Head Extender Rackmount Tray

Efficiently organize and deploy your KVX Series Dual-Head Extenders with the Black Box Rackmount Tray. Designed to simplify KVM expansion in professional settings, this tray accommodates up to two KVX Series Dual-Head Extenders—whether you’re mounting transmitters, receivers, or a mix of both—within standard 19-inch racks or cabinets. Built for reliability in data centers, broadcast environments, classrooms, healthcare facilities, and enterprise IT spaces, this rackmount tray helps you streamline cabling, maximize space, and ensure scalable, future-ready KVM performance.

  • Mount up to two KVX Series Dual-Head Extenders (transmitters and/or receivers) in a single 19-inch rack or cabinet, with support for both 2-post and 4-post rack configurations.
  • Compatibility with KVX Series KVM Dual-Head Extenders, including transmitters and receivers such as KVXLC-200, enabling seamless integration into existing KVX deployments.
  • Rigid metal rack-mount chassis engineered for dependable, long-term usage in busy IT environments, with secure mounting and neat cable management to maintain signal integrity.
  • Compact, space-saving design that consolidates multiple extenders into one rack-friendly enclosure, simplifying upgrades, replacements, and relocations without sacrificing performance.
  • Ideal for professional setups requiring scalable KVM extension across small to large facilities—data centers, control rooms, editorial suites, classrooms, and enterprise IT rooms.

Technical Details of Black Box KVX Series Dual-Head Extender Rackmount Tray

  • Compatibility: Designed to work with KVX Series Dual-Head Extenders (transmitters and receivers), including models such as KVXLC-200 and related KVX Dual-Head components.
  • Rack compatibility: Supports installation in both 2-post and 4-post 19-inch racks or cabinets, enabling flexible mounting in diverse environments.
  • Mounting capacity: Accommodates up to two KVX Dual-Head Extenders in a single tray for compact, consolidated deployments.
  • Form factor: 19-inch rack-mount tray tailored for standard network/AV rack systems, delivering a clean, professional look with straightforward installation.
  • Construction: Robust metal chassis designed for durability in busy rack environments and to provide dependable mechanical support for fully-loaded extenders.

How to install Black Box KVX Series Dual-Head Extender Rackmount Tray

  • Power down all connected equipment and disconnect cables before beginning installation.
  • Select a suitable 19-inch rack or cabinet with enough depth and front-to-back clearance for two KVX extenders and the tray’s mounting hardware.
  • Attach the rackmount tray to the chosen rack rails using the provided screws or hardware compatible with your rack type (2-post or 4-post). Ensure the tray is level and securely fastened.
  • Install up to two KVX Series Dual-Head Extenders onto the tray. Align mounting holes and secure each extender with the appropriate hardware, ensuring stable seating and proper grounding as required by your installation standards.
  • Route KVM, power, and auxiliary cables through the tray’s cable management paths or adjacent cable channels, maintaining separation between power and data lines to minimize interference. Use cable ties or Velcro straps to keep cables organized and unobstructed for airflow.
  • Reconnect power and data sources, verify connectivity, and power up the extenders. Test the KVM extension to confirm video, audio (if applicable), and peripheral functionality across the configured extenders.

Frequently asked questions

  • Q: How many KVX Dual-Head Extenders can the rackmount tray hold?
  • A: The tray is designed to hold up to two KVX Series Dual-Head Extenders (transmitters and/or receivers).
  • Q: What rack configurations are supported?
  • A: It supports 2-post and 4-post 19-inch racks or cabinets, offering flexible mounting in standard rack environments.
  • Q: Which KVX extenders are compatible?
  • A: The tray is compatible with KVX Series KVM Dual-Head Extenders, including transmitters and receivers such as KVXLC-200 and related KVX dual-head models.
  • Q: Is special tooling required for installation?
  • A: Standard rack-mounting hardware provided with the tray or compatible with your rack should be sufficient; follow general best practices for securing equipment in racks.
  • Q: Can this tray improve cable management and airflow?
  • A: Yes. The tray is designed to consolidate extenders and support tidy cable routing, which helps maintain orderly cables and can contribute to better airflow and ease of maintenance.
