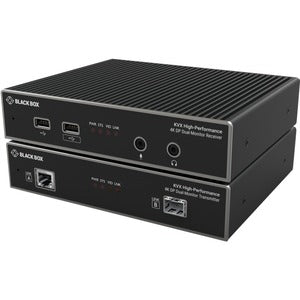

Black Box KVXHP-200 KVM Extender

The Black Box KVXHP-200 KVM Extender is a premier solution for extending keyboard, video, and mouse signals across long distances using either CATx copper or fiber optics. Engineered for demanding environments such as data centers, control rooms, broadcast facilities, and industrial labs, this extender delivers reliable dual-monitor support, true 4K DisplayPort video, and versatile peripheral connectivity with minimal latency. It enables administrators and operators to manage remote servers and workstations from a single, comfortable local workstation as if they were physically nearby.

• Dual-monitor 4K DisplayPort support: Experience immersive, high-resolution output across two displays with crisp color fidelity, smooth motion, and dependable video performance that keeps up with fast-paced workflows.
• Flexible transmission over CATx or fiber: Choose the medium that suits your facility—copper CATx for cost-effective runs or fiber for longer reaches—without sacrificing performance or reliability.
• Integrated USB 2.0 hub: Seamlessly share USB peripherals such as keyboards, mice, flash drives, and other USB devices between the local and remote hosts without bottlenecks or compatibility issues.
• Serial console access: Maintain and manage legacy equipment with a robust RS-232 serial interface, enabling remote console control and diagnostics when needed.
• Professional-grade reliability and ease of use: Designed for plug-and-play deployment with durable construction, hot-swappable components, and straightforward setup to minimize downtime in critical environments.

Technical Details of Black Box KVXHP-200 KVM Extender

• Media support: Extends KVM signals over CATx copper or fiber optic links, allowing flexible infrastructure integration.
• Video capability: Supports dual-monitor configurations with 4K DisplayPort video for high-resolution, multi-display workspaces.
• USB connectivity: Built-in USB 2.0 hub enables quick peripheral sharing across local and remote locations.
• Serial interface: RS-232 console access for legacy devices and remote management tools.
• Display and input synchronization: Maintains synchronized video and input signals to deliver a cohesive user experience across distances.
• Compatibility: Works with standard KVM setups, compatible hosts, keyboards, mice, and DisplayPort displays to support typical IT and broadcast workflows.
• Reliability features: Designed for continuous operation in demanding environments with robust shielding, EMI resistance, and dependable performance over long cables.
• Installation characteristics: Built for straightforward deployment with modular components and clear cable routing to minimize setup time.

How to install Black Box KVXHP-200 KVM Extender

Installing the KVXHP-200 is a straightforward process designed to minimize downtime and maximize uptime in mission-critical environments. Follow these general steps to achieve a reliable, high-performance KVM extension setup:

• Plan your topology by selecting CATx copper or fiber as your transmission medium and determining the distance between the local (host) and remote (display and peripheral) sites. Consider rack placement, power availability, and environmental conditions to ensure optimal operation.
• Connect the local KVM host to the transmitter unit using standard DisplayPort video cables, USB cables for keyboard and mouse, and any required USB devices. Verify that the host recognizes the input devices and that the DP output matches the expected display configuration.
• Connect the receiver unit to the remote displays via DisplayPort cables and attach USB peripherals to the receiver’s USB 2.0 hub. If serial management is required, connect the RS-232 console cables to the remote equipment as needed.
• Link the transmitter and receiver using the selected CATx cables or fiber optic modules. If fiber is used, ensure any transceivers or SFP modules are properly seated and the link is established according to the product documentation.
• Power on the units and perform a basic validation: confirm both displays show the expected content, peripherals respond to input, and serial access operates as intended. Fine-tune display arrangements and input camera alignment if you’re integrating with complex multi-monitor layouts.

Frequently asked questions

• Q: What is the Black Box KVXHP-200 KVM Extender designed to do?
  A: It is engineered to extend keyboard, video, and mouse signals over CATx copper or fiber, supporting dual 4K DisplayPort displays, a USB 2.0 hub for peripherals, and a serial console for remote management across distance.
• Q: What display configurations does it support?
  A: It supports dual-monitor setups with 4K DisplayPort video, providing high-resolution output suitable for detail-rich workflows and multi-display tasks.
• Q: What peripherals can be used with the KVXHP-200?
  A: A USB 2.0 hub is included to enable standard peripherals such as keyboards, mice, storage devices, and other USB devices at the remote site.
• Q: Can I manage legacy equipment remotely?
  A: Yes, the built-in serial interface allows remote console management and control for legacy or specialized equipment requiring RS-232 access.
• Q: Is installation difficult or time-consuming?
  A: The system is designed for straightforward deployment with modular components and standard cabling, allowing IT teams to install and validate quickly with minimal downtime.
