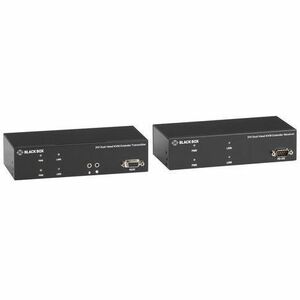

Black Box KVXLCF-200-R2 KVM Extender

The Black Box KVXLCF-200-R2 KVM Extender is a powerful and versatile solution designed to allow users to control servers or computers remotely without sacrificing performance. Ideal for a wide range of applications, such as transportation control centers, medical facilities, and industrial warehouses, this KVM extender utilizes fiber cable technology to extend keyboard, video, and mouse signals efficiently. With the ability to operate devices from distances of up to 30 kilometers, the KVX DVI-D KVM Extender stands out for its exceptional functionality and ease of use.

• Extended Range and Versatility: The KVX DVI-D KVM Extender is capable of supporting connections over both single-mode and multimode fiber cables, allowing users to extend their signals up to 30 km depending on the SFP used, fiber type, and bandwidth.
• Single and Dual Monitor Support: Choose between single-monitor or dual-monitor configurations to suit your specific needs. The extender requires just one fiber connection for single-monitor use and two connections for dual-monitor setups.
• Ready-to-Use Solution: Out of the box, the KVXLCF-200-R2 comes with all necessary PC connection cables, ensuring immediate setup and use without the hassle of purchasing additional accessories.
• Local Video Monitoring: The KVM extender features a local video loopback that allows users to monitor an additional display at the transmitter side, providing real-time observation of connected PCs.
• Comprehensive Device Compatibility: Designed for versatility, the KVX extender supports EDID pass-through, bi-directional audio via speaker/mic connections, and transparent USB 2.0 extensions for HID and mass storage devices, ensuring a broad range of compatible devices.

Technical Details of the Product

• Maximum Distance: Up to 30 km (based on the SFP, fiber type, and bandwidth)
• Video Resolution: Supports DVI-D resolution up to 1920x1200 at 60 Hz
• Local Video Port: Local DVI port loopback for monitoring on the transmitter (TX) unit
• Peripheral Support: RS-232 peripheral (serial) device support
• Audio Support: Bi-directional audio via speaker/mic connection
• USB Support: Transparent USB 2.0 extension supports HID devices and mass storage devices
• Compliance: TAA compliant
• Technical Support: Free lifetime technical support

How to Install the KVXLCF-200-R2 KVM Extender

1. Unpack the KVM Extender along with all included accessories.
2. Connect the transmitter unit to your local computer using the provided PC connection cables.
3. If using a dual-monitor setup, ensure that the second fiber cable is connected for the additional monitor.
4. Connect the receiver unit to your remote display and input devices such as keyboard and mouse.
5. Securely connect the fiber cables between the transmitter and receiver units.
6. Power on both units and check for video display. Adjust settings for optimal resolution if necessary.
7. For additional functionality, connect any RS-232 devices, USB peripherals, or audio connections as needed.
8. Enjoy seamless control of your remote server or computer setup!

Frequently Asked Questions

• What is the maximum distance I can extend the KVM signals? You can extend the signals up to 30 km, depending on the type of fiber cable and SFP used.
• Can I use dual monitors with the KVXLCF-200-R2? Yes, the KVX extender supports dual-monitor setups with two separate fiber connections.
• Is the KVM extender compatible with my existing devices? The KVXLCF-200-R2 is designed to work with a wide range of devices, supporting DVI-D video, USB devices, and RS-232 peripherals.
• What do I do if I encounter technical issues? The KVX extender comes with free lifetime technical support to assist you with any issues you may face.
• Is the product compliant with government regulations? Yes, the KVXLCF-200-R2 is TAA compliant, making it suitable for federal government applications.
