Description

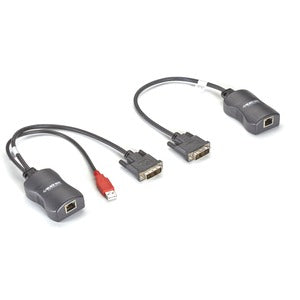

Elevate your display setup with a dependable DVI extension solution that travels farther and delivers crisper, uncompressed video without compromising image fidelity. The Black Box Line-Powered Extender Kit enables you to send DVI video to remote displays over a single CATx cable, turning conference rooms, classrooms, control rooms, and digital signage into scalable, flexible environments. Designed for simplicity and reliability, this plug-and-play system is ideal when you need a clean, professional delivery of high-definition digital video across distances where standard HDMI or VGA extenders fall short. Whether you’re expanding a corporate boardroom, outfitting a classroom for modern instruction, or managing a multi-room exhibit, this extender kit keeps your content sharp and synchronized from source to screen.
- Plug-and-play, hassle-free installation. The Black Box extender kit is engineered for quick setup with minimal configuration. Connect your DVI source to the local transmitter, run a single CATx cable to the remote receiver, and attach your DVI display. The system self-initializes, delivering a ready-to-use, stable link in minutes. This streamlined process helps IT teams deploy multi-display configurations rapidly in busy environments, reducing downtime and ensuring a consistent user experience across rooms and campuses.
- Uncompressed DVI for pristine video quality. Unlike compression-based solutions, this extender transmits uncompressed DVI signals, preserving every detail of your graphics, video, and text. Expect crisp edges, accurate color reproduction, and smooth motion at standard workstation and media resolutions. For professional applications where image fidelity matters—graphic design, medical imaging, or finance dashboards—the absence of compression artifacts is a key advantage.
- Extended reach over a single CATx cable. Take your displays beyond the limits of short HDMI or VGA runs. The kit supports distances up to 164 feet (50 meters) over a single CATx cable, enabling you to place remote monitors in the most convenient locations without sacrificing image quality. This capability is especially valuable in auditoriums, large classrooms, showroom floors, or control rooms where cable management and clean aesthetics are essential.
- Line-powered design with no bulky external supply needed at the displays. This extender kit uses line-powered operation, reducing clutter at the remote display end and simplifying installation. With no need for heavyweight power bricks at the display, you can position screens more flexibly and maintain a tidy, professional look. Note that power requirements follow the kit’s specifications, so both transmitter and receiver are powered through their intended lines.
- Versatile, reliable performance for multiple uses. Whether you’re broadcasting high-resolution corporate presentations, training material, or real-time data visualizations, this DVI Over CATx extender provides dependable performance across meeting rooms, classrooms, labs, and digital signage deployments. Its robust digital path minimizes latency, keeping your input and display in sync for live demonstrations, interactive kiosks, or multi-display video walls. The straightforward, durable design makes it suitable for daily use in demanding environments.
Technical Details of Black Box Line-Powered Extender Kit - DVI Over CATx
- Signal type: Uncompressed DVI digital video, preserving full image fidelity from source to display.
- Maximum resolution: Supports up to 1920x1200 at 60 Hz, delivering sharp, detailed visuals for standard and high-definition content.
- Distance capability: Extends video up to 164 ft (50 m) over a single CATx cable, allowing flexible room layouts and screen placement.
- Cable type: Uses a single CATx cable for the video path, simplifying installations and reducing cabling complexity.
- Power characteristics: Line-powered design; external power supplies are not required at the remote display end (power method per kit specifications).
- Form factor: Compact, plug-and-play hardware designed for desktop or mounting applications in professional environments.
- System architecture: Transmitter and receiver pair that work in concert to extend DVI signals across a single CATx link with minimal setup.
- Compatibility: Optimized for DVI sources and displays; intended to deliver reliable performance in business, education, and digital signage contexts.
- Reliability: Engineered for stable operation in typical office and classroom conditions, with a focus on consistent video delivery and user-friendly maintenance.
- Installation requirements: Standard CATx cable and appropriate power provisions per kit instructions; no specialized tools required for basic deployment.
How to install Black Box Line-Powered Extender Kit - DVI Over CATx
- Prepare the equipment: Ensure both local transmitter and remote receiver units are on hand, along with the supplied CATx cable and any power adapters included in the kit. Confirm that your DVI source device and the target display are powered off before wiring begins to avoid any initialization issues.
- Connect the DVI source to the transmitter: Attach the DVI output from your computer, media player, or graphics workstation to the transmitter’s DVI input. Verify a secure connection and ensure that the source is configured for the desired resolution (up to 1920x1200 at 60 Hz) to maximize image quality.
- Link the transmitter to the receiver over CATx: Run a single CATx cable from the transmitter’s CATx port to the receiver’s corresponding port. Use a cable that meets the CATx standard recommended by the manufacturer to ensure a clean, interference-free signal.
- Connect the display to the receiver: Attach the DVI input of your remote monitor or display device to the receiver’s DVI output. Make sure the display is capable of, and set to, the supported resolution and refresh rate.
- Power up and test: Power both units according to the kit’s guidelines. Turn on the DVI source and the display. If necessary, adjust display settings to ensure proper scaling, color, and timing. Confirm that the image is clear and that there is no signal degradation or artifacts.
- Calibration and quick checks: If you notice any flicker or color imbalance, re-seat the CATx cable, verify that both ends are firmly connected, and re-test at the intended distance. For multi-display deployments, consider testing one link at a time before cascading to additional displays to ensure stability across the system.
Frequently asked questions
- What is the maximum resolution supported? The extender supports up to 1920x1200 at 60 Hz, providing ample clarity for most business graphics, applications, and multimedia content.
- How far can I extend DVI over CATx? You can extend the DVI signal up to 164 feet (50 meters) using a single CATx cable, making it suitable for rooms and spaces with challenging layouts.
- Do I need an external power supply? The kit is line-powered, and external power supplies are not required for normal operation on the remote end. Always follow the kit’s power guidelines to ensure stable performance.
- Is the video uncompressed? Yes. The system transmits uncompressed DVI, preserving image quality and reducing artifacts associated with compression-based extenders.
- Is installation difficult? No. The extender kit is designed for plug-and-play setup. With a single CATx cable and standard DVI connections, most users can complete a basic installation in minutes.
- What are typical use cases? Ideal for conference rooms, training facilities, classrooms, control rooms, digital signage, and any scenario requiring reliable high-quality DVI extension over a single cable.
