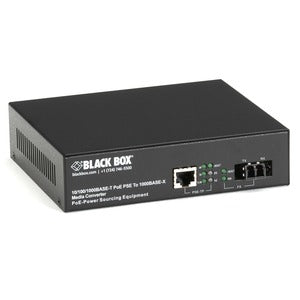

Black Box LPS500 Transceivers/Media Converter

The Black Box LPS500 Transceivers/Media Converter is a cutting-edge device engineered to optimize the connection between your copper and fiber optic networks. By successfully merging various transmission mediums, this versatile product plays a crucial role in modern network setups. With Power over Ethernet (PoE) capabilities, the LPS500 not only enhances network reach but also simplifies the powering of devices, making it an indispensable tool for any tech-savvy organization.

• Seamless Integration: The Black Box LPS500 ensures uninterrupted connectivity between Gigabit-speed fiber optic cables and 10-/100-/1000-Mbps copper UTP segments, effortlessly extending your network beyond the conventional 100-meter limit.
• Power over Ethernet (PoE): This innovative media converter acts as power sourcing equipment (PSE) for 802.3af devices, allowing you to power critical devices such as security cameras and wireless access points over the same CAT5 cabling used for data transmission.
• Intelligent Power Management: The LPS500 is equipped with advanced power management features, including overcurrent protection, undercurrent detection, and minimum load sensing, ensuring both the safety and reliability of your network while minimizing the risk of equipment damage.
• Link Fault Pass-Through (LFP): Built-in link fault pass-through capabilities continuously monitor the fiber and copper ports for any signal disruptions, automatically disabling the transmit signal on the inactive port to safeguard against data loss during connectivity issues.
• Robust Data Handling: Supporting jumbo frames of up to 9 KB in cut-through mode and featuring 802.3x flow control for full-duplex ports, the LPS500 is ideal for high-speed data transmission environments that demand reliability without interruptions.

Technical Details of Product

• Model: Black Box LPS500
• Ports: Gigabit fiber optic and 10/100/1000 Mbps copper UTP
• PoE Standard: 802.3af
• Weight: Lightweight design for easy installation
• Compliance: RoHS and EN62368 compliant

How to Install

Installing the Black Box LPS500 Transceivers/Media Converter is a straightforward process:

1. Connect the fiber optic cable to the appropriate fiber port on the LPS500.
2. Use a CAT5 cable to connect your PoE devices to the copper UTP port on the converter.
3. Ensure you have a power source available for the device (48-VDC) if you're not using PoE.
4. Power on the device and check the LED indicators to confirm successful connections and power feed.
5. Monitor the device for any link faults or power interruptions using the built-in management features.

Frequently Asked Questions

1. What is the maximum distance I can extend my network with the LPS500?
   The Black Box LPS500 allows you to extend your network beyond the standard 100-meter limit of CATx cabling, enabling connections over much longer distances utilizing fiber optics.
2. Can I use the LPS500 with non-PoE devices?
   Yes, the LPS500 can be used to connect non-PoE devices. However, the PoE functionality will not be utilized for those devices.
3. How does the link fault pass-through feature work?
   The link fault pass-through feature monitors both the copper and fiber ports for any signal loss. If a loss is detected on one port, the converter automatically disables transmit signals on the other port to prevent data loss.
4. Is the LPS500 suitable for outdoor use?
   The LPS500 is designed for indoor use. If you require outdoor installation, ensure that it is housed in a suitable protective enclosure.
5. Does the LPS500 support VLAN tagging?
   No, the Black Box LPS500 does not support VLAN tagging as it is primarily a media converter designed for seamless connectivity.
