Black Box LSP422 SFP+ Module

Black BoxSKU: 3230297

Price:
Sale price$343.31

Description

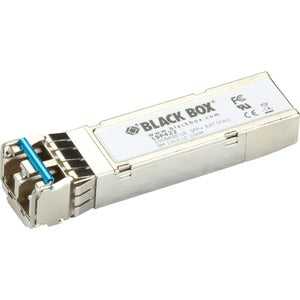

Black Box LSP422 SFP+ Module

The Black Box LSP422 SFP+ Module is a modular, flexible optical transceiver engineered for data communications equipment. This compact, interchangeable solution is designed for rapid deployment and minimal downtime, featuring a robust metal enclosure that helps shield signals from EMI interference in challenging rack environments. When used in a managed platform, the LSP422 supports digital diagnostic capabilities and loopback testing, enabling proactive monitoring and simplified maintenance. Whether you’re upgrading a data center spine, expanding enterprise connectivity, or standardizing across multi-vendor networks, the LSP422 SFP+ Module delivers reliable 10 Gigabit performance with the versatility you need to scale.

  • Modular, Flexible, Hot-Swappable Design

    The LSP422 SFP+ Module is built for interoperability across a broad range of data communications equipment. Its modular form factor allows you to swap in or out transceivers without powering down the host device in supported environments, dramatically reducing planned downtime during upgrades or maintenance. This hot-swappable capability is a cornerstone of elastic network architectures, enabling operators to deploy a uniform 10 Gigabit optical solution across diverse switches, routers, and servers. The compact, standardized SFP+ footprint simplifies inventory management and procurement, while the module’s rugged metal enclosure provides robust mechanical protection and EMI shielding to preserve signal integrity in dense data center racks and high-traffic environments.

  • EMI Shielding and Durable Enclosure

    Constructed with a heavy-duty metal enclosure, the LSP422 is designed to minimize electromagnetic interference and crosstalk, which can degrade optical performance in crowded data centers. The enclosure also contributes to mechanical resilience, resisting bending, vibration, and thermal cycling that can impact long-term reliability. By mitigating EMI, the module helps maintain clean optical paths, supports consistent link quality, and sustains throughput even in racks packed with power and network cables.

  • Digital Diagnostics Monitoring (DDM/DDMI) and Telemetry

    In supported managed platforms, the LSP422 provides digital diagnostic capabilities that monitor optical power, temperature, supply voltage, and other module health metrics in real time. This telemetry enables proactive maintenance, alerting administrators to subtle changes before they affect performance. DDMI (Digital Diagnostics Monitoring Interface) support ensures easy extraction of operational data via standard management software, helping you trend performance, verify link budgets, and plan capacity with confidence.

  • Loopback Testing for Efficient Troubleshooting

    Loopback testing is integral to streamlined network diagnostics. The LSP422 supports loopback modes that let operators verify fiber paths, connection integrity, and device responsiveness without external test equipment. In conjunction with DDMM (digital diagnostics), loopbacks provide a powerful, low-effort way to isolate issues, accelerate fault isolation, and shorten mean time to resolution during routine maintenance or after a device replacement.

  • Broad Compatibility and Reliable Data-Path Performance

    Designed as a versatile SFP+ module for 10 Gigabit Ethernet and related data communications applications, the LSP422 emphasizes vendor-agnostic compatibility within standard SFP+ ecosystems. Its reliability-focused design helps ensure stable, predictable performance when deployed in mixed-vendor environments, single-mode fiber installations, or enterprise backbones. The combination of modularity, EMI shielding, hot-swappability, and diagnostic features makes the LSP422 a practical choice for modern networks seeking simplified optics management and scalable upgrade paths.

Technical Details of Black Box LSP422 SFP+ Module

  • Form Factor: SFP+ transceiver module
  • Data Rate: Up to 10 Gbps
  • Optical Interface: 1310 nm wavelength on standard single-mode fiber (LC connector support); compatible with typical SFP+ optical paths
  • Diagnostics: Digital Diagnostics Monitoring (DDM/DDMI) supported in managed environments
  • Protection: Metal enclosure provides EMI shielding and mechanical protection
  • Maintenance: Loopback testing supported for efficient troubleshooting
  • Compliance: SFP+ MSA-compliant; RoHS compliant; hot-swappable in compatible platforms

How to install Black Box LSP422 SFP+ Module

  • Prepare the host device: Confirm that your platform supports SFP+ hot-swapping and review the device’s maintenance guidance. While the LSP422 is designed for hot-swappable operation, always follow your equipment vendor’s best practices for installation to prevent accidental damage.
  • Identify an available SFP+ slot: Locate a vacant SFP+ port on your switch, router, or server that is compatible with the LSP422 module. Ensure the device is powered down only if your system requires it; otherwise, rely on hot-swap capabilities as specified by the host equipment.
  • Remove any existing module (if replacing): If you are upgrading, gently release the current transceiver from the slot, noting the latch mechanism and alignment to avoid fiber damage.
  • Insert the LSP422 module: Align the module with the slot and insert it until it seats securely. You should hear or feel a click as the latching mechanism locks the module in place. Avoid applying sideways pressure to protect the connector.
  • Connect fiber cables: Attach the LC fiber optic cables to the module’s connectors, ensuring proper polarity and avoiding excessive bending. Use appropriate fiber type (single-mode) per your network design and maintain clean, dust-free connections.
  • Power and verify: If the host device requires a power cycle, perform it as needed or allow the hot-swapped module to initialize. Observe link status indicators and verify that the interface comes up at the expected speed (10 Gbps) and with the correct duplex settings.
  • Enable diagnostics and run tests: In managed environments, enable Digital Diagnostics Monitoring (DDM) to monitor health metrics. If you are performing maintenance testing, use loopback mode to verify the fiber path and ensure that the link remains stable under load.

Frequently asked questions

  • What is the Black Box LSP422 SFP+ Module? It is a modular, hot-swappable optical transceiver in the SFP+ form factor designed for 10 Gigabit data communications, offering reliable performance and maintenance-friendly features for modern networks.
  • Is the LSP422 hot-swappable? Yes. The module is designed for hot-swapping in compatible managed platforms, reducing downtime during upgrades and replacements.
  • Does it support digital diagnostics? Yes. When used in a managed environment, the LSP422 supports Digital Diagnostics Monitoring (DDM/DDMI), providing real-time telemetry for proactive network management.
  • What fiber type and connector does it use? The LSP422 is configured for standard SFP+ optical paths with an LC connector on single-mode fiber operating at 1310 nm in typical configurations. Always verify the exact spectral and fiber-spec requirements for your deployment.
  • Is it compatible with multiple vendors? The LSP422 follows the SFP+ MSA standard, which supports broad cross-vendor compatibility. However, it is recommended to confirm interoperability with your specific switch or router model and any vendor-specific requirements.
  • What maintenance advantages does the LSP422 offer? In addition to hot-swapping and a rugged enclosure, the module’s loopback testing capability and digital diagnostics enable faster fault isolation, easier verification of link integrity, and better overall network reliability.
