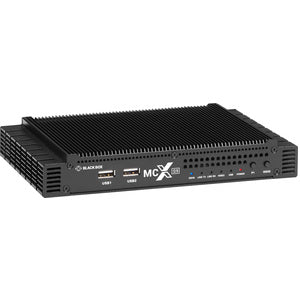

Black Box MCX S9 Decoder

The Black Box MCX S9 Decoder is a cutting-edge AV-over-IP solution engineered to cater to the rigorous demands of contemporary audiovisual applications. This next-generation decoder shines in the distribution and extension of 4K 60 Hz video and audio over a 10-Gbps network infrastructure, making it an exemplary choice for high-end AV environments. With its remarkable video quality and minimal latency, the MCX S9 Decoder is designed to provide a superior viewing experience, effortlessly managing and distributing content across multiple displays without sacrificing quality.

• Uncompromised Video Quality: The MCX S9 Decoder extends uncompressed 4K 60 Hz 4:4:4 video to an unlimited number of displays, ensuring that you achieve the highest quality visual experience for your AV applications.
• 10-Bit HDR Support: This decoder supports 10-bit HDR through Software-Defined Video over Ethernet (SDVoE), offering enhanced color depth and a more vivid visual experience.
• Flexible Deployment Options: Designed for modern networks, the MCX S9 can be easily deployed over Ethernet and fiber networks, facilitating straightforward installation and integration.
• Zero Latency Performance: With real-time encoding and decoding occurring in just 0.03 milliseconds, the MCX S9 provides a remarkable zero-latency experience, free from annoying lag or delays.
• Seamless Video Switching: Experience ultra-fast switching between video sources in less than 100 milliseconds without any artifacts or screen blinks, ensuring a smooth viewing experience across all displays.

Technical Details of the MCX S9 Decoder

• Video Resolution: Uncompressed 4K 60 Hz 4:4:4
• HDR Support: 10-bit HDR
• Networking: Supports 10 GbE over Ethernet and fiber
• Control: Comprehensive control via MCX Web UI
• Video Input/Output: HDMI 2.0 and DisplayPort 1.2 over IP
• Connectivity: Includes discrete RS-232, IR, and secondary audio channels

How to Install the MCX S9 Decoder

Installing the Black Box MCX S9 Decoder is a simple process that can be accomplished in a few easy steps:

1. Connect the MCX S9 Decoder to your 10-Gbps network via Ethernet or fiber cables.
2. Connect your AV source devices to the decoder using HDMI 2.0 or DisplayPort 1.2 connections.
3. Access the MCX Web UI via your preferred web browser using the provided IP address.
4. Configure your settings and connect additional displays as needed through the provided ports.
5. Test the system to ensure all video sources are functioning smoothly and seamlessly.

Frequently Asked Questions

• What is the maximum resolution supported by the MCX S9 Decoder? The MCX S9 supports uncompressed 4K 60 Hz 4:4:4 video.
• Can I use the MCX S9 on existing network infrastructure? Yes, the MCX S9 is designed to work with any modern network, making it easy to integrate into your existing setup.
• Is there any noticeable delay when switching between sources? No, the MCX S9 features seamless switching with less than 100 milliseconds of transition time, ensuring no artifacts or screen blink during source changes.
• How do I control the MCX S9 Decoder? You can control the MCX S9 using the intuitive MCX Web UI, accessible from any web browser.
• What types of devices can be connected to the MCX S9? The MCX S9 can connect a variety of AV distribution devices through its multiple ports, including discrete RS-232, IR, and secondary audio channels.
