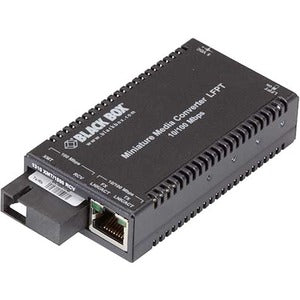

Black Box MultiPower Miniature Transceiver/Media Converter

The Black Box MultiPower Miniature Transceiver/Media Converter is the ideal solution for businesses looking to integrate fiber optic technology into their workspace effortlessly. Its compact design and versatile power options make it a cost-effective choice for transitioning to fiber without the need for extensive installation of fiber network interface cards (NICs). This media converter connects directly to your PC's copper port, bringing high-speed fiber connectivity right to your desktop.

Key Features of the Black Box MultiPower Miniature Transceiver/Media Converter

• Seamless Connectivity: This media converter allows you to connect Ethernet or Fast Ethernet directly to fiber optic cables, enabling efficient data transmission over longer distances.
• Compact Design: With dimensions of just 0.8"H x 1.8"W x 3.4"D, the miniature media converter can be easily tucked away behind your PC, ensuring a clean and organized workspace.
• Versatile Power Options: Power the converter using the included universal AC power supply, your PC's USB port with an optional USB Power Adapter Cable (LHC021A), or the optional rackmountable PowerTray (LHC018A-AC-R2), providing you with flexibility in setup.
• Auto MDI/MDI-X Feature: This feature simplifies installation by automatically detecting connection type, removing the hassle of worrying about cable types.
• Advanced Troubleshooting: Equipped with a DIP switch, you can turn on or off the Link Fault Pass-Through feature, enhancing your troubleshooting capabilities and streamlining maintenance.

Technical Details

• Compliant with EN62368 standards for safety.
• Supports 10- and 100-Mbps segments with auto-negotiation for speed and duplex.
• Available in various fiber versions: multimode duplex, single-mode duplex, and single-mode single-strand duplex.
• Operating temperature range: 0°C to 50°C.
• Lightweight design for easy handling and installation.

How to Install

Installing the Black Box MultiPower Miniature Media Converter is straightforward:

1. Connect the Miniature Media Converter to your PC's copper port using a standard CAT5 cable.
2. Insert the appropriate fiber cable into the converter's other side, ensuring a secure connection.
3. Choose your preferred power option: plug in the included AC power supply, connect the optional USB Power Adapter Cable to your PC, or install it in the optional PowerTray.
4. Power on your devices and wait for the link indicators to ensure a successful connection.
5. Adjust the DIP switch if necessary for Link Fault Pass-Through based on your troubleshooting needs.

Frequently Asked Questions

• What types of fiber cables are compatible with this media converter?
  The Black Box MultiPower Miniature Media Converter is compatible with multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber cables.
• Can I use this media converter for both 10 Mbps and 100 Mbps connections?
  Yes, the converter automatically negotiates between 10 and 100 Mbps, allowing for flexibility in network configurations.
• How do I know if my installation is successful?
  Check the link indicator lights on the converter; a steady light typically indicates a successful connection.
• Is it easy to troubleshoot issues with this media converter?
  Yes, the Link Fault Pass-Through feature facilitates troubleshooting by allowing you to monitor link status easily.
• What is the warranty on this product?
  The Black Box MultiPower Miniature Media Converter generally comes with a limited warranty; please refer to the product documentation for specific warranty details.
