Description

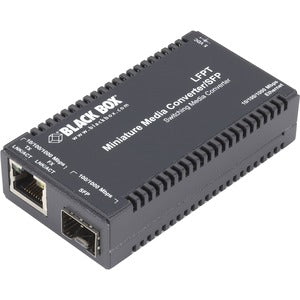

Engineered for seamless network migration and flexible deployment, the Black Box Multipower Miniature Transceiver/Media Converter bridges copper Ethernet networks with fiber-ready interfaces through an SFP slot, delivering enterprise-grade versatility in a compact footprint. Its multipower design, autosensing copper ports, and optional rackmount compatibility make it an ideal solution for data centers, campus networks, and remote offices where space is at a premium but performance cannot be compromised.
- Autonomous copper-to-fiber bridge: Autosensing RJ-45 ports negotiate 10/100/1000 Mbps links automatically and support Auto MDI/MDI-X, reducing setup steps and eliminating the need for crossover cables in most connections.
- Flexible fiber connectivity with an SFP slot: The integrated SFP slot accepts 1250-Mbps SFP modules, enabling you to choose the right fiber type (single-mode or multi-mode) and distance based on your network design and location.
- Multipower versatility: Power the unit from a universal AC supply, USB power from a PC, or the optional rackmount PowerTray for centralized, tidy power management in larger deployments.
- Standalone or rackmount deployment: Use it on a desktop for quick firefighting deployments or rack-mount it in a PowerTray enclosure for scalable, professional installations across growing networks.
- Compact, reliable, easy to deploy: Designed to fit small spaces without sacrificing performance, this miniature transceiver/media converter supports reliable operation in data centers, campus backbones, and field installations where every watt and every inch counts.
Technical Details of Black Box Multipower Miniature Transceiver/Media Converter
- Interfaces: Autosensing copper ports (RJ-45) that negotiate 10/100/1000 Mbps and support Auto MDI/MDI-X for straightforward device daisy-chaining.
- Fiber connectivity: One SFP slot accepts 1250-Mbps SFP modules, enabling flexible fiber connections. The actual reach and fiber type (single-mode or multi-mode) depend on the chosen SFP module and fiber optic cable you deploy.
- Power options: Multiple power pathways—universal AC power supply, USB power from a PC, or the optional rackmount PowerTray—provide deployment flexibility in offices, labs, field sites, and data centers.
- Deployment model: Supports standalone operation for quick campaigns or rack-mount integration via the PowerTray for centralized power and neater installations in larger networks.
- Auto negotiation features: Auto MDI/MDI-X reduces cabling concerns, allowing straight-through cables to connect most devices to switches, routers, or servers without special adapters.
- Distance and fiber planning: Because the SFP module dictates reach, the practical distance and fiber type will align with the chosen SFP’s specifications and the fiber you install, enabling precise network segmentation and backbone extension without rewiring copper segments.
How to install Black Box Multipower Miniature Transceiver/Media Converter
- Plan your power approach: Decide whether you will power the unit from a universal AC supply, a USB port on a PC, or the optional rackmount PowerTray. Ensure appropriate cabling and safety in your environment before powering up.
- Install the SFP module: Insert a compatible 1250-Mbps SFP module into the SFP slot. Confirm the module is fully seated and locked in place, following any module-specific instructions from the SFP you choose.
- Connect fiber: Attach the correct fiber optic patch cord to the SFP module, ensuring you match the fiber type (single-mode or multi-mode) and the connector style to your SFP and network design. Route the fiber with care to avoid bending or stressing the cable.
- Connect copper devices: Plug your 10/100/1000 Mbps Ethernet devices into the RJ-45 copper ports. If your links are between switches, routers, or servers that support Auto MDI/MDI-X, you can typically use straight-through Ethernet cables.
- Rackmount consideration (optional): If you plan to use the PowerTray for centralized power, mount the transceiver in the tray according to the tray’s instructions, and ensure proper airflow and cable management for scalable deployments.
- Power on and verify: Apply power through the chosen method and verify link/activity indicators on the front panel (as applicable). Confirm a stable fiber link and copper link, then test data transfer and performance to validate your upgrade path or extended network segment.
Frequently asked questions
- What does the Black Box Multipower Miniature Transceiver/Media Converter do? It combines a copper Ethernet to fiber bridge with an SFP-based fiber path, enabling you to extend or backhaul networks by adding a fiber segment while preserving existing copper infrastructure.
- What power options are available? It can be powered by a universal AC power supply, USB power from a PC, or the optional rackmount PowerTray, giving you flexibility for desktop, lab, field, or data-center environments.
- What fiber types and distances can I use? The device accepts 1250-Mbps SFP modules, so fiber type (single-mode or multi-mode) and distance are determined by the specific SFP module you install and the fiber you deploy. Choose the SFP module based on your distance requirements and network design.
- Is Auto MDI/MDI-X supported? Yes. Auto MDI/MDI-X simplifies connections by allowing straight-through cabling for most scenarios, reducing the need for crossover cables.
- Can I operate this device as a standalone unit or in a rack? Yes. It is designed for standalone desktop use or rackmount deployment via the optional PowerTray, enabling scalable, tidy, and professional installations as your network grows.
- Is the SFP module upgradeable? Yes. You can choose and swap SFP modules to tailor fiber connectivity (type and distance) to your evolving network requirements while keeping the copper side intact.
