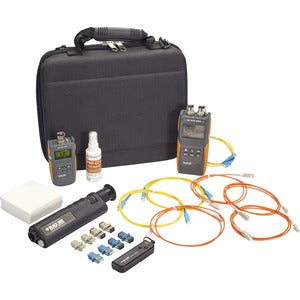

Black Box Optical Light Test Set - Quad Mode Source, 850/1300/1310/1550 nm

The Black Box Optical Light Test Set is the ultimate handheld solution for professional fiber technicians seeking precise, multi-wavelength testing in the field. This quad mode source delivers four critical wavelengths—850, 1300, 1310, and 1550 nm—allowing you to quickly assess link budgets, verify fiber integrity, and troubleshoot complex networks on-site. Built to streamline advanced fiber testing, this tool combines loss measurement, power level verification, connector end-face inspection, and cleaning capabilities into a single, portable instrument. Whether you’re deploying new fiber, performing maintenance, or diagnosing performance issues, this test set provides accurate readings, reduces downtime, and elevates the reliability of your fiber deployments. Its compact form factor and rugged design make it ideal for congested conduit routes, outdoor installations, data centers, and field sites where fast, repeatable results are essential.

• Quad-wavelength optical source covering 850 nm, 1300 nm, 1310 nm, and 1550 nm for versatile field testing; enables simultaneous or rapid sequential testing across short-haul and long-haul networks to confirm performance, loss budgets, and link integrity with a single instrument.
• Integrated end-face inspection and cleaning workflow helps technicians identify contamination, scratches, or defects on connector ends, reducing test retries and ensuring repeatable, reliable results in every measurement cycle.
• Compact, portable design optimized for field use; lightweight and easy to carry between job sites while delivering professional-grade measurements that meet industry standards and workflow requirements.
• Clear, user-friendly interface with intuitive controls and readable displays; minimizes training time and allows technicians to quickly set up tests, interpret results, and document findings for workflows and reporting.
• All-in-one testing solution for fiber networks—combining loss measurement, power level verification, end-face inspection, and cleaning in one device to accelerate on-site testing and streamline documentation.

Technical Details of Black Box Optical Light Test Set - Quad Mode Source, 850/1300/1310/1550 nm

• Wavelengths: 850 nm, 1300 nm, 1310 nm, 1550 nm
• Source Type: Quad-mode optical source for multi-wavelength testing
• Primary Applications: Field testing of fiber networks, loss measurement, power level verification, connector inspection, and end-face cleaning
• End-Face Capability: Integrated inspection and cleaning workflow to ensure pristine connector ends prior to re-testing
• Portability: Compact and portable design suitable for on-site use
• Measurement Capabilities: Loss and power level measurements across all four wavelengths
• Operating Environment: Designed for typical field conditions; ruggedized for durability in challenging environments
• Connectivity: Compatible with standard fiber optic connectors and common field-testing accessories
• Power Requirements: External power source suitable for field operations (details in official specifications)

how to install Black Box Optical Light Test Set

• Unpack and verify all components against the included checklist to ensure nothing is missing or damaged during shipment.
• Connect the test set to its power source and switch on the unit; allow a brief warm-up period if required by the model’s startup procedure.
• Navigate to the wavelength selection and choose the desired wavelengths (850, 1300, 1310, 1550 nm) based on your testing plan and the fiber under test.
• Attach the appropriate connectors to the fiber under test and select the measurement mode (loss, power level, or inspection) to begin data collection.
• Run the test sequence, capture readings, and review results on the display. If end-face inspection is enabled, perform a cleaning and re-inspection as needed to ensure accuracy and repeatability.

Frequently asked questions

• Q: What wavelengths does the quad mode source support? A: It supports 850 nm, 1300 nm, 1310 nm, and 1550 nm wavelengths for versatile field testing across multiple fiber types and network applications.
• Q: Can this device perform both loss measurements and power level verification? A: Yes, the instrument is designed to perform loss measurements and power level verification across its four wavelengths, enabling comprehensive link assessment.
• Q: Does the unit include end-face inspection and cleaning features? A: Yes, the integrated inspection and cleaning workflow helps ensure connector ends are clean and free of defects before re-testing, improving reliability.
• Q: Is the test set suitable for field use? A: The device is engineered with a portable, rugged design intended for field deployment, on-site testing, and quick turnaround on projects.
• Q: Where can I find the official specifications? A: Detailed technical specifications are available on the vendor’s product page or documentation, and should be referenced using the product’s UPC or SKU for accuracy.
