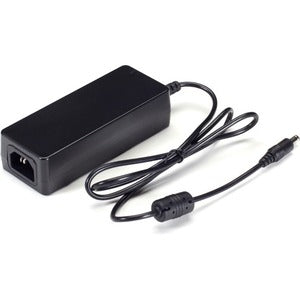

Black Box Optional Power Supply for the DKM HD Video and Peripheral Matrix Switch - 2-Slot Chassis

The Black Box Optional Power Supply is engineered to deliver dependable, clean power to the DKM HD Video and Peripheral Matrix Switch housed in a 2-slot chassis. Designed for professional AV and broadcast environments, this power supply provides a compact, rack-ready solution that helps maintain peak performance of your DKM system. When integrated into a 2-slot chassis, it ensures stable operation for high-definition video routing, peripheral integration, and complex matrix switching tasks, reducing the risk of power-related interruptions during critical presentations, productions, or surveillance deployments.

• Reliable, dedicated power for the DKM HD Matrix Switch ensures consistent performance across all video and peripheral pathways. By supplying dedicated voltage and current to the DKM core, it minimizes voltage dips and protects against unexpected resets that can disrupt live events or critical workflows.
• Compact, rack-mountable design for 2-slot chassis fits neatly into standard equipment racks, preserving valuable rack space while offering a clean, organized power solution for media centers and control rooms. Its slim form factor makes it easy to mount alongside other Black Box devices within a single enclosure.
• Enhanced protection features for uptime includes protections such as over-voltage, short-circuit, and thermal protection to guard the DKM system during power anomalies. Built-in safeguards help extend the life of expensive AV hardware and reduce maintenance downtime in busy environments.
• LED indicators and status reporting provide quick, at-a-glance information about power presence and fault conditions. Operators can rapidly diagnose issues on the floor or in the control room, minimizing mean time to repair during live operations or demanding broadcasts.
• Plug-and-play integration with existing Black Box DKM configurations streamlines deployment. The power supply is designed to work seamlessly with the 2-slot DKM chassis, enabling fast installation, immediate readiness, and minimal configuration required for everyday use.

Technical Details of Black Box Optional Power Supply for the DKM HD Video and Peripheral Matrix Switch - 2-Slot Chassis

• Product type: Optional external power supply designed for the DKM HD Video and Peripheral Matrix Switch in a 2-slot chassis.
• System compatibility: Specifically engineered for use with Black Box DKM HD matrix systems that operate in a 2-slot chassis configuration.
• Power input: Supports standard AC mains power suitable for professional deployments (typical 100–240 VAC, 50/60 Hz; region-specific cord sets may vary).
• Output characteristics: Delivers regulated power to the DKM module, maintaining consistent voltage under varying load conditions to support stable video routing and peripheral control.
• Mounting and form factor: Designed to fit within 19-inch rack systems or corresponding rack shelves used for Black Box equipment, maintaining a clean, professional installation footprint.
• Protection features: Includes overload protection, short-circuit protection, and thermal monitoring to safeguard connected equipment.
• Indicators: Front-panel LEDs indicate power status and fault conditions for rapid diagnostics on-site.
• Environment and warranty: Built for reliability in commercial environments; compatible with other Black Box components and covered under standard vendor warranty terms.

how to install Black Box Optional Power Supply for the DKM HD Video and Peripheral Matrix Switch - 2-Slot Chassis

• Prepare the chassis and power supply: Verify that the 2-slot DKM chassis is correctly installed in the rack and that the power supply unit is secured in its designated slot. Ensure the rack power is turned off before making any connections.
• Power routing: Connect the power supply to a suitable AC power source using the appropriate region-specific power cord. Check that the cord is rated for the facility’s electrical standards and that the outlet is easily accessible for a quick shutdown if needed.
• Connect to the DKM system: Attach the power supply’s output connector to the DKM HD Video and Peripheral Matrix Switch’s power input port in the 2-slot chassis. Confirm a secure connection to prevent accidental disconnections during operation.
• Power on and verify: Restore power to the rack and observe the power-supply indicators. A steady power LED usually indicates normal operation, while a fault LED may require rechecking connections or consulting the manual for recommended actions.
• Test system functionality: Power up the DKM unit and run a quick matrix-switch test to ensure video paths and peripheral controls function correctly. If any channels fail to route, verify the power connection and ensure there are no audible or visible fault indicators.
• Document and label: Update rack documentation to reflect the addition of the optional power supply. Label the unit and outlet to simplify routine maintenance and future upgrades.

Frequently asked questions

• What is the primary purpose of the Black Box Optional Power Supply for the DKM HD Video and Peripheral Matrix Switch? It provides a dedicated, stable power source for the DKM HD matrix system installed in a 2-slot chassis, helping maintain consistent video routing, peripheral control, and overall system reliability in demanding environments.
• Which configurations is this power supply compatible with? It is designed for use with Black Box DKM HD Video and Peripheral Matrix Switches that are housed in a 2-slot chassis. Check your device’s chassis specification to confirm compatibility before installation.
• Does this power supply support redundant power arrangements? The description specifies an optional power supply for a 2-slot chassis, intended to provide reliable power to the DKM system. For redundancy configurations, refer to your facility’s power design and the DKM manual for recommended practices.
• How does the power supply indicate status or faults? Front-panel LEDs provide immediate status information, signaling normal operation and fault conditions so technicians can respond quickly to any issues affecting video or peripheral performance.
• What installation considerations should I know? Ensure the chassis is properly mounted in a standard 19-inch rack, use the correct regional power cord, and follow the installation steps to verify proper connection and operation. Always power down equipment before installing or removing components.
• Is there a warranty or service support for this unit? The power supply typically falls under the vendor’s standard warranty terms for Black Box products. For exact coverage and service options, consult the product’s warranty documentation or your supplier.
