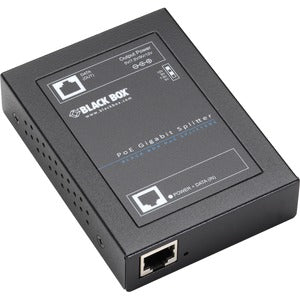

Black Box PoE+ Gigabit Splitter - 5-12-VDC, 6-Amp

The Black Box PoE+ Gigabit Splitter - 5-12-VDC, 6-Amp is a versatile and efficient device crafted to bridge the gap between modern Power over Ethernet (PoE) networks and legacy non-PoE devices. This innovative splitter simplifies the integration process, allowing users to power their non-PoE devices such as IP security cameras and access points without the hassle of locating nearby power outlets. With its compact design and advanced features, this splitter is an essential component for any network setup requiring flexible power solutions.

• Flexible Power Options: The splitter features a DC output jack that ranges from 5-12VDC, allowing users to choose the optimal voltage for their devices with ease using the included DIP switch.
• Gigabit Ethernet Support: Experience exceptional data transmission speeds with support for 10/100/1000Mbps Ethernet, ensuring your non-PoE devices perform at their best.
• Cost-Effective Installation: By enabling the use of non-PoE devices in locations where power outlets are absent, this splitter significantly reduces both installation and equipment costs.
• Enhanced Compatibility: This splitter works seamlessly with both 802.3af PoE and 802.3at PoE+ standards, making it a highly compatible tool for various devices.
• Auto Sensing and Auto-Negotiating: Equipped with auto sensing and auto-negotiation capabilities on both Ethernet ports, the splitter ensures a quick and seamless plug-and-play connectivity experience without manual setup.

Technical Details of Product

• Input: 10/100/1000Mbps RJ45 PoE+ PD
• Output: 10/100/1000Mbps RJ45, DC output jack
• Power Output: 5-12VDC, 1.7A at 12VDC
• DIP Switch: Used to select output voltage
• Dimensions: Compact design suitable for various installations
• Compatibility: Supports 802.3af and 802.3at PoE standards

How to Install

Installing the Black Box PoE+ Gigabit Splitter is an easy process. Follow these steps:

1. Connect the input RJ45 port of the splitter to your PoE-enabled network switch or injector using an Ethernet cable.
2. Set the DIP switch to the desired output voltage according to your connected device's specifications.
3. Insert the included right-angle 5.5 x 2.5-mm power plug into the DC output jack of the splitter.
4. Connect the other end of the power cord to your non-PoE device.
5. Lastly, connect the output RJ45 port of the splitter to your device using another Ethernet cable for data transmission.
6. Power on your non-PoE device and verify its functionality.

Frequently Asked Questions

• Can I use the splitter with any non-PoE device? Yes, the splitter is designed to be compatible with a wide variety of non-PoE devices requiring DC power and Ethernet connectivity.
• What is the maximum power output of the splitter? The Black Box PoE+ Gigabit Splitter can provide up to 1.7A of power at 12VDC.
• Do I need any special tools for installation? No special tools are necessary. You can complete the installation with standard Ethernet cables and the provided power plug.
• Is the splitter compatible with both PoE and PoE+? Absolutely, it supports both 802.3af PoE and 802.3at PoE+ standards, providing flexibility for various network configurations.
• What if I encounter connectivity issues? Make sure all connections are secure and that the DIP switch is adjusted to the right voltage for your device. If problems persist, try connecting a different device to troubleshoot.
