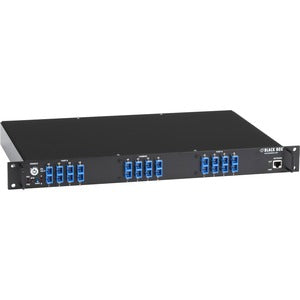

Black Box Rackmount Gang Switch - 19", 1U, (4) Duplex Multimode SC, Network Manageable

This Black Box Rackmount Gang Switch delivers compact, scalable fiber connectivity in a standard 19-inch, 1U chassis. Designed for network closets, labs, and data centers that demand reliable uplink and downlink fiber connections, this switch stacks multiple fiber interfaces into a single, space-efficient unit. With four duplex multimode SC ports, it provides high-speed, low-latency performance for small to mid-size deployments while offering network manageability to simplify monitoring, configuration, and maintenance. Ideal for environments that require plug-and-play deployment with minimal cabling complexity, this rackmount gang switch is a practical solution for expanding fiber optic networks without sacrificing rack space or performance.

• Compact 19" rackmount design fits neatly into standard server racks, enabling clean, organized deployments in telecom rooms and data centers.
• 1U form factor maximizes rack density, freeing floor space and simplifying cable management in crowded environments, while still delivering four high-quality duplex fiber connections.
• Four duplex multimode SC ports support multimode fiber links, allowing efficient transmission over short to moderate distances with robust optical performance and low insertion loss.
• Network manageable enables remote configuration, monitoring, and basic troubleshooting, helping IT teams maintain uptime and quickly respond to network changes or issues.
• Streamlined integration designed to slot into existing fiber networks with minimal reconfiguration, making it an excellent upgrade path for expanding capacity or creating dedicated fiber paths for critical applications.

Technical Details of Black Box Rackmount Gang Switch - 19", 1U, (4) Duplex Multimode SC, Network Manageable

• Form Factor: 19-inch rackmount chassis, 1U height for easy installation in standard equipment racks.
• Ports: 4 duplex fiber interfaces using SC connectors, enabling multiple fiber links from a single unit.
• Fiber Type: Multimode SC fronts suitable for short- to medium-range fiber runs within data centers or lab environments.
• Management: Network manageable, providing centralized control and visibility for connected links and overall switch performance.
• Mounting Compatibility: Standard rack compatibility ensures seamless integration with other rack-mounted devices and cabinets.

How to install Black Box Rackmount Gang Switch - 19", 1U, (4) Duplex Multimode SC, Network Manageable

• Power down the equipment rack area and verify that the rack has adequate clearance and ventilation to prevent overheating during operation.
• Mount the unit in a standard 19-inch rack, using appropriate rack ears or rails. Securely fasten the chassis to the rack to prevent movement during operation or in case of minor disturbances.
• Route fiber optic cables carefully to minimize bend radius and stress on the SC connectors. Label cables for easy future maintenance and troubleshooting.
• Connect each duplex multimode SC port to the corresponding fiber links in your network topology, ensuring correct polarity and alignment of transmit and receive paths.
• Power on the switch and access the management interface according to the user guide. Configure basic settings, including IP address, VLANs as needed, and any required security parameters.
• Test each fiber link for link integrity, throughput, and latency. Verify that the device is reachable from management systems and that remote monitoring alerts function as expected.
• Document the installation, including port assignments, cable routes, and configuration changes, to simplify future maintenance and expansions.

Frequently asked questions

• What is a rackmount gang switch? A rackmount gang switch is a compact network switch designed to be mounted in a standard 19-inch equipment rack. It consolidates multiple fiber or Ethernet interfaces into a single unit, enabling scalable fibre or copper connectivity within a single enclosure for streamlined network management.
• What does network manageable mean in this context? Network manageable indicates that the switch can be configured, monitored, and controlled over a network. This typically includes remote management capabilities such as status monitoring, basic configuration, and performance reporting, aiding IT teams in maintaining uptime and responding quickly to issues.
• What kind of fiber does the switch use? This model uses four duplex multimode SC fiber ports, suitable for multimode fiber optic cables, generally used for shorter distances and higher bandwidth connections within data centers and labs.
• Is this switch suitable for enterprise core networks? It is best suited for access-layer or edge deployments, lab environments, or small-to-mid-size networks where compact form factor and dedicated fiber links are advantageous. For core or highly scalable networks, larger, feature-rich switches may be preferred.
• How many ports does the device have? The device offers four duplex fiber ports via SC connectors, totaling eight individual fiber paths (two per duplex). This structure supports multiple separate links within a compact 1U chassis.
