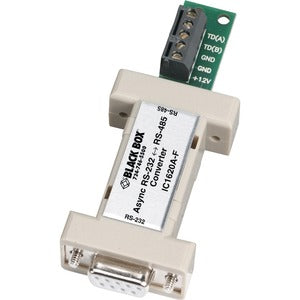

Black Box RS-232 to RS-485 Interface Converter

Black BoxSKU: 2889513

Price:
Sale price$188.24

Description

Black Box RS-232 to RS-485 Interface Converter

This Black Box RS-232 to RS-485 Interface Converter is a reliable, plug‑and‑play solution for bridging legacy RS-232 devices with modern RS-485 networks. Designed for industrial environments and data‑driven applications, this asynchronous serial converter translates signals from a DB9 serial port into a robust two‑wire RS‑485 bus, enabling long‑distance communication, multi‑node networking, and seamless integration with control systems, PLCs, sensors, and data loggers. Whether you’re updating a legacy lab setup, expanding an existing control network, or building a resilient remote monitoring system, this converter delivers dependable serial communication with minimal setup and widespread compatibility.

  • Seamless RS-232 to RS-485 conversion: Connect a DB9 RS-232 host device to the converter and wire your RS-485 bus to the terminal block. This bridge enables smooth data transfer between legacy serial gear and modern RS-485 networks, supporting standard asynchronous communication protocols without complex re-wiring.
  • DB9 to terminal block interface: The DB9 connector on the RS-232 side pairs with a wide range of legacy equipment, while the RS-485 side uses a convenient terminal block for clean, reliable field wiring. This design simplifies installation in tight spaces and makes field maintenance straightforward.
  • Supports multi-device RS-485 networks: Built for shared bus environments, the converter supports two‑wire RS‑485 networking, enabling multi‑drop configurations where multiple devices can communicate on a single bus with proper termination and biasing as required by your network topology.
  • Rugged, compact construction: Encased in a compact, durable housing suitable for desktop, panel, or cabinet mounting. The small footprint makes it easy to deploy in tight equipment racks, control panels, or benches without sacrificing reliability in demanding environments.
  • Designed for broad compatibility and value: This converter is a cost‑effective way to extend the life of existing equipment while enabling integration with modern control systems, data acquisition, and monitoring solutions. It delivers dependable serial bridging that aligns with ISO/IEC standards for industrial communication, helping you protect prior investments while unlocking new capabilities.

Techncial Details of Black Box RS-232 to RS-485 Interface Converter

  • Interface: Async RS-232 to RS-485 converter
  • RS-232 side connector: DB9 (serial)
  • RS-485 side connector: Terminal block for 2‑wire RS‑485 bus
  • Network topology: Supports standard RS‑485 multi‑drop configurations on a two‑wire bus
  • Enclosure: Compact, durable housing suitable for desktop or panel mounting

how to install Black Box RS-232 to RS-485 Interface Converter

Installing this converter is designed to be quick and straightforward, with minimal configuration required for typical setups. Follow these steps to get up and running:

  1. Identify the RS‑232 host device and the RS‑485 network you want to connect. Ensure that the baud rate, parity, data bits, and stop bits on the host device match the settings expected by the RS‑485 network, or configure the converter to match the host device as needed.
  2. Connect the RS‑232 side to the host using the DB9 connector. Use the appropriate mating cable (DB9 male‑to‑female or other configuration as determined by your equipment) and secure the connection to avoid intermittent contact.
  3. Wire the RS‑485 bus to the terminal block on the RS‑485 side. Typically, connect the A (non‑inverting) and B (inverting) lines according to your network’s wiring diagram. Ensure proper polarity and secure, clean wire terminations to minimize noise and signal loss.
  4. Verify network terminations and biasing as required by the RS‑485 topology. If your network requires terminators or bias resistors, install them as specified for your cable length and node count to ensure reliable idle bus signaling.
  5. Power the converter if a dedicated supply is required (per vendor specifications). Power‑up the system and perform a basic loopback test or communication test between the host and a known RS‑485 node to confirm data transmission in both directions.
  6. Fine‑tune the serial settings if necessary and document the configuration for future maintenance. Once verified, document the bus wiring, device IDs, and any termination requirements to simplify troubleshooting and expansion.

Frequently asked questions

  • What devices can I connect with this converter? The RS‑232 side connects to a standard DB9 serial device, such as a computer, console, or instrument. The RS‑485 side connects to an RS‑485 network, enabling multi‑device communication over a two‑wire bus.
  • Do I need special drivers? In most cases, no special drivers are required. The converter acts as a passive bridge between RS‑232 and RS‑485, allowing compatible host devices to communicate with RS‑485 devices after proper configuration of serial parameters.
  • Is termination or biasing required on the RS‑485 bus? Termination and biasing are determined by your RS‑485 network design. Some installations require termination resistors at the ends of the bus and bias resistors to maintain a known idle state. Check your network schematic and component recommendations to ensure reliable signaling.
  • Can I use this converter for Modbus or other industrial protocols? The converter provides a physical bridge for standard asynchronous serial communication. It can be used with devices and protocols that run over RS‑232 on the host side and RS‑485 on the network side, including common configurations used in industrial automation, data acquisition, and control systems. Protocol compatibility depends on your devices rather than the converter itself.
  • Do I need to power the converter from a dedicated supply? Power requirements are determined by the specific model and configuration. Some units are passive bridges that draw power from the host equipment, while others require a small external supply. Refer to the official product documentation for exact power requirements and safety guidelines.
