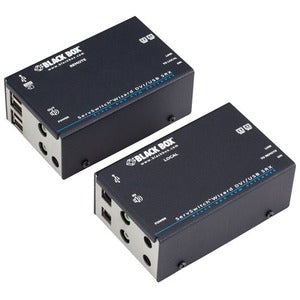

Black Box ServSwitch Wizard SRX DVI-D/USB Extender, Dual-Head

The Black Box ServSwitch Wizard SRX DVI-D/USB Extender is a premier solution for high-quality video and USB data transmission, specifically engineered for professionals demanding superior performance and unwavering reliability. This dual-head extender is meticulously crafted to extend your DVI digital video and USB devices over significant distances without compromising quality or introducing latency, making it an ideal choice for environments that prioritize heat and noise reduction.

• Pure Digital Video Transmission: Experience crystal-clear displays with the ServSwitch Wizard SRX, which facilitates full DVI digital video transmission without compression or conversion, ensuring zero quality loss.
• Extended Range: Capable of extending keyboard, mouse, and uncompressed single-link DVI-D video up to 196 feet (59.7 m) at a full resolution of 1920 x 1200 at 60 Hz, or 3840 x 2400 at 17 Hz, this extender is perfect for even the largest setups.
• Bi-Directional USB Data Support: Seamlessly extend USB devices over long distances, providing versatile support for distributed workstations, making it a fantastic choice for any workspace.
• Enhanced EDID Management: The extended profile DDC EDID ensures the optimal performance of your video output by carrying vital data from your display device to your display adapter, critical for high-performance display applications.
• Rugged Rack-Mountable Design: With a 19" mounting feature, you can conveniently mount up to 16 local or remote units in the Rackmount Chassis (ACU5000A), allowing for a clean and organized setup.

Technical Details of the Black Box ServSwitch Wizard SRX DVI-D/USB Extender

• Video Resolution: Supports dual head DVI-D video resolution up to 1920 x 1200 @ 60Hz.
• USB Support: Transparent USB 2.0 supports distances up to 60 meters.
• Extended EDID: Extended profile DDC EDID for optimal video performance.
• Distance Capabilities:
  • Direct Cable Connections:
    • CAT6a: 196 feet (59.7 m)
    • CAT6: 180 feet (54.8 m)
    • CAT5e: 147 feet (44.8 m)
  • Patch Panel Connections:
    • CAT6a: 164 feet (50 m)
    • CAT6: 147 feet (44.8 m)
    • CAT5e: 114 feet (34.7 m)
• Power Supply: Interface-powered local unit (if PC output does not exceed 500 mA), otherwise uses a 5-VDC Power Supply (PS649-R3).

How to Install the Black Box ServSwitch Wizard SRX DVI-D/USB Extender

Installing the Black Box ServSwitch Wizard SRX is straightforward:

1. Connect your DVI source (computer or other device) to the local unit using a DVI cable.
2. Connect a CAT6a cable from the local unit to your remote unit.
3. Attach your display device to the remote unit using another DVI cable.
4. Connect your USB devices (keyboard, mouse) to the local unit, ensuring that all devices are powered on.
5. If necessary, connect the 5-VDC power supply to the local unit to ensure optimal performance.
6. Finally, turn on your systems; the extender should automatically detect your devices and deliver flawless output.

Frequently Asked Questions

• What types of cables can I use with the extender? The Black Box ServSwitch Wizard SRX is compatible with CAT6a, CAT6, and CAT5e cables, each offering varying distance capabilities.
• Can I use this extender for high-performance applications? Yes, thanks to its extended profile DDC EDID and capability to carry uncompressed video, this extender is perfect for high-performance applications such as graphic design, medical imaging, and CAD.
• How far can I extend my USB devices? You can extend USB devices up to 196 feet (59.7 m) using the same CAT6a cable used for video transmission.
• Does it support plug-and-play installation? Yes, the ServSwitch Wizard SRX supports plug-and-play setup, requiring no additional software for installation.
• Is the extender rack-mountable? Yes, it can be mounted in a 19" rack, allowing you to organize up to 16 local or remote units conveniently.
