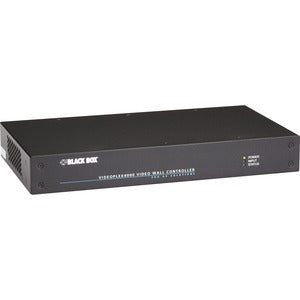

Black Box Videoplex4000: Architectural 4K Video Wall Controller for Non-Rectangular Screen Arrangements

Unleash immersive visuals with the Videoplex4000, a standalone architectural video wall controller designed to turn any space into a dynamic, high-impact display. Outputting high-resolution HDMI video up to 4K, this device drives four monitors per unit and scales to an infinite mosaic when networked with additional units. Ideal for control rooms, retail environments, corporate lobbies, and large-scale signage, the Videoplex4000 combines precision processing with flexible layout capabilities to deliver seamless, edge-blend-ready video walls.

• 4K-ready, multi-output architecture: Each Videoplex4000 delivers crisp 4K-capable HDMI video across four independent outputs, enabling bright, detailed displays with pixel-perfect scaling. The built-in processing ensures consistent color and timing across all screens, delivering uniform brightness and tone across the wall. This setup is perfect for high-traffic signage, event stages, and mission-critical environments where every pixel matters.
• Non-rectangular screen arrangements and mixed orientations: Create eye-catching geometries in any space. Map content across portrait and landscape displays, rotate per monitor, and build complex mosaics—L-shaped layouts, diagonal grids, curved walls, or any custom shape—that maximize wall surface area while preserving image integrity. This flexibility is ideal for storefronts, museums, command centers, and experiential installations that demand bold, unconventional walls.
• Standalone video wall controller and scaler: No PC is required. The Videoplex4000 provides robust on-board processing, scaling, and layout logic, delivering reliable performance even in demanding installations. Real-time scaling and cropping ensure content looks right on every monitor, while timing remains synchronized across all outputs for a cohesive, professional presentation.
• Advanced layout features: Bezel compensation minimizes visible gaps between displays, edge blending creates seamless wide-format images, and warp-to-fit mapping aligns video to irregular boundaries. The mosaic engine supports precise geometry corrections, color consistency, and tailored image geometry, so your wall looks flawless from any viewing angle and distance.
• Easy integration and scalable growth: The Videoplex4000 is designed for straightforward installation with existing AV ecosystems. Start with four displays and scale by adding additional units to build larger, even infinite walls without sacrificing performance or management simplicity. This modular approach keeps installation costs predictable and maintenance straightforward for growing environments.

Technical Details of Videoplex4000

• Outputs: 4 HDMI outputs delivering high-resolution video up to 4K per display
• Processing: Standalone video wall controller and scaler with built-in mosaic engine
• Layout capabilities: Supports non-rectangular screen arrangements and mixed monitor orientations (portrait or landscape per display)
• Image quality and management: Bezel compensation, edge blending, warp-to-fit geometry mapping, and EDID management for display compatibility
• Physical and installation: Compact, stand-alone appliance suitable for desktop, shelf, or rack-mount integration

How to install Videoplex4000

• Plan your wall: determine the number of displays, their orientation (portrait or landscape), and bezel widths to optimize spacing and image quality.
• Mount and connect: position each monitor and connect them to the Videoplex4000’s HDMI outputs. Ensure the video wall is physically secure and cables are routed safely to prevent strain.
• Power and access: plug in the unit and power on. Access the built-in control interface via the on-device menu or a companion software tool to begin configuration.
• Configure the mosaic: define the wall geometry, assign each display’s position and rotation, and apply bezel compensation. Enable edge blending or warp-to-fit as needed to align the image precisely across the entire wall.
• Test and refine: run a test sequence across all displays, verify color uniformity and timing, adjust timing skew if necessary, and save the configuration for quick deployment in future setups.

Frequently asked questions

• Q: What is Videoplex4000?

  A: A standalone architectural 4K video wall controller and scaler that drives up to four HDMI displays per device, with support for complex, non-rectangular screen arrangements and mixed monitor orientations.

• Q: How many displays can I drive with a single Videoplex4000?

  A: Up to four HDMI displays per unit. For larger walls, you can connect multiple Videoplex4000 units to create expansive video walls with greatly increased screen counts.

• Q: Can I create non-rectangular layouts?

  A: Yes. The device is designed to map content across irregular shapes and mixed orientations, enabling creative and immersive wall configurations that fit unique architectural spaces.

• Q: Does Videoplex4000 support 4K video?

  A: Yes. Each HDMI output supports high-resolution 4K playback, maintaining sharp detail across all displays in the wall.

• Q: Is installation difficult?

  A: Not when planned properly. The Videoplex4000 is a purpose-built standalone unit with intuitive layout tools and clear integration pathways with existing AV gear, designed to simplify deployment and ongoing management.

• Q: Can I manage updates and maintenance remotely?

  A: Depending on your deployment, you can leverage built-in remote management features or connected software tools to monitor performance, apply firmware updates, and adjust layouts without on-site visits.
