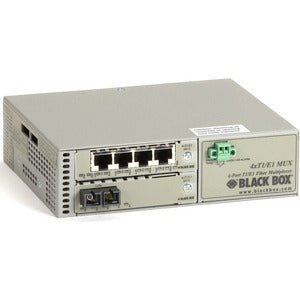

Black Box T1/E1 to Fiber Mux, Single-Mode Duplex SC, 30 km

Black BoxSKU: 2892442

Price:
Sale price$2,818.18

Description

Designed to bridge traditional T1/E1 networks to modern fiber backbones, this Black Box T1/E1 to Fiber Mux delivers dependable, long-haul performance for remote PBX equipment. By extending T1/E1 signals over single-mode fiber up to 30 kilometers with a duplex SC fiber interface, it simplifies campus-scale deployments and remote site connectivity while preserving timing and data integrity. The unit’s built-in diagnostic capabilities—including local loopback on both copper and fiber ports, plus remote fiber loopback and circuit test modes—make commissioning and troubleshooting straightforward. With configurable alarm relay contacts for audio and visual fault notification, you can integrate this mux with existing monitoring and management systems to stay ahead of issues and minimize downtime. Whether you’re expanding a corporate network, supporting a distributed contact center, or linking regional PBX installations, this mux provides a robust, scalable solution for reliable T1/E1 over fiber connectivity.

  • Extends T1/E1 signals over single-mode fiber to remote PBX equipment with a durable, single-mode duplex SC interface, enabling long-haul voice and data transmission up to 30 km without sacrificing signal quality.
  • Local loopback on both copper and fiber ports facilitates fast on-site diagnostics, enabling technicians to verify framing, line coding, termination, and port integrity before field deployment or during routine maintenance.
  • Remote fiber loopback and circuit test modes give operators the ability to validate end-to-end connectivity and service paths from a distance, reducing site visits and accelerating fault isolation across distributed networks.
  • Configurable alarm relay contacts provide reliable fault notification with options for audio/visual alerts and seamless integration with existing monitoring, alerting, or building management systems.
  • Rugged, easy-to-install design tailored for enterprise campuses and remote sites, delivering a scalable bridge between copper T1/E1 networks and fiber backbones while supporting straightforward expansion and management.

Technical Details of Black Box T1/E1 to Fiber Mux

  • Fiber interface: Single-Mode duplex SC connectors for robust long-distance operation
  • Copper interface: T1/E1 ports optimized for reliable copper-side signaling
  • Distance capability: Up to 30 kilometers on Single-Mode fiber, enabling expansive campus networks and remote linkages
  • Loopback capabilities: Local loopback on both copper and fiber ports for quick diagnostics
  • Testing features: Remote fiber loopback and circuit test modes to validate end-to-end paths without on-site access
  • Alarm and notification: Configurable alarm relay contacts for audio/visual fault alerts and integration with monitoring systems
  • Target application: Ideal for extending T1/E1 connections to remote PBX equipment and remote telecom installations

How to Install Black Box T1/E1 to Fiber Mux

  • Plan the link: confirm T1/E1 framing and line coding requirements, verify the fiber path length is within the 30 km specification, and ensure the fiber is of the appropriate Single-Mode type with SC duplex connectors.
  • Prepare the copper side: connect the local T1/E1 equipment to the mux’s copper interface, ensuring correct termination and signal integrity according to your T1/E1 standard (e.g., framing, line coding, and clocking as required).
  • Connect the fiber side: attach the Single-Mode duplex SC fiber pair to the mux’s fiber port and route it to the remote site, connecting the other end to the corresponding fiber interface of the remote equipment or PBX gateway.
  • Configure diagnostic and test modes: enable local loopback on copper and fiber ports as needed for initial testing, and set up remote fiber loopback and circuit test mode to verify end-to-end connectivity from a distance.
  • Set up fault notification: configure the alarm relay contacts to trigger audio/visual alerts or integrate with your network monitoring or building management system, then perform a live fault simulation to confirm alerts are delivered correctly.
  • Power and verify: apply power, check port status indicators, confirm link up on both copper and fiber interfaces, run a circuit test to verify throughput and timing, and document all configuration steps for future maintenance.

Frequently asked questions

  • Q: What is the maximum distance supported by the T1/E1 to Fiber Mux? A: Up to 30 kilometers on Single-Mode fiber.
  • Q: What loopback options are available? A: Local loopback on copper and fiber ports, plus remote fiber loopback for end-to-end verification.
  • Q: Can I customize fault notifications? A: Yes, the device includes configurable alarm relay contacts to provide audio/visual alerts and integration with external monitoring systems.
  • Q: What type of fiber connector is used? A: Single-Mode duplex SC connectors are used for the fiber interface.
  • Q: Is this device suitable for remote PBX deployments? A: Yes, it is specifically designed to extend T1/E1 connections to remote PBX equipment over fiber, enabling reliable long-haul voice solutions.
