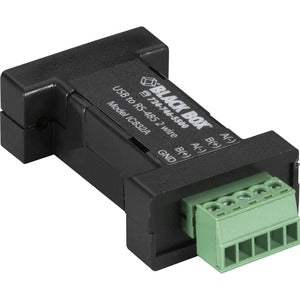

Black Box USB 2.0 To RS485 2-Wire Converter - Terminal Block, 1-Port

The Black Box USB 2.0 to RS485 2-Wire Converter with a convenient terminal block delivers reliable, durable serial communications by bridging modern USB hosts with legacy RS-485 devices. Designed for industrial automation, building management, data acquisition, and remote sensing projects, this compact, single-port adapter makes it simple to network multiple RS-485 devices over a two-wire bus. With plug-and-play USB 2.0 compatibility and robust terminal-block wiring, it’s the ideal solution for engineers, technicians, and developers who need a dependable USB-to-RS485 interface that works right out of the box and travels well between environments.

• Seamless USB to RS-485 conversion: Plug the converter into a USB 2.0 port and connect your RS-485 devices through the built-in terminal block. This setup enables you to extend serial communication to controllers, meters, sensors, or automation devices without replacing existing equipment. The user-friendly design reduces setup time and minimizes the need for extra adapters, cables, or complex wiring schemes.
• 1-port RS-485 with a rugged terminal block: The single RS-485 port is wired through a secure terminal block, allowing clean, field-ready connections that resist vibration and loosening in industrial environments. The terminal block simplifies field wiring—just strip and secure conductors, and you’re ready to deploy in harsh or space-constrained settings.
• Reliable two-wire, half-duplex communication: Built to handle common RS-485 topologies, this converter supports bidirectional data flow over a 2-wire bus in half-duplex mode. This configuration is ideal for multiple devices sharing a single pair of wires, enabling scalable networks for PLCs, sensors, and remote I/O systems while maintaining strong noise rejection and longer cable runs.
• Compact, portable, and easy to integrate: Its slim profile fits neatly into crowded workbenches, control rooms, or portable test rigs. Whether you’re wiring a temporary lab setup or deploying a permanent automation line, this USB-to-RS485 converter provides a straightforward integration path with minimal footprint and fuss.
• Broad compatibility and plug-and-play practicality: The device is designed to work with standard USB hosts and RS-485 devices across a variety of operating systems and software environments. Its simple, driver-lean approach reduces compatibility hurdles and makes it accessible for technicians, IT staff, and developers who rely on stable, predictable serial communications in a wide range of applications.

Technical Details of Black Box USB 2.0 To RS485 2-Wire Converter - Terminal Block, 1-Port

• Interface: USB 2.0
• RS-485 mode: 2-wire, half-duplex
• Ports: 1 RS-485 port
• Connection type: Terminal block for RS-485 wiring
• Power: USB bus-powered (no external power supply required)

How to install Black Box USB 2.0 To RS485 2-Wire Converter

Setting up the USB 2.0 to RS-485 converter is designed to be straightforward and quick. Follow these steps to get your RS-485 network up and running in minutes:

• Step 1 — Connect the hardware: Plug the USB connector into a free USB 2.0 port on your computer, industrial PC, or microcontroller development board. Ensure the USB connection is secure and the host recognizes the device.
• Step 2 — Wire your RS-485 devices: Attach your RS-485 devices to the terminal block, ensuring correct A/B polarity as indicated by device documentation. Tighten terminals securely to prevent vibration or conductor loosening in operational environments.
• Step 3 — Install or verify drivers (if required): In most cases, the converter operates as a standard USB-to-serial bridge and may install automatically. If prompted, allow driver installation from your operating system or vendor support pages. When in doubt, consult the device documentation for recommended driver options and COM port assignments.
• Step 4 — Configure your software: Open your serial communications application and select the appropriate COM port assigned to the USB device. Set RS-485 parameters (baud rate, data bits, parity, and stop bits) according to your network’s specification. For multi-drop configurations, ensure all devices share the same bus settings.
• Step 5 — Test the connection: Send a test command or loopback signal to verify data integrity across the RS-485 network. Confirm that devices respond as expected and that communication remains stable over the required cable length and environment.

Frequently asked questions

• Q: What makes this USB 2.0 to RS-485 converter suitable for industrial use?

  A: The converter provides a durable, compact interface that bridges modern USB hosts with legacy RS-485 devices. Its terminal-block wiring supports secure field connections, and the two-wire RS-485 interface allows multi-point communication across longer distances with good noise immunity, which is essential in factory floors, automation panels, and remote sensing deployments.

• Q: Do I need drivers to use this adapter?

  A: In many cases, the USB to RS-485 converter operates as a standard USB-to-serial bridge and may install automatically on common operating systems. If required, drivers are typically available from the manufacturer or the operating system’s driver repository. Always verify compatibility with your OS and software before purchasing, especially for specialized industrial applications.

• Q: Can multiple RS-485 devices share the same bus with this converter?

  A: Yes. The 2-wire RS-485 standard supports multi-point networks where multiple devices can share a single pair of wires. Ensure proper bus termination and address configuration in your software to manage communications across all devices efficiently and without collisions.
