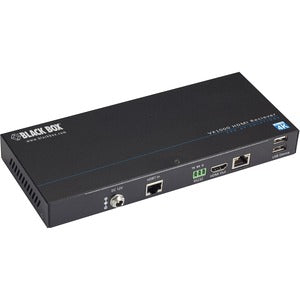

Black Box VX1000 Series Extender Receiver - 4K, HDMI, CATx, USB

Experience professional-grade AV extension with the Black Box VX1000 Series Extender Receiver. Engineered for reliability in control rooms, broadcast environments, digital signage, and edit suites, this device delivers robust 4K video, flexible input switching, and convenient KVM capabilities over a CATx link. Whether you’re building a compact workstation or a multi-display installation, the VX1000 RX simplifies integration with Power over Cable (PoC), USB keyboard/mouse support for basic KVM, and intelligent EDID management. Its design prioritizes dependable performance, easy setup, and seamless operation under demanding conditions.

• Auto switch mode automatically detects VGA or HDMI sources, ensuring seamless source selection without manual intervention and minimizing downtime in critical workflows.
• Delivers high-quality 4K video over CATx with HDMI/VGA input options and analog audio switching, enabling flexible display configurations across long distances.
• True 48V PoC powering allows power to be supplied over the same CATx link, simplifying installation and reducing the number of cables while maintaining reliable operation.
• USB connectivity supports keyboard and mouse for basic KVM functionality, giving you convenient local control for servers, workstations, or presentation setups.
• DIP switch for VGA EDID management provides flexible compatibility with a wide range of displays and sources, helping you optimize color, resolution, and refresh rates for your environment.

Technical Details of Black Box VX1000 Series Extender Receiver

• Product: Black Box VX1000 Series Extender Receiver
• Video support: 4K capability with HDMI and VGA input compatibility; supports HDMI/VGA switching and analog audio pass-through
• Interface: CATx transmission link between transmitter and receiver; USB port for keyboard and mouse; optional PoC power delivery over the CATx link
• Power: True 48V PoC powering with a single power supply required for the system’s operation
• EDID management: DIP switch enables VGA EDID configuration to match display requirements
• Application: Ideal for professional AV deployments including control rooms, broadcast settings, conference rooms, and digital signage installations

how to install Black Box VX1000 Series Extender Receiver

• Plan your installation by selecting the transmitter and receiver locations, ensuring a clean CATx path with minimal interference and suitable clearance for connectors.
• Connect the source device (HDMI or VGA) to the transmitter, and connect the receiver to the display using HDMI or VGA as required by your setup.
• Bridge the TX and RX units with a CATx cable, then connect the RX to the power supply. If you’re using PoC, ensure the CATx link is capable of delivering power to the RX from the transmitter side.
• Attach a USB keyboard and mouse to the RX’s USB port for basic KVM functionality, enabling quick control of connected equipment from the display location.
• Configure EDID using the DIP switch on the RX to optimize compatibility with your display, then power on the devices and verify auto-switching between HDMI and VGA sources.

Frequently asked questions

• Q: What resolutions does the VX1000 Series Extender Receiver support?

  A: The VX1000 Series Extender Receiver is designed to support 4K video delivery over CATx with HDMI and VGA input options, along with analog audio switching to accommodate modern display setups.

• Q: Does it require a separate power supply, or can it be powered via PoC?

  A: The system supports true 48V PoC powering over the CATx link, which can reduce cabling by delivering power from the transmitter to the receiver. A single power supply may still be used for reliability depending on the installation.

• Q: Can I use USB peripherals with this extender?

  A: Yes. The VX1000 Series Extender Receiver includes a USB port to connect a keyboard and mouse for basic KVM operations, enabling convenient local control without direct connection to the host system.

• Q: How does the auto-switching feature benefit my setup?

  A: The auto-switch feature detects whether a VGA or HDMI source is active and routes the signal accordingly, reducing manual adjustments and ensuring continuous operation during presentations or live events.

• Q: What is the purpose of the VGA EDID DIP switch?

  A: The VGA EDID DIP switch lets you tailor EDID settings to match different displays, optimizing color, resolution, and timing to achieve the best possible image quality across devices.
