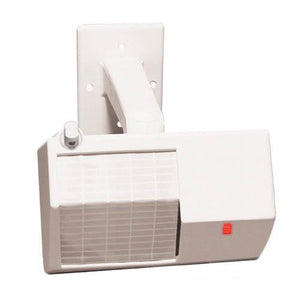

Bosch DS720i Motion Sensor

The Bosch DS720i Motion Sensor is a high‑performance security detector engineered for reliable, wide‑area motion detection in both commercial and residential settings. Engineered with TriTech technology, it blends advanced passive infrared (PIR) sensing with microwave radar to deliver precise detection while minimizing false alarms. Its flexible design supports wall or ceiling mounting and features field replaceable mirrored optics, enabling simple maintenance and long‑term performance. Ideal for lobbies, hallways, large offices, or sensor‑driven automation, the DS720i brings Bosch durability and engineering to your security perimeter.

• TriTech detection for superior accuracy — The DS720i combines cutting‑edge PIR sensing with microwave radar to deliver robust motion detection across varied lighting and environmental conditions, reducing nuisance alarms and missed detections while enhancing overall security reliability.
• Extensive coverage with adaptable patterns — Capable of covering up to 91 meters (300 feet) and offering three different coverage patterns, this detector adapts to different room geometries, ensuring comprehensive protection without blind spots or gaps in coverage.
• Motion Monitor and anti‑masking protection — Built‑in Motion Monitor and anti‑masking features continuously safeguard the sensing area, detecting tampering attempts and obstructions to preserve the integrity of the security perimeter.
• Maintenance‑friendly optics — Field replaceable mirrored optics simplify upkeep, allowing technicians to restore or adjust sensitivity and range quickly without replacing the entire device, reducing downtime and total cost of ownership.
• Versatile mounting for flexible installation — Designed for wall or ceiling mounting, the DS720i integrates discreetly into a variety of architectural environments while delivering optimal sensing coverage and ease of positioning for installers.

Technical Details of Bosch DS720i Motion Sensor

• Detection technology: TriTech PIR and Microwave Detector
• Coverage: Up to 91 meters (300 feet) with three selectable coverage patterns
• Protection features: Motion Monitor and Anti‑masking protection
• Optics: Field replaceable mirrored optics
• Mounting options: Wall or ceiling mount
• Product name: Bosch DS720i Motion Sensor

How to Install Bosch DS720i Motion Sensor

• Plan your installation — Select a location that maximizes the three coverage patterns for the space and minimizes obstructions or reflective surfaces that could cause false alarms. Consider traffic flow and potential sources of interference to optimize performance.
• Prepare for installation — If wiring is required, ensure the power source is properly shut off and that you comply with local electrical codes. Confirm compatibility with your security system or control panel if the DS720i is going to be integrated into an existing setup.
• Mount the detector — Secure the DS720i to a wall or ceiling using the supplied mounting hardware. Align the device so the chosen coverage pattern aligns with the intended sensing area. Make sure the mounting surface is solid and that the device sits level to maintain consistent performance.
• Install and configure optics — If field replaceable mirrored optics are provided, install the optics corresponding to the desired coverage pattern. Ensure that the optics are seated properly and not obstructed by fixtures, furniture, or architectural features that could degrade performance.
• Integrate and test — Connect the DS720i to your security system or controller as required and perform a thorough functional test. Walk the space to verify detection across all three patterns, observe timing and sensitivity, and check for any false alarms. If anti‑masking features are present, verify their response in a controlled test while maintaining safety and compliance.
• Finalize and document — Replace any covers, restore power, and conduct a final sweep of the area to confirm complete coverage. Record the selected pattern, mounting orientation, and any configuration changes for future maintenance or adjustments.

Frequently asked questions

• What is the Bosch DS720i Motion Sensor? The DS720i is a TriTech motion detector that combines PIR and microwave sensing to deliver accurate, wide‑area motion detection. It supports wall and ceiling mounting and features field replaceable mirrored optics for flexible maintenance and long‑term performance.
• How far does the DS720i detect motion? It provides coverage up to 91 meters (300 feet) and offers three selectable coverage patterns, enabling adaptation to different room sizes and layouts while preserving reliable detection.
• What protection features does it include? The DS720i includes Motion Monitor and Anti‑masking protection to detect tampering or obstructions and to maintain the integrity of the sensing field.
• Can the DS720i be mounted on walls or ceilings? Yes. The device is designed for flexible installation on either surface, allowing precise placement to match the space’s architectural and security requirements.
• Are the optics field replaceable? Yes. The mirrored optics are field replaceable, enabling straightforward maintenance and consistent performance over the sensor’s lifespan.
• Is the DS720i compatible with existing security systems? The DS720i is designed to integrate with standard security and automation systems that accept PIR/microwave detector inputs. Verify compatibility with your control panel and system requirements during installation.
