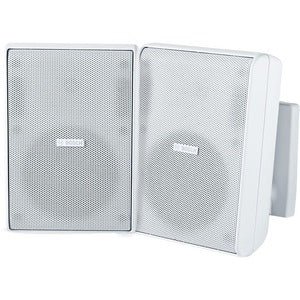

Bosch LB20-PC30-5 2-Way Indoor/Outdoor Ceiling Mountable Speaker – 75 W RMS, White

The LB20-PC30-5 is a compact yet powerful 2-way full-range speaker designed for versatile installations across commercial spaces. Built for both indoor and outdoor environments, this white, surface- or ceiling-mountable unit delivers clear voice and music reproduction with broad, even coverage. Whether you’re provisioning background music in a cafe, paging in a corporate lobby, or reinforcing sound in a small auditorium, the LB20-PC30-5 combines reliable performance with flexible mounting options that blend seamlessly with architectural aesthetics.

• Versatile mounting options: ceiling, surface, and wall mounting enable discreet integration in a wide range of spaces—from intimate lounges to open offices and outdoor walkways.
• Two-way, full-range design: a 5.25" (133 mm) woofer paired with a dedicated high-frequency driver ensures precise midrange and crisp highs for intelligible speech and enjoyable music playback.
• Robust power handling: 75 W RMS (continuous) suitable for moderate sound reinforcement, background music, and paging duties in small to mid-sized venues.
• Clean, white enclosure: a compact, unobtrusive housing that blends with contemporary interiors while withstanding shared-use environments when properly installed.
• Wide, uniform coverage: optimized dispersion minimizes hot spots and dead zones, delivering consistent sound levels across seating areas and reducing listening fatigue for all listeners.

Technnical Details of Bosch LB20-PC30-5

• Power handling (RMS): 75 W
• Speaker type: 2-way full-range
• Woofer size: 5.25" (133 mm)
• Tweeter: 1" dome high-frequency driver
• Mounting options: Ceiling, surface, and wall
• Finish: White
• Impedance: 8 ohms nominal; 70V/100V transformer compatibility not specified in this listing
• Coverage: Wide, uniform dispersion for consistent sound distribution
• Applications: Background music, foreground music, paging, and light sound reinforcement

How to Install Bosch LB20-PC30-5

Installing the LB20-PC30-5 involves selecting the right mounting hardware, wiring correctly, and securing the speaker to achieve optimal coverage and reliability. Follow these guidelines to ensure a safe, high-performance setup that lasts in both indoor and outdoor environments when used with appropriate enclosures and weather-aware mounting.

• Plan placement thoughtfully: Choose locations with minimal obstructions to ensure even sound distribution. Avoid direct exposure to standing water, heavy wind exposure, or locations where the enclosure could be damaged by impact. For outdoor use, pair the speaker with weather-appropriate mounting hardware and protective enclosures as recommended by Bosch.
• Gather the right hardware: Use Bosch-approved mounting brackets or enclosures designed for the LB20-PC30-5. Ensure fasteners are suited to the mounting surface (drywall, concrete, wood, or exterior building materials) and that all hardware is rated for outdoor use if installed outside.
• Prepare the wiring: Run speaker cables from the amplifier or distributed audio system to the installation point, preserving polarity (positive to positive, negative to negative). Use conduit or protective channels as required by code for outdoor installations. Leave extra slack to allow for angle adjustments during final positioning.
• Make secure connections: Connect the LB20-PC30-5 to the correct amplifier channel or distributed network with the appropriate impedance in mind. Use weatherproof connectors and seal terminals if the installation is outdoors or in damp environments. Verify that the system is powered off during wiring to prevent electrical hazards.
• Mount and adjust: Attach the speaker to its mounting bracket, ensuring a firm, level installation. If your mounting allows tilt or dispersion adjustments, set the angle to achieve even coverage across the listening area. Power up the system and perform a listening check, fine-tuning the angle and level for balanced sound and clear intelligibility.

Frequently asked questions

• Is the LB20-PC30-5 suitable for outdoor use? Yes. The model is designed for indoor and outdoor applications. For outdoor deployments, use appropriate weatherproof enclosures and mounting hardware to protect against the elements and to meet local codes.
• What mounting options are available? The speaker supports ceiling, surface, and wall mounting, offering flexible placement to match room geometry and architectural constraints.
• What is the power handling? It accepts up to 75 W RMS, providing ample headroom for many background and light reinforcement scenarios while maintaining clear, intelligible output.
• Do I need an external amplifier? Yes. Like most passive speakers, the LB20-PC30-5 requires an external amplifier or a powered distribution system with correct impedance matching. Check the official datasheet for impedance and recommended amplifier power ranges.
• What makes this Bosch speaker stand out? Its combination of a compact 5.25" driver, two-way full-range design, versatile mounting options, and wide, uniform coverage makes it suitable for a variety of environments—from hospitality and retail to corporate and educational spaces—delivering consistent, high-quality sound across wide areas.
• Is there a recommended configuration for paging and background music? The LB20-PC30-5 is well-suited for mixed tasks. Pair it with a compatible amplifier and, if needed, a simple DSP solution to optimize voice intelligibility for paging while maintaining musicality for background audio.
