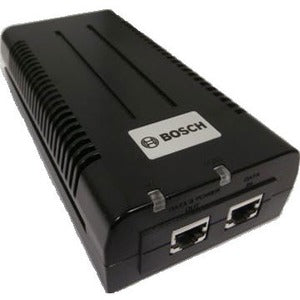

Bosch NPD-9501A 95W Midspan — Single-Port AC In PoH for Bosch MIC Cameras

Experience streamlined, reliable power and data delivery with the Bosch NPD-9501A midspan. This high-power 95W midspan is designed for Power Over HDBaseT (PoH), enabling a single Ethernet cable to carry both network data and camera power. Specifically engineered for Bosch MIC cameras, including the MIC7000, MIC IP Starlight 7000i, and MIC IP Fusion 9000i, the NPD-9501A simplifies complex deployments where mounting locations are distant from network switches. With an AC input and a single output port, this midspan minimizes clutter, reduces installation time, and ensures consistent performance in demanding surveillance environments. Whether you're upgrading an existing Bosch system or planning a new installation, the NPD-9501A delivers dependable power, clean cabling, and robust data transmission to keep critical security operations running smoothly.

• High-Power PoH Delivery: Provides up to 95 W of power over HDBaseT to compatible Bosch cameras, enabling high-end models to operate at peak performance without multiple power adapters or outlets.
• Single-Port HDBaseT Output: One integrated Ethernet + power link carries both data and power, reducing cabling complexity and improving installation aesthetics in restricted spaces.
• AC-In Convenience: Built-in AC input simplifies wiring, supports standard electrical configurations, and ensures reliable start-up even in challenging environmental conditions.
• Wide Camera Compatibility: Specifically recommended for MIC7000, MIC IP Starlight 7000i, and MIC IP Fusion 9000i, delivering a seamless power and data experience for Bosch’s premier surveillance cameras.
• HDBaseT Standard Compliance: Meets HDBaseT specifications for voltage protection, data integrity, and quality of service, ideal for mission-critical video deployments.

Technical Details of Bosch NPD-9501A

• Power Delivery: 95 W midspan designed to support Power over HDBaseT (PoH) for high-demand Bosch cameras.
• Output: 1 x HDBaseT PoH port providing both data and power to the camera end.
• Input: AC In for straightforward installation and reliable startup.
• Supported Equipment: Optimized for MIC7000, MIC IP Starlight 7000i, and MIC IP Fusion 9000i series cameras.
• Technology: Power over HDBaseT (PoH) with HDBaseT-compliant data transmission to ensure compatibility and performance with Bosch networked cameras.
• Application: Ideal for remote camera installations where a single cable run must deliver both signals and power.

How to Install Bosch NPD-9501A

Installing the NPD-9501A is straightforward for experienced integrators. Follow these guidance notes to ensure a reliable setup and optimal performance for your Bosch surveillance system.

• Plan Your Cable Route: Identify the path from the network switch or PoE injector to the camera location. Ensure cable runs comply with HDBaseT length specifications and electrical codes for your area.
• Power and Data Alignment: Connect the NPD-9501A to a suitable AC power source with appropriate protection (fuse/breaker per local code). Route the HDBaseT cable from the midspan output to the Bosch MIC camera.
• Connect to Camera: Attach the HDBaseT cable to the camera’s HDBaseT input port. Verify a snug connection to prevent intermittent power or data loss.
• Verify Network and Power: Power on the system and check the camera initialization sequence. Confirm that the camera receives both data and 95 W of power as indicated by on-camera status or the camera’s software interface.
• Troubleshoot Common Issues: If the camera fails to initialize, re-check cable integrity, verify that the camera model is compatible, and confirm that the AC supply is active and within specifications.
• Compliance and Safety: Ensure installations follow local electrical codes and Bosch installation guidelines. Use proper mounting hardware and cable management to protect the midspan from damage or interference.
• Maintenance: Periodically inspect the connector points, cabling, and enclosure for signs of wear, corrosion, or looseness. Keep the midspan in a dry, cool environment to maximize longevity.

Frequently Asked Questions

• What is the primary function of the Bosch NPD-9501A? It is a high-power midspan that delivers 95 W of PoH to compatible Bosch MIC cameras over a single HDBaseT connection, combining data and power in one cable run.
• Which Bosch cameras are compatible with the NPD-9501A? The midspan is designed to work effectively with MIC7000, MIC IP Starlight 7000i, and MIC IP Fusion 9000i series cameras, among others that support PoH over HDBaseT.
• Do I need a separate power supply for the camera if I use the NPD-9501A? No, the NPD-9501A provides both data and power over a single HDBaseT connection. The camera receives power directly through the midspan.
• What are the advantages of PoH (Power over HDBaseT) in this setup? PoH consolidates power and data on one cable, reducing cabling complexity, improving installation speed, and enabling flexible camera placement without multiple outlets near the camera.
• Can the NPD-9501A be used in outdoor environments? The midspan is designed for professional surveillance installations. For outdoor use, ensure the enclosure and cabling meet environmental requirements and that the unit is installed in a rated enclosure or location appropriate for the climate.
• Is there any maintenance required after installation? Routine inspection of cables, connections, and enclosure integrity is recommended. Confirm electrical connections remain secure and that environmental conditions haven’t affected the unit over time.
