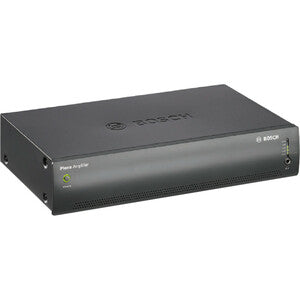

Bosch Plena PLE-1P240-US Amplifier – 240 W RMS

The Bosch Plena PLE-1P240-US Amplifier is a high-performance, plug-and-play power amplifier designed for professional distributed audio installations. Engineered for reliability and ease of use, this single-channel amplifier delivers up to 240 W RMS to either a 70 V constant-voltage distribution system or directly to 4 Ω loudspeakers. Built with premium materials and robust protections, the PLE-1P240-US provides straightforward operation, quick deployment, and dependable sound quality for venues such as classrooms, offices, retail spaces, restaurants, and conference facilities. Whether you’re refreshing an older system or building a new Plena network from scratch, this amplifier is a cost-effective centerpiece that helps you achieve clear, even coverage across multiple zones.

• High-power output for large spaces: 240 W RMS of clean, consistent amplification to drive multiple loudspeakers on a 70 V distributed line or direct 4 Ω loads, enabling scalable coverage in mid-to-large installations.
• Plug-and-play convenience: The PLE-1P240-US is designed for simple integration with Bosch Plena components, reducing installation time and lowering overall project costs while preserving professional-grade performance.
• Flexible 70 V / 4 Ω operation: Supports both constant-voltage distributed audio systems and direct speaker connections, giving installers the flexibility to optimize coverage and impedance for each zone.
• Built-in protections for reliability: Includes thermal protection, short-circuit protection, and DC protection to safeguard the amplifier and connected loudspeakers in demanding environments, helping minimize downtime.
• Rugged, professional build: A durable gray metal enclosure with a compact footprint designed for 1U rack mounting, ensuring a clean, professional installation that stands up to everyday use.

Technical Details of PLE-1P240-US

• Power output: 240 W RMS into 70 V line or direct 4 Ω loads for versatile installation options across multiple zones.
• Input sensitivity: 1 V (typical line-level signal) to drive the amplifier effectively from standard mixer or processor outputs.
• System compatibility: Part of the Bosch Plena family, optimized for seamless integration with Plena ceiling speakers, wall-mounted loudspeakers, and other Bosch distributed audio components.
• Protection features: Thermal protection, short-circuit protection, and DC protection maintain safe operation and reduce the risk of speaker damage in fault or overload conditions.
• Enclosure and finish: Gray metal chassis designed for durability in professional environments; engineered for reliable 1U rack mounting and discreet, unobtrusive placement.
• Design emphasis: Emphasizes cost-effective performance with straightforward capability, delivering essential amplification and protection without unnecessary complexity.

How to Install PLE-1P240-US

Installing the Bosch Plena PLE-1P240-US is a straightforward process that prioritizes safety, proper ventilation, and correct impedance matching. Follow these steps to ensure optimal performance and long-term reliability:

Step 1: Plan your layout. Determine which zones will be driven by the amplifier and decide whether you’ll operate the system in 70 V distribution or use direct 4 Ω connections. Ensure there is adequate ventilation around the amplifier to prevent overheating, and reserve space for cable management and access to the rear connectors.

Step 2: Mount the unit. If you’re using a rack, install the PLE-1P240-US in a standard 1U rack space. Confirm that mounting screws are tight and that the unit sits on a stable surface with clearance for air flow. If rack mounting is not available, place the amplifier on a sturdy shelf away from heat sources and ensure it has unobstructed ventilation.

Step 3: Connect the input signal. Use a suitable balanced or unbalanced source to feed the 1 V input of the amplifier. Route the signal through your mixer, processor, or control system, and verify that all cables are securely terminated to prevent hum or noise. Keep signal cables separate from power lines to reduce interference.

Step 4: Attach speaker connections. For 70 V distribution, connect speaker lines to the 70 V outputs and design the loudspeaker network to achieve the desired total impedance and coverage. If using 4 Ω direct connections, connect the loudspeakers to the appropriate output terminals according to the manufacturer’s impedance guidance. Ensure all drivers are compatible with the expected load and that wiring is correctly labeled for easy maintenance.

Step 5: Power considerations. Verify that the mains supply matches the amplifier’s requirements and that the AC cord is undamaged. Use appropriate circuit protection and avoid daisy-chaining multiple high-power devices from the same outlet. Before powering on, double-check that all connections are secure and that any access panels are closed to prevent accidental contact with live components.

Step 6: Configure and test. If the unit offers any mode selectors (such as 70 V versus 4 Ω), set them to match your installation. Power on the system and perform a careful initial test at a low level. Gradually increase volume while monitoring for distortion, overheating, or abnormal behavior. Use a calibrated test tone to verify stable performance across the intended coverage area and adjust levels at the mixer or processor to achieve balanced room acoustics.

Step 7: Documentation and labeling. Label all cables, zone designations, and control interfaces for future maintenance. Keep a copy of installation notes on-site and maintain a written log of settings for future troubleshooting or upgrades. Proper documentation helps ensure consistent performance as the facility evolves or undergoes occupancy changes.

Frequently asked questions

Q: What is the primary role of the Bosch Plena PLE-1P240-US amplifier?
A: It serves as a high-power, single-channel amplifier designed for Plena distributed audio systems, delivering 240 W RMS to either a 70 V line or direct 4 Ω speakers. It provides reliable, plug-and-play amplification for paging, background music, and announcements in commercial environments.

Q: Is the PLE-1P240-US compatible with 70 V and 4 Ω systems?
A: Yes. The amplifier is designed to operate with both 70 V constant-voltage distributed lines and direct 4 Ω loudspeaker loads, offering installation flexibility across different room sizes and speaker configurations.

Q: Does this amplifier include built-in tone controls or DSP?
A: The PLE-1P240-US focuses on robust amplification and essential protections rather than built-in advanced DSP. For tone shaping or processing, use external mixers, processors, or equalizers in your signal chain before the amplifier input.

Q: What protections does the amplifier have?
A: It includes thermal protection, short-circuit protection, and DC protection to help prevent damage to the amplifier and connected speakers in fault or overload conditions, contributing to long-term system reliability.

Q: How should I rate impedance and speaker load?
A: For 70 V operation, design your speaker network to achieve an appropriate total impedance on the line to maintain efficient operation and avoid overloading the amplifier. For direct 4 Ω operation, ensure the total speaker impedance remains within the amplifier’s rated load to preserve headroom and audio quality.

Q: Can I mount this amplifier in a standard equipment rack?
A: Yes. The PLE-1P240-US is designed for rack mounting and typically occupies a 1U space in a standard 19-inch rack, making it a convenient choice for professional installations where a clean, organized equipment layout is important.

Q: Where can I find the most current specifications?
A: Official specifications are available from Bosch’s Plena documentation and the ec.synnex listing for the PLE-1P240-US, which includes the precise electrical characteristics, mounting options, and compliance details for your region. Always verify the SKU and refer to the latest manufacturer materials when planning a deployment.
