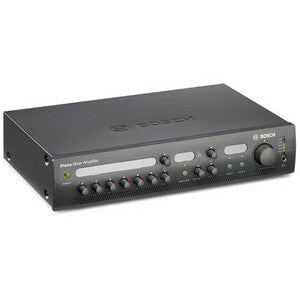

Bosch Plena PLE-2MA240-US Amplifier – 240 W RMS, Charcoal

Experience crystal-clear public address and engaging background music with the Bosch Plena PLE-2MA240-US amplifier. Built for professional installations, this two-channel mixer amplifier delivers 240 watts RMS of dependable power in a compact, durable chassis. The PLE-2MA240-US embodies Bosch’s Plena engineering philosophy: easy operation that frees you to focus on content while the device handles the complexity behind the scenes. Whether you’re outfitting a school auditorium, a retail showroom, a corporate lobby, or a place of worship, this amplifier provides reliable coverage, clean speech, and musical clarity across diverse room sizes and acoustic environments.

• Two-channel mixer amplifier delivering 240 W RMS total output, engineered to provide strong, even coverage for mid-size to large rooms. The built-in mixer enables seamless blending of microphone and line sources, ensuring voices cut through and music remains engaging without overpowering the speech.
• 100V/70V distributed audio compatibility, ideal for long cable runs and scalable installations. This design supports large speaker networks and multi-zone paging with minimal signal loss, making it a versatile backbone for modern public address systems.
• Intuitive controls and easy setup, with dedicated input level trims, master volume, and tone controls. The unit reduces the learning curve for operators while offering precise adjustments to tailor sound to the room and program material.
• Robust protection and reliability, including thermal protection, short-circuit protection, and clip/limiter features. These safeguards help prevent damage during peak activity, while maintaining clear, clean audio even during demanding programs.
• Durable charcoal enclosure with a professional finish and support for 19-inch rack-mount installations. This amplifier integrates cleanly into standard equipment racks and corporate or educational environments, delivering professional-grade performance in a compact footprint.

The Plena platform is designed for dependable performance in real-world environments—from classrooms and theaters to retail floors and worship spaces. The PLE-2MA240-US line-level and mic inputs ensure your announcements, paging, and music playback remain intelligible and natural, even in rooms with challenging acoustics. With Bosch’s emphasis on reliability and user-friendly operation, this amplifier becomes a cornerstone of a scalable, future-ready public-address system.

Technical Details of Bosch Plena PLE-2MA240-US

• Power Output: 240 W RMS
• Channels: 2-channel mixer amplifier
• Output Configuration: 100V/70V distributed line capable
• Inputs: 2 microphone/line input channels plus line input
• Controls: Master volume, input level controls, tonal controls (bass/treble), and built-in limiter
• Protection: Thermal protection, short-circuit protection, output limiter
• Finish/Enclosure: Charcoal housing; 19-inch rack-mountable design
• Dimensions/Weight: Refer to product datasheet for exact specifications

How to Install Bosch Plena PLE-2MA240-US

Planning and safety come first when installing a high-power PA amplifier. Choose a ventilated, dust-free location with access to a reliable power source. If rack-mounting, allow space above and below for airflow. Use proper cable management to keep signal paths clean and avoid interference. Follow local electrical codes and the manufacturer’s guidelines for wiring and grounding. After installation, perform a basic signal flow check to confirm that inputs, outputs, and controls respond as expected.

Step 1: Mount the amplifier in your chosen location — rack, shelf, or dedicated equipment cabinet — ensuring the unit sits level and receives adequate airflow.

Step 2: Connect the power supply to a properly grounded AC outlet. Avoid using extension cords or power strips that could introduce voltage drops or overheating risks.

Step 3: Wire speaker outputs to your 100V/70V distributed speaker network. Use appropriate gauge speaker cables and maintain correct polarity to prevent phase issues. If using direct low-impedance loads, ensure the configuration remains within the amplifier’s rated capability.

Step 4: Attach microphones and line sources to the input channels. Adjust input trims for clean signal without distortion, then set the master level to a level that provides comfortable headroom for speech and music.

Step 5: Balance sound by tuning the tone controls (bass and treble) to suit the room acoustics. Conduct a thorough test with voice and program material, listening for intelligibility, loudness consistency, and any unwanted noise or feedback.

Step 6: Label cables, secure power and signal paths, and confirm that all safety covers or panels are in place. Verify that the installation meets your local regulations and venue guidelines for audio equipment.

Frequently asked questions

Q: What is the primary use case for the Bosch Plena PLE-2MA240-US?

A: It is designed for professional public address and background music applications, delivering reliable 240 W RMS across two channels with 100V/70V distribution. It is well-suited for schools, corporate environments, retail spaces, houses of worship, and similar venues.

Q: Can this amplifier be integrated into an existing Plena system?

A: Yes. The Plena family is designed for modular integration, allowing the PLE-2MA240-US to pair with compatible speakers, control systems, and other Plena components to create scalable, centralized PA solutions.

Q: Is there built-in protection for overheating or short circuits?

A: Yes. The unit includes thermal protection and short-circuit protection, along with output limiting to prevent damage during high-demand periods or accidental miswiring. These features help ensure long-term reliability in demanding environments.

Q: What mounting options are available?

A: The amplifier is designed for rack-mount use, with a 19-inch chassis footprint. It can be integrated into standard equipment racks for a clean, professional installation.
