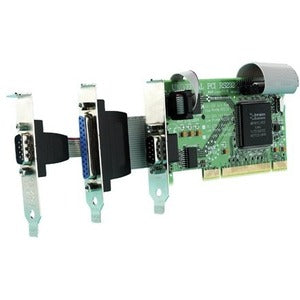

Brainboxes 2-Port RS232 Low Profile PCI Serial Port Card with LPT Parallel Port

Upgrade your desktop with a reliable, space-saving solution that delivers two RS232 serial ports plus a dedicated LPT parallel port in a single, low-profile PCI card. The Brainboxes 2-Port RS232 Low Profile PCI Serial Port Card is designed to meet the needs of modern PCs while preserving compatibility with legacy equipment. With high-performance data transfer, sizable FIFOs, and robust Windows driver support, this card is ideal for industrial automation, POS systems, instrumentation, and any environment requiring dependable serial and parallel communication on a compact PCI card.

• Two RS232 serial ports and one LPT parallel port on a single, low-profile PCI card, enabling seamless coexistence of modern serial devices and legacy printers in a compact footprint.
• High-speed, reliable data transfer with rates up to 115,200 baud, plus 128-byte deep transmit and 128-byte receive FIFOs to reduce data overruns and ensure smooth communication with multi-device setups.
• 1 Mbit/s line drivers deliver strong signal integrity for long cables and noisy environments, helping maintain clean, error-free data transmission in industrial settings.
• Universal PCI compatibility paired with a low-profile form factor makes this card a versatile upgrade for standard desktops, small form factor builds, and workstation environments where space is at a premium.
• Driver support for Windows 32-bit and 64-bit editions, ensuring straightforward installation and broad software compatibility for a wide range of applications.

Technical Details of Brainboxes 2-Port RS232 Low Profile PCI Serial Port Card with LPT Parallel Port

• Ports: 2 x RS232 serial ports; 1 x LPT parallel port
• Interface: PCI (low-profile) card with universal PCI compatibility
• Data rate: Up to 115,200 baud
• FIFOs: 128-byte transmit FIFO; 128-byte receive FIFO
• Line drivers: 1 Mbit/s for robust signal integrity
• Form factor: Low-profile PCI card suitable for compact PC cases
• Operating system support: Windows 32-bit and 64-bit (drivers included)
• Application fit: Ideal for connecting legacy serial devices, printers, instrumentation, and point-of-sale peripherals

how to install Brainboxes 2-Port RS232 Low Profile PCI Serial Port Card with LPT Parallel Port

To install this card, power down your computer and disconnect it from all power sources. Remove the computer case to access the motherboard and available PCI slots. Handle components with care to avoid static discharge.

• Identify a vacant PCI slot that matches the card’s form factor. If you are installing in a small form factor system, verify that there is adequate clearance for the card’s height and backplate.
• Insert the Brainboxes PCI card firmly into the PCI slot, aligning the connector with the slot and seating the card evenly. Secure the bracket to the chassis with the appropriate screw to hold it in place.
• Reassemble the case and reconnect power. Power on the PC and allow the operating system to begin booting.
• Install the drivers. Use the driver package provided for Windows 32-bit and 64-bit systems, or download the latest drivers from Brainboxes if available. Follow the on-screen prompts to complete the installation, then restart the computer if prompted.
• Verify installation. Open Device Manager and look under Ports (COM & LPT) to confirm that two new COM ports (for the RS232 serial connections) and the LPT port are listed. You can rename or reassign COM port numbers if needed through the Windows Port Settings to avoid conflicts with existing devices.
• Test functionality. Use a terminal program or your application software to communicate with devices connected to the two RS232 ports and the LPT parallel port. Check for reliable data transmission and printer communication to ensure the card is operating correctly in your environment.

Frequently asked questions

• What ports does this card provide? It provides two RS232 serial ports and one LPT parallel port, all on a single low-profile PCI card for convenient multi-device connectivity.
• What data rate can I expect? The card supports data transfer rates up to 115,200 baud, with 128-byte transmit and 128-byte receive FIFOs to help manage data flow and reduce overruns.
• What about signal quality and cable length? The integrated 1 Mbit/s line drivers help maintain signal integrity across typical serial cable runs found in desktops, small form factor PCs, and industrial setups.
• Which operating systems are supported? The card includes drivers for Windows 32-bit and 64-bit editions, making it compatible with a broad range of Windows deployments. For non-Windows environments, check compatibility with your platform-specific drivers.
• Is this card suitable for small form factor PCs? Yes. The low-profile PCI design is specifically intended for compact chassis while delivering full functionality for serial devices and printers.
• How many COM ports will appear after installation? You can expect two new COM ports corresponding to the two RS232 serial ports, in addition to the LPT port. The exact COM numbers depend on your system configuration and existing devices.
