Description

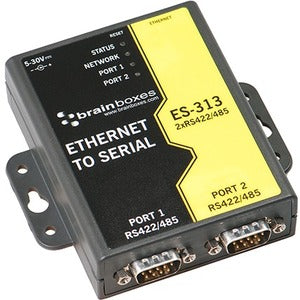

Experience enterprise-grade reliability for serial communications with the Brainboxes 2 Port RS422/485 Ethernet to Serial Adapter. This compact, rugged device server brings two independent RS422/RS485 serial ports onto your Ethernet network, delivering ultra-stable data transfer across factory floors, data centers, and field installations. With baud rates up to 1,000,000 and 1 Mbit/s line drivers, you gain the speed and precision necessary for time-critical control loops, telemetry, and high-speed data logging. The ES range is designed for straightforward deployment in mixed environments and offers broad compatibility with Windows, Linux, and macOS systems. Whether modernizing legacy equipment or enabling remote supervision of distributed sensors, this two-port Ethernet-to-serial adapter provides dependable access to serial devices without the complexity of direct wiring. Its simple configuration and robust durability help minimize downtime, while the compact metal enclosure ensures reliable operation in industrial settings. Brainboxes focuses on delivering “instant networked serial ports,” so you can transform any legacy serial device into a reachable network resource in minutes rather than hours or days.
- Two independent RS422/RS485 serial ports designed for flexible wiring and easy installation, including RS485 half-duplex operation for robust multi-point networking.
- High-performance data transfer with rates up to 1,000,000 baud and 1 Mbit/s line drivers to support time-sensitive applications and rapid data collection.
- Ethernet device server capability enables remote access and control over standard TCP/IP networks, enabling seamless integration into existing IT infrastructure.
- Plug-and-play deployment within the Brainboxes ES range, offering straightforward configuration, reliable operation, and instant networked serial ports on demand.
- Versatile application compatibility for industrial automation, data logging, POS systems, remote sensors, and SCADA environments, with broad OS support and network-friendly management.
Technical Details of Brainboxes 2 Port RS422/485 Ethernet to Serial Adapter
- Ports: 2 x RS422/RS485 serial ports
- Data rate: Up to 1,000,000 baud
- Line drivers: 1 Mbit/s capability
- Interface: Ethernet 10/100 Mbps with TCP/IP networking
- Configuration: Supports RS422/RS485 signaling with flexible mode selection and IP-based access
How to install Brainboxes 2 Port RS422/485 Ethernet to Serial Adapter
- Unbox the device and mount it in a suitable location on your network, ensuring proper ventilation and clearance for cable connections.
- Connect the Ethernet port to your LAN or router using a standard RJ-45 Ethernet cable.
- Attach your RS422/RS485 devices to Port 1 and Port 2 using shielded twisted-pair cabling, following the correct wiring for RS422 or RS485 as required.
- Power on the adapter and obtain an IP address via DHCP or assign a static IP address through the accessible configuration interface.
- Access the device’s configuration page using a web browser or your preferred network management tool, then configure each serial port’s parameters (baud rate, data bits, parity, stop bits) and select the appropriate RS422 or RS485 mode for each port.
- Test the serial connections using a terminal program on a connected host computer. Verify data transmission, acknowledgments, and error handling, and adjust settings as needed for optimal performance.
- Save the configuration and create any necessary port mappings or tunnel settings on your host systems to enable seamless remote access to the serial ports.
Frequently asked questions
- What does this Brainboxes adapter do? It converts Ethernet network access into two RS422/RS485 serial ports, enabling remote control and monitoring of serial devices over LAN or WAN.
- What baud rates are supported? The device supports data rates up to 1,000,000 baud, suitable for high-speed serial communication.
- Are RS422 and RS485 modes supported? Yes, the adapter provides configurable support for RS422 and RS485 signaling, including half-duplex RS485 operation where appropriate.
- Can I manage the device remotely? Yes, you can configure and monitor the ports over standard TCP/IP networks, typically via a web-based interface or compatible management tools, depending on your setup.
- Is it compatible with major operating systems? Brainboxes devices are designed for cross-platform compatibility and work with Windows, Linux, and macOS environments when used with standard serial terminal software or driver support.
