Description

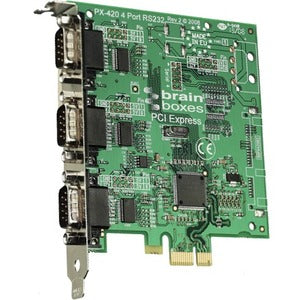

The Brainboxes 3 Port RS232 PCI Express Serial Card is a robust expansion that converts a modern PC’s PCI Express slot into a powerful, multi-port RS-232 serial interface. Designed for reliability in professional settings and friendly enough for hobbyists, this PCIe card puts three independent RS-232 channels onto a single board, enabling you to connect multiple legacy devices, sensors, industrial controllers, or POS peripherals without adding extra PCI slots or external hubs. With a focus on performance and compatibility, the card supports data transfer rates up to 921,600 baud per port, generous 128-byte deep transmit and receive FIFOs, and 1 Mbit/s line drivers, delivering dependable, real-time serial communication even in demanding environments. Engineers, technicians, and developers will appreciate the straightforward integration, predictable timing, and broad software compatibility that make it easy to bring aged equipment into a modern Windows-based workflow. Whether you’re upgrading a factory workstation, building a data logger, or expanding a point‑of‑sale system, this Brainboxes card offers a practical, scalable RS-232 solution that stays responsive under load and integrates cleanly with existing serial applications. The card’s PCI Express form factor and rugged connectors are paired with established signaling standards, ensuring long-term compatibility with a wide range of serial devices and software. In short, the Brainboxes 3 Port RS232 PCI Express Serial Card is a dependable, high-performance expansion that unlocks the potential of legacy hardware while maintaining the simplicity and reliability you expect from today’s PC infrastructure.
- Three RS232 ports on a single PCI Express card provide a compact, scalable expansion that frees up motherboard slots while supporting a broad ecosystem of serial peripherals. Each port appears as an individual serial channel to software, so you can address devices separately from a central PC or industrial controller. The card is designed for easy integration into existing enterprise or hobbyist setups, reducing cable clutter and simplifying inventory management. With independent port channels, you can configure each one for different devices or applications, enabling parallel data streams without contention.
- Data transfer rates up to 921,600 baud per port ensure fast communication with devices that generate or require higher data throughput. This makes the Brainboxes card ideal for high‑speed instrumentation, data logging, and peripherals that rely on timely serial data transfers. The elevated baud range translates into shorter transmission times for large data blocks and more responsive control loops, helping to keep your system in sync even when multiple devices communicate concurrently.
- 128-byte deep transmit and 128-byte deep receive FIFOs buffer data at the hardware level, dramatically reducing the risk of data loss during bursts or when several ports are active. This buffering works in harmony with efficient driver software to maintain smooth data flow, even when the host system is under CPU load or when serial traffic is bursty. The result is steadier performance, fewer dropped bytes, and improved reliability for time‑sensitive applications such as telemetry, medical devices, or industrial automation.
- 1 Mbit/s line drivers provide strong signal integrity over typical RS‑232 cabling, enabling longer cable runs and more reliable operation on factory floors or machine rooms. The drivers help maintain clean voltage levels, minimize susceptibility to noise, and support robust communication across devices that are physically distributed. This makes the card suitable for real‑world deployments where cables may traverse short distances or navigate electrically noisy environments while maintaining consistent performance.
- Windows drivers for 32‑bit and 64‑bit operating systems are included, facilitating straightforward setup on modern desktops and servers. The driver package integrates with standard Windows tools and workflows, supports common serial configurations (baud rate, data bits, parity, stop bits, flow control), and is designed to deliver predictable COM port behavior across multiple software environments. This convenience is particularly valuable in mixed-OS offices or labs where dependable Windows compatibility accelerates deployment and reduces troubleshooting time.
Technical Details of Brainboxes 3 Port RS232 PCI Express Serial Card
- Ports: 3 RS-232 serial interfaces
- Interface: PCI Express card (PCIe) for modern motherboards
- Data rate: Up to 921,600 baud per port
- FIFO buffers: 128-byte transmit, 128-byte receive
- Line drivers: 1 Mbit/s
- Operating system support: Windows 32-bit and 64-bit
- Compliance: Standard RS-232 signaling for compatibility with a wide range of devices
How to install Brainboxes 3 Port RS232 PCI Express Serial Card
Preparing to install the Brainboxes 3 Port RS232 PCI Express Serial Card is straightforward. Begin by powering down your computer, unplugging it from the power source, and opening the chassis to access the motherboard. Identify a free PCI Express slot—preferably a small PCIe x1 slot—to accommodate the card. If needed, remove the slot cover at the back of the case. Carefully align the card with the slot and press firmly until it seats fully, then secure the bracket with a screw to ensure the card remains stable during operation. Once installed, reassemble the case and reconnect power. Power on the PC and install the Windows drivers that accompany the card or download the latest driver package from the manufacturer. After installation, reboot if prompted so Windows can finalize device initialization. Open Device Manager to verify three new COM ports appear, noting their assigned numbers for your software configuration. Connect your RS-232 devices to the ports using appropriate cables and confirm pinouts (RS-232 signaling) match the devices you’re controlling. Configure each port in your applications with the correct serial settings (baud rate, data bits, parity, stop bits, and flow control) and test communications with a terminal program or the device software. If you encounter issues, verify cable integrity and length, ensure you are not assigning the same COM port to multiple devices, and confirm the driver is correctly installed. For longer runs or electrically noisy environments, consider shielded cables and proper grounding to maximize signal integrity. Periodically check for driver updates to maintain compatibility with newer Windows releases and to benefit from any performance or stability improvements offered by Brainboxes.
Frequently asked questions
- Q: How many RS232 ports does this Brainboxes card provide? A: It provides three RS232 serial ports on a single PCI Express card.
- Q: What is the maximum baud rate supported? A: Up to 921,600 baud per port for high‑speed serial communication.
- Q: Which interface does it use? A: It uses a PCI Express (PCIe) interface to connect to the motherboard.
- Q: Which operating systems are supported by the drivers? A: Drivers are provided for Windows 32-bit and 64-bit operating systems.
- Q: Are there any special considerations for long cable runs? A: Use shielded RS‑232 cables and proper grounding, and take advantage of the 1 Mbit/s line drivers for better signal integrity.
