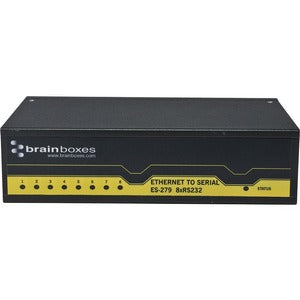

Brainboxes 8 Port RS232 Ethernet to Serial Adapter

The BrainBoxes 8 Port RS232 Ethernet to Serial Adapter is a versatile, high-performance device server that brings robust, scalable serial connectivity to modern networks. Designed for industrial environments and demanding automation tasks, this 8-port RS232 gateway bridges legacy serial equipment with Ethernet, enabling centralized control, remote access, and seamless integration into TCP/IP networks. Whether you’re managing multiple PLCs, sensors, or legacy gear, this adapter consolidates serial points into a single, manageable network interface while preserving data integrity and low latency across every port.

• Eight RS232 serial ports provide scalable, plug-and-play serial expansion across Ethernet networks, enabling centralized control of multiple serial devices—from industrial sensors to legacy equipment. Each port can be independently configured to suit diverse applications, giving you granular control over data flow and device communication.
• High-performance baud rate support up to 1,000,000 baud, including widely used standards such as 9,600; 115,200; 230,000; 921,600, and user-definable options for custom applications. This broad range ensures compatibility with a wide variety of host devices and software stacks, reducing the need for adapters or reconfigurations in mixed environments.
• 1 Mbit/s line drivers deliver consistent, low-latency serial signals across longer cable runs and busy networks, minimizing timing jitter and data errors. This capability is crucial for time-critical processes, real-time monitoring, and dependable device control in automation and data acquisition systems.
• Ethernet connectivity with TCP/IP-based remote access makes integration into existing IT and OT networks straightforward. You can remote-desktop into the device, monitor port status, and manage configurations from a central location, improving efficiency and reducing on-site maintenance visits.
• Rugged industrial-grade hardware with robust management features, secure configuration options, port isolation, and a user-friendly interface. The adapter is built to endure harsh environments and continuous operation, delivering reliable performance in manufacturing floors, laboratories, and control rooms where uptime matters.

Technical Details of BrainBoxes 8 Port RS232 Ethernet to Serial Adapter

• Ports: 8 x RS232 serial ports for parallel, multi-device serial communication over a single Ethernet connection.
• Baud rates: Up to 1,000,000 baud with standard values including 9,600, 115,200, 230,000, 921,600, and user-definable options to suit various devices and applications.
• Data rate and line drivers: 1 Mbit/s line drivers to support stable, high-speed serial signaling across networks and longer cable lengths.
• Connectivity: Ethernet interface enabling TCP/IP-based remote access to all eight serial ports, allowing centralized management and control from networked hosts.
• Management and compatibility: Web-based or standard management interfaces (where available) for port mapping, status monitoring, and configuration; designed for compatibility with common operating systems and network architectures in industrial settings.
• Source of specifications: Specifications pulled from the vendor's database (UPC/SKU reference) on ec.synnex.com to ensure accurate product details and compatibility across distribution channels.

How to install BrainBoxes 8 Port RS232 Ethernet to Serial Adapter

• Unpack and place the device in a suitable location with access to both your Ethernet network and the serial devices connected to each RS232 port. Ensure power is available and the unit is within comfortable reach for maintenance and monitoring.
• Connect the eight RS232 devices to the corresponding serial ports on the adapter, ensuring correct port mapping for your application so that each device communicates with the intended host software or control system.
• Connect the adapter to your Ethernet network using a standard RJ-45 Ethernet connection. Power on the unit and verify it boots to a stable state before proceeding with configuration.
• Access the device’s management interface via the assigned IP address using a web browser or supported management tool. Configure network settings (IP address, gateway, DNS if required) and establish port mappings or virtual COM configurations to match your host applications.
• Test connectivity from a host computer or industrial PC. Open your serial communication software and verify each port is reachable, baud rates are correctly applied, and data is transmitted without errors. Save all configurations and monitor performance from the management interface to ensure ongoing reliability.

Frequently asked questions

• Q: How many serial ports does this adapter provide? A: Eight RS232 serial ports are available on the BrainBoxes 8 Port RS232 Ethernet to Serial Adapter, designed for multi-device control and data collection over a single network.
• Q: What baud rates are supported? A: The adapter supports up to 1,000,000 baud, with common values such as 9,600; 115,200; 230,000; 921,600, plus user-definable options for custom setups, ensuring broad compatibility with legacy and modern equipment.
• Q: Can I access the serial ports remotely over a network? A: Yes. The device includes Ethernet/TCP/IP connectivity that enables remote access and management of all eight ports from networked hosts, improving flexibility and uptime for distributed systems.
• Q: How is the device managed? A: Management is typically via a browser-based interface or supported management software, offering port mapping, status monitoring, and configuration options to simplify deployment and ongoing maintenance.
• Q: What environments is this adapter ideal for? A: Ideal for industrial automation, SCADA, data logging, lab environments, and any scenario requiring reliable, high-port-count RS232 connectivity over Ethernet with centralized control and monitoring.
