Description

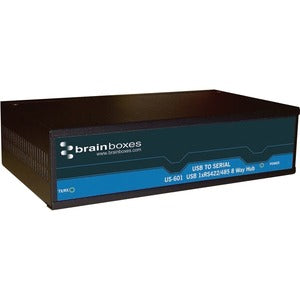

Brainboxes 8-Port RS422/485 USB to Serial Multi Drop Hub
Meet the Brainboxes 8-Port RS422/485 USB to Serial Multi Drop Hub — a high-performance USB-to-serial solution engineered for multi-bus environments where multiple serial devices must connect to a single host. This compact hub multiplexes one RS422/485 serial port eight times, delivering reliable, scalable communication for data acquisition, industrial automation, and embedded system projects. Designed to maximize throughput without compromising reliability, it’s the ideal answer when you need to expand serial connectivity on laptops or PCs without juggling multiple adapters.
- Eight RS422/485 serial ports multiplexed from a single USB interface, enabling scalable multi-device communication while keeping your desk tidy and your host software simple.
- High-speed data transfer up to 921,600 baud per channel, ensuring fast, real-time data exchange for demanding serial applications and time-sensitive control tasks.
- 128-byte transmit FIFO and 256-byte receive FIFO per channel to smooth out data bursts, minimize latency, and reduce the likelihood of data loss in busy networks.
- 1 Mbit line drivers provide strong signal integrity across longer cables and noisier environments, delivering dependable performance in industrial and laboratory settings.
- Plug-and-play USB connectivity with a compact, rugged form factor designed for use with a laptop or PC, whether in the field, in the lab, or on the production floor.
Technical Details of Brainboxes 8-Port RS422/485 USB to Serial Multi Drop Hub
- Ports: 8 RS422/485 serial channels multiplexed from a single USB connection
- Interface: USB-to-serial hub providing eight independent serial channels for multibus setups
- Data rate: Up to 921,600 baud per channel for high-speed serial communications
- Transmit FIFO: 128 bytes per channel
- Receive FIFO: 256 bytes per channel
- Line drivers: 1 Mbit per second signaling capability
- Application: Optimized for multibus configurations and scenarios requiring shared serial resources
- Compatibility: Designed to connect to a laptop or PC via USB for flexible, portable use
How to install Brainboxes 8-Port RS422/485 USB to Serial Multi Drop Hub
- Connect the hub to an available USB port on your computer. If prompted, allow the installer to run and follow the on-screen instructions to install the required drivers.
- Once installed, the hub exposes eight RS422/485 serial ports to your operating system. Identify these ports in your terminal program or device manager and configure each with the desired COM or device settings.
- Set the serial parameters for each port (baud rate, data bits, parity, stop bits) according to the requirements of the devices you are connecting, ensuring consistent communication across channels.
- Test communication by sending and receiving data across one or more ports to verify stability and performance under typical workloads, adjusting timing or buffer settings if necessary.
- For ongoing use, keep drivers up to date and avoid removing the hub while data transfers are active to minimize the risk of data corruption.
Frequently asked questions
-
Q: How many RS422/485 ports does this hub provide?
A: Eight independent RS422/485 serial channels multiplexed from a single USB connection. -
Q: What is the maximum data rate supported?
A: Up to 921,600 baud per channel, enabling fast, real-time serial communication for multiple devices. -
Q: What are the FIFO sizes?
A: Each port features a 128-byte transmit FIFO and a 256-byte receive FIFO to improve throughput and reduce data loss in busy networks. -
Q: Can this hub work with my laptop?
A: Yes — it is designed to connect to a laptop or PC via USB for portable, scalable serial connectivity. -
Q: What scenarios is this device best suited for?
A: Ideal for multibus applications, data acquisition systems, industrial automation, and other setups requiring multiple RS422/485 serial links from a single computer.
